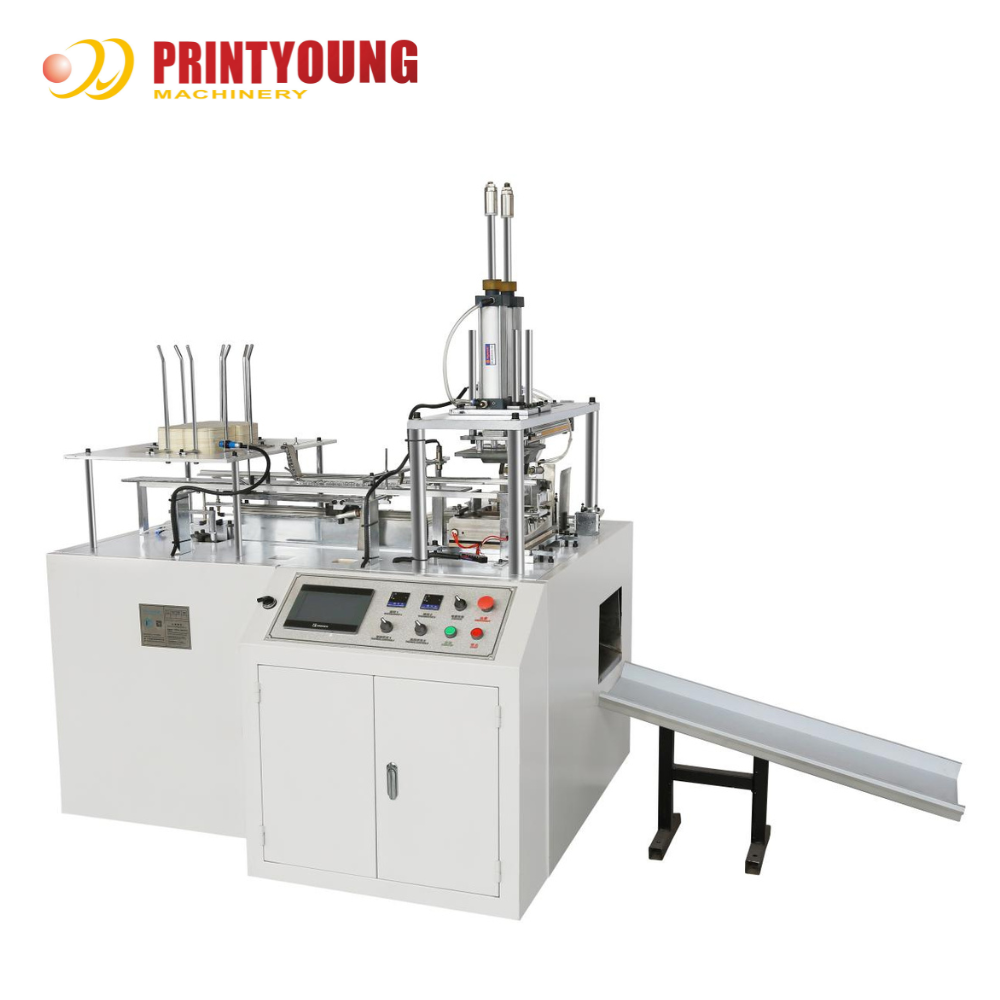

FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine

FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: FBJ-C
Minimum Order Quantity: 1 Set
Price: USD 8000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Production Capacity: 35 ~ 45 Times/min Maximum Size: 350 * 450 Mm
Max. Paper Convey Width: 240 Mm Suitable Material: 100 ~ 400 G/m² PE (PE Coated Paper)
Total Power: 4 Kw Total Weight: 0.8 T
Overall Dimension: 1500 * 1300 * 2000 Mm Working Air Source: Air Pressure 0.4 ~ 0.5 MPa (need To Buy Compressor)

FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
FBJ-C Automatic Paper Bowl Making Machine
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
Technical Parameters
Type
FBJ-C
Production Capacity
35 ~ 45 times/min
Maximum Size
350 * 450 mm
Max. Paper Convey Width
240 mm
Suitable Material
100 ~ 400 g/m² PE (PE coated paper)
Total Power
4 kw
Total Weight
0.8 T
Overall Dimension
1500 * 1300 * 2000 mm
Working Air Source
air pressure 0.4 ~ 0.5 MPa (need to buy compressor)
Configuration
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
Paper passing and paper suction through mechanical transmission,high speed,energy saving,stability,easy operation.
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
Mechanical operated by microcomputer control and detection,the main electrical control system is imported products,stable and durable.
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
The automatic paper forming equipment has the advantages of high speed and convenient operation.This model uses a self-contained hot air generator for single PE coated paper. Imported Parker rodless cylinders are used.The clamping cylinders are imported UNIQUC cylinders.The mechanical movement is smooth and accurate,and the collector has the function of collecting and counting.
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
The equipment installation molds are all made of aluminum alloy molds,which are processed by computer milling and wire cutting to ensure the precision of the mold, improve the molding quality of the products,and prolong the life of the mold.The aluminum alloy material has fast heat conduction and reduces heat loss,while the temperature control switch stabilizes the mold temperature,saving energy.
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
The working speed of the equipment is currently 50 times/minute.It is the leading domestic level.It has automatic systems such as feeding monitoring,paper feeding monitoring,molding monitoring,collection monitoring,etc.if appear fault machine will stop and alarm.
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making MachineFBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making MachineFBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making MachineFBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
FBJ-C PLC Controlled High-Speed Automatic Paper Bowl Lunch Box Making Machine
