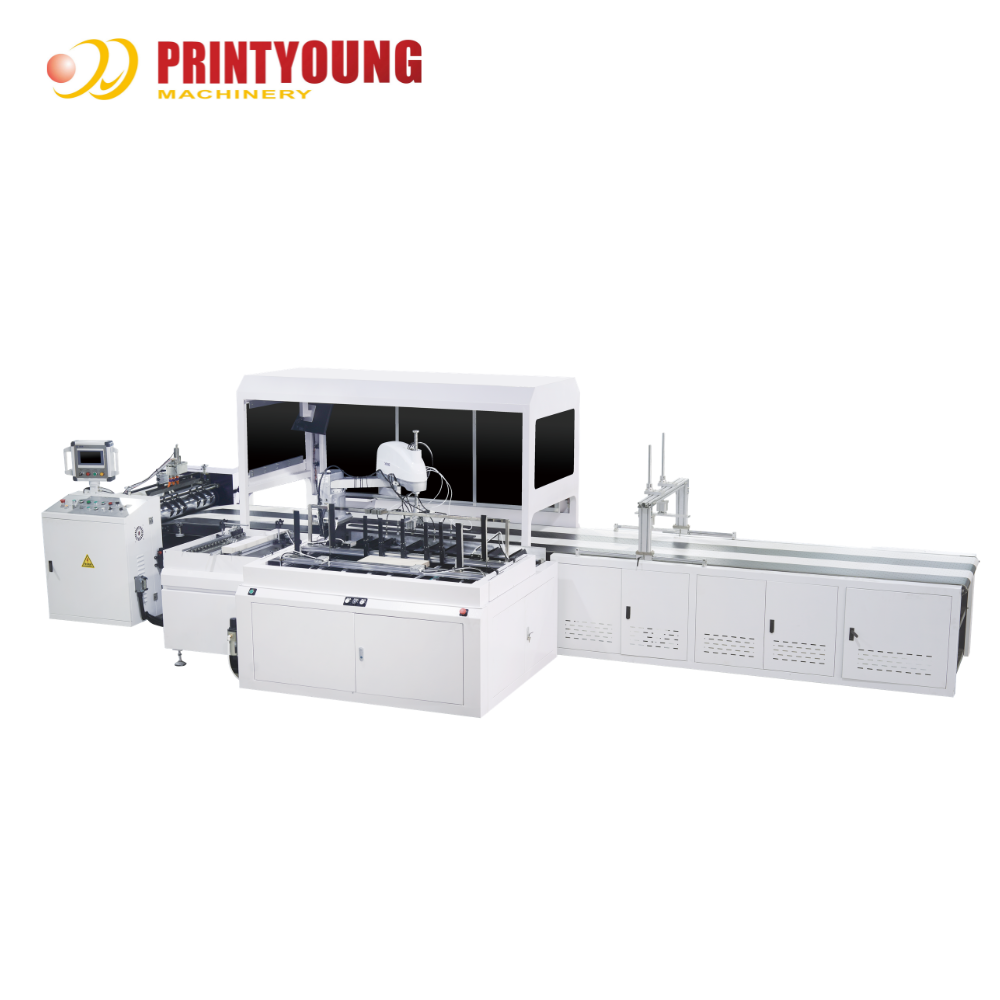

Name: PRY-HKS700+C900 Automatic Positioning Machine for Case & Rigid Box Dual Use with Yamaha Manipulator Rigid Box Positioning Cabin
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-HKS700+C900
Price: 32850 USD
Availability: InStock

PRY-HKS700+C900 Automatic Positioning Machine for Case & Rigid Box Dual Use with Manipulator

Description

The dual-purpose visual positioning machine is widely applicable to the automated production of two-piece rigid boxes and hardcover shell products,covering 3C electronic packaging,high-end gift packaging,cosmetic boxes,shoe and apparel packaging,hardcover book shells,luxury product packaging and other fields.It is compatible with both rigid box and case production lines,matching with corner pasting and forming equipment to form an integrated intelligent production process,suitable for mass production and multi-variety customized mixed production.

Features

Integrating machine vision technology,servo motion control technology and robotic arm collaborative operation technology,the visual positioning machine for two-piece boxes realizes the upgrading from traditional mechanical fixed positioning to intelligent flexible positioning.It solves the pain points of low accuracy,poor flexibility and complicated model replacement of traditional positioning equipment,and provides high-precision,high efficiency and stable positioning solutions for the modern packaging box manufacturing industry, helping enterprises improve product quality and production efficiency.

* Dual-scene High-precision Positioning:Adopting exclusive adaptive visual calibration algorithms for boxes and shells,the repeated positioning accuracy reaches ±0.05mm to ±0.1mm.It ensures precise bonding and neat edges for two-piece boxes,and realizes flat and wrinkle-free lamination for hardcover shell face papers,fully meeting high-standard packaging production requirements.
* High-efficiency Integrated Automatic Production:The intelligent dual-mode recognition and robot collaboration structure supports continuous and fast switching production of boxes and shells.It can be seamlessly connected with automatic gluing,corner pasting,laminating and forming processes,realizing integrated automatic production of two-piece boxes and hardcover shells,and significantly improving the overall line efficiency.
* Stable Operation & Low Comprehensive Cost:The optimized mechanical structure and mature dual visual control system ensure long-term stable operation of dual-scene production.Built-in automatic deviation compensation function corrects minor position errors in real time,reducing manual debugging and maintenance costs.One machine for two purposes effectively saves equipment investment and workshop space compared with purchasing separate box and shell positioning machines.
* Simple Operation and Easy Learning:Equipped with an intuitive human-computer interaction system,the operation logic is simple and clear.Workers can master model switching,parameter adjustment and equipment debugging in a short time,lowering the threshold of equipment use.

Working Process

For Box For Case

Technical Parameters

Model	PRY-HKS700
Machine Size	7500 * 5000 * 2000 mm
Machine Weight	3400 kg
Power	380V / 16kw
Air Pressure	20L/min 0.8MPa
Positioning Accuracy	± 0.1 mm
Case Positioning
Paper Length	100mm ≤ L ≤ 1000mm
Paper Width	80mm ≤ W ≤ 740mm
Grey Board Length	30mm ≤ L ≤ 960mm
Grey Board Width	60mm ≤ W ≤ 500mm
Grey Board Thickness	1 ~ 4 mm
Mid Spine Width	≥ 10 mm
Paper Thickness	80 ~ 250 gsm
Speed	≤ 26 pcs/min
Box Positioning-Single Positioning
Box Length	50mm ≤ L ≤ 600mm
Box Width	50mm ≤ W ≤ 400mm
Box Height	10mm ≤ H ≤ 150mm
Paper Length	100mm ≤ L+2H+2Fold-in ≤ 1000mm
Paper Width	80mm ≤ W+2H+2Fold-in ≤ 740mm
Paper Thickness	80 ~ 250 gsm
Speed	≤ 26 pcs/min
Box Positioning-Double Positioning
Box Length	50mm ≤ L ≤ 400mm
Box Width	50mm ≤ W ≤ 200mm
Box Height	10mm ≤ H ≤ 120mm
Paper Length	100mm ≤ L+2H+2Fold-in ≤ 1000mm
Paper Width	80mm ≤ W+2H+2Fold-in ≤ 355mm
Paper Thickness	80 ~ 250 gsm
Speed	≤ 40 pcs/min

Automatic four side covering machine is used to make hardcovers,notebook covers,desk calendars,hanging calendars,book-type boxes,lever arch files and irregular covers, etc. positioned well issue paper and cardboard,through the re-press,fold both sides of edge, pressure angle,fold edges of front and back,it can fold four sides automatically. Not only high precision,high speed,and fold the angles beautiful,fold the sides perfectly.This machine is the preferred equipment mass production of hardcover case.

Model	PRY-C900
Max. Paper Size	450 * 900 mm
Min. Paper Size	90 * 150 mm
Paper Thickness	1 ~ 3 mm
Speed	0 ~ 20 pcs/min
Power	2kw 220V
Pressure	≥ 0.6 MPa
Dimension	2480 * 1140 * 1380 mm
Machine Weight	1100 kg

Applications

Hardcover book shells,rigid notebooks,file folders,calendars,high-end gift boxes,rigid two-piece boxes,wine boxes,cosmetic boxes,electronic product rigid packaging and other rigid shell products.

Tag:

Place of Origin:	China
Brand Name:	PRINTYOUNG
Certification:	CE
Model Number:	PRY-HKS700+C900

Minimum Order Quantity:	1 Set
Price:	USD 32850 Set
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	30 Sets per Month

Model:	PRY-HKS700	Machine Size:	7500 * 5000 * 2000 Mm
Machine Weight:	3400 Kg	Power:	380V / 16kw
Air Pressure:	20L/min 0.8MPa	Positioning Accuracy:	± 0.1 Mm
