Home ProductsPaper Processing MachineryPRY-CS620B Automatic High Speed Rigid Box Making Machine for Carton/Paper 380V 48 Pcs/Min 1 Year Warranty

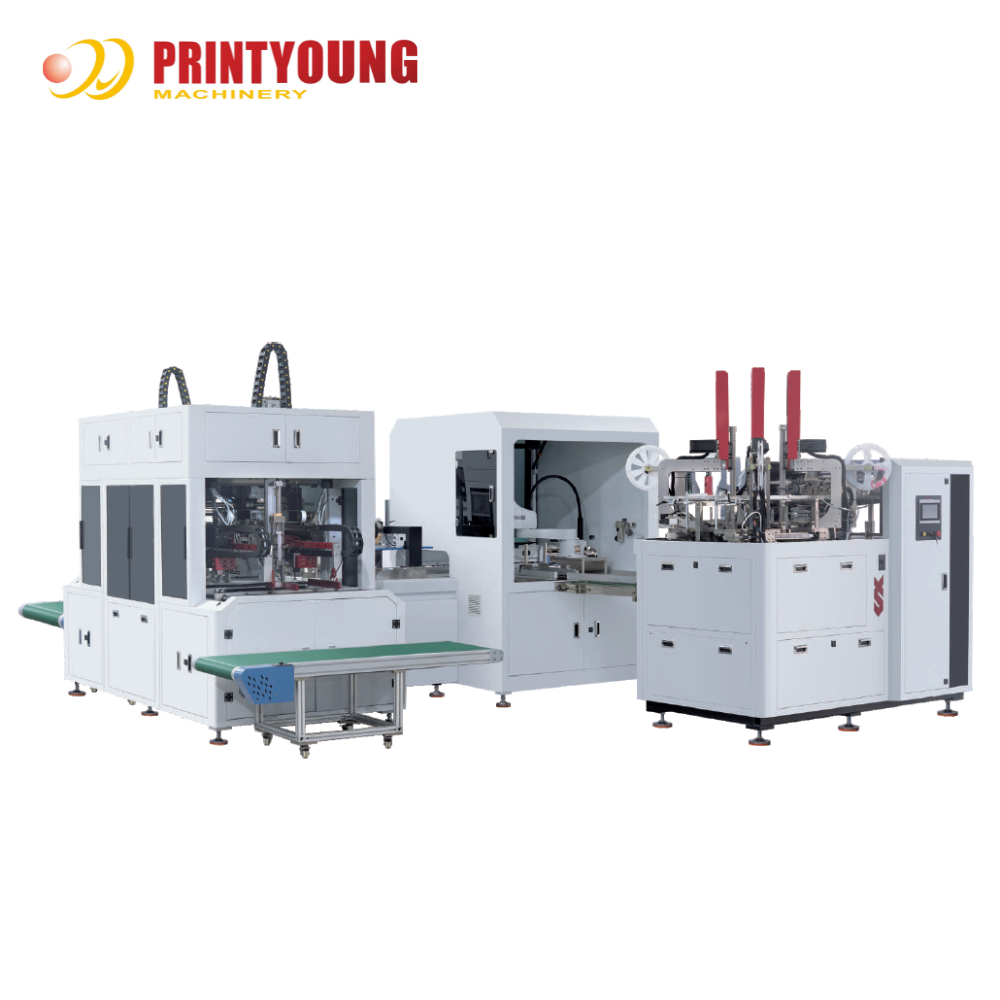

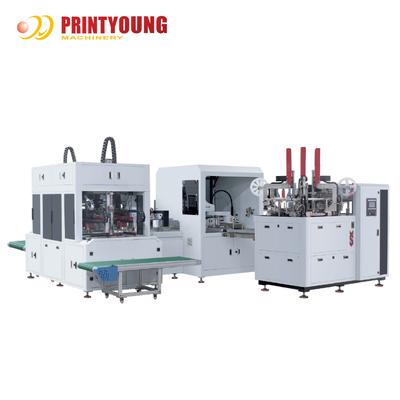

PRY-CS620B Automatic High Speed Rigid Box Making Machine for Carton/Paper 380V 48 Pcs/Min 1 Year Warranty

PRY-CS620B Automatic High Speed Rigid Box Making Machine for Carton/Paper 380V 48 Pcs/Min 1 Year Warranty
PRY-CS620B Automatic High Speed Rigid Box Making Machine for Carton/Paper 380V 48 Pcs/Min 1 Year Warranty
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-CS620B
Minimum Order Quantity: 1 Set
Price: USD 74000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 40 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Box Length: 80 ~ 400 Mm Box Width: 60 ~ 400 Mm
Box Height: 15 ~ 120 Mm Paper Length: 130 ~ 800 Mm
Paper Width: 100 ~ 560 Mm Fold-in Depth: 10 ~ 100 Mm
Side-fold Width: 10 ~ 60 Mm Paper Thickness: 80 ~ 250 Gsm
Paper Stacking Height: 360 Mm Max. Gray Board Size: 700 * 700 Mm
Min. Gray Board Size: 115 * 115 Mm Stacking Height Of Gray Boards: 900 Mm
Max. Speed: 48 Pcs/min Accuracy: ± 0.1 Mm
Air Pressure: 20 L/min 0.8MPa Machine Weight: 6000 Kg

PRY-CS620B Automatic High Speed Rigid Box Making Machine for Carton/Paper 380V 48 Pcs/Min 1 Year Warranty
PRY-CS620B Automatic Rigid Box Making Machine
PRY-CS620B Automatic High Speed Rigid Box Making Machine for Carton/Paper 380V 48 Pcs/Min 1 Year Warranty
Technical Parameters
Model
PRY-CS620B
Box Length
80 ~ 400 mm
Box Width
60 ~ 400 mm
Box Height
15 ~ 120 mm
Paper Length
130 ~ 800 mm
Paper Width
100 ~ 560 mm
Fold-in Depth
10 ~ 100 mm
Side-fold Width
10 ~ 60 mm
Paper Thickness
80 ~ 250 gsm
Paper Stacking Height
360 mm
Max. Gray Board Size
700 * 700 mm
Min. Gray Board Size
115 * 115 mm
Stacking Height of Gray Boards
900 mm
Thickness of Gray Board
1 ~ 3 mm
Max. Speed
48 pcs/min
Total Power
24kw AC 380V
Accuracy
± 0.1 mm
Air Pressure
20 L/min 0.8MPa
Machine Weight
6000 kg
PRY-CS620B Automatic High Speed Rigid Box Making Machine for Carton/Paper 380V 48 Pcs/Min 1 Year Warranty
PRY-CS620B Automatic High Speed Rigid Box Making Machine for Carton/Paper 380V 48 Pcs/Min 1 Year Warranty
PRY-CS620B Automatic High Speed Rigid Box Making Machine for Carton/Paper 380V 48 Pcs/Min 1 Year Warranty
PRY-CS620B Automatic High Speed Rigid Box Making Machine for Carton/Paper 380V 48 Pcs/Min 1 Year Warranty
PRY-CS620B Automatic High Speed Rigid Box Making Machine for Carton/Paper 380V 48 Pcs/Min 1 Year Warranty
PRY-CS620B Automatic High Speed Rigid Box Making Machine for Carton/Paper 380V 48 Pcs/Min 1 Year Warranty
PRY-CS620B Automatic High Speed Rigid Box Making Machine for Carton/Paper 380V 48 Pcs/Min 1 Year Warranty
PRY-CS620B Automatic High Speed Rigid Box Making Machine for Carton/Paper 380V 48 Pcs/Min 1 Year Warranty
