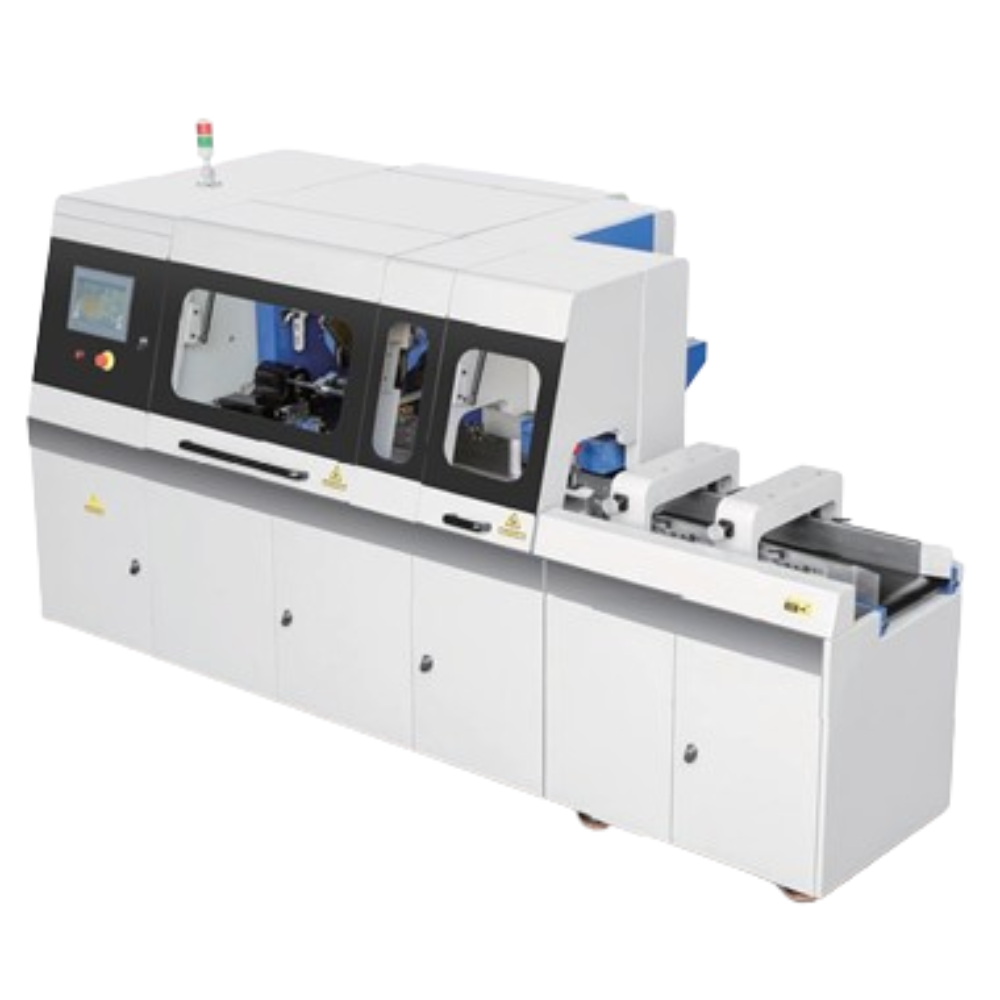

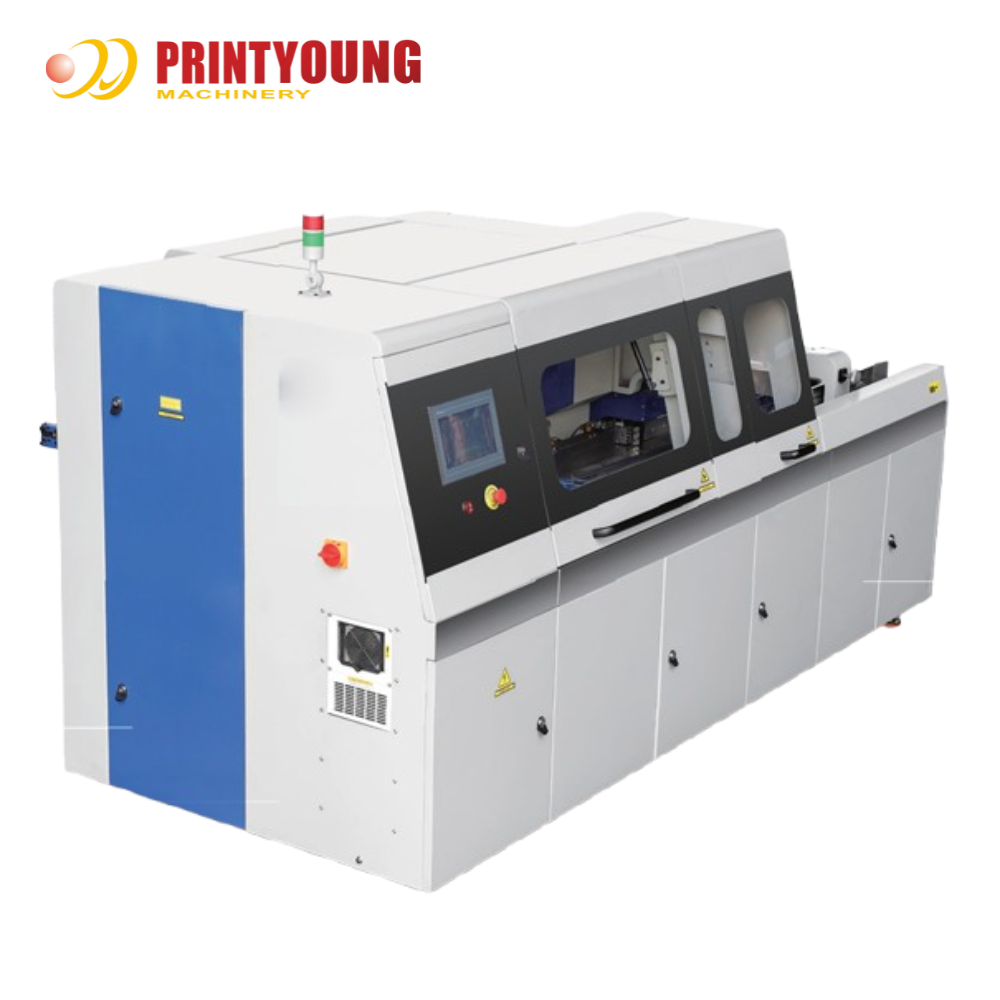

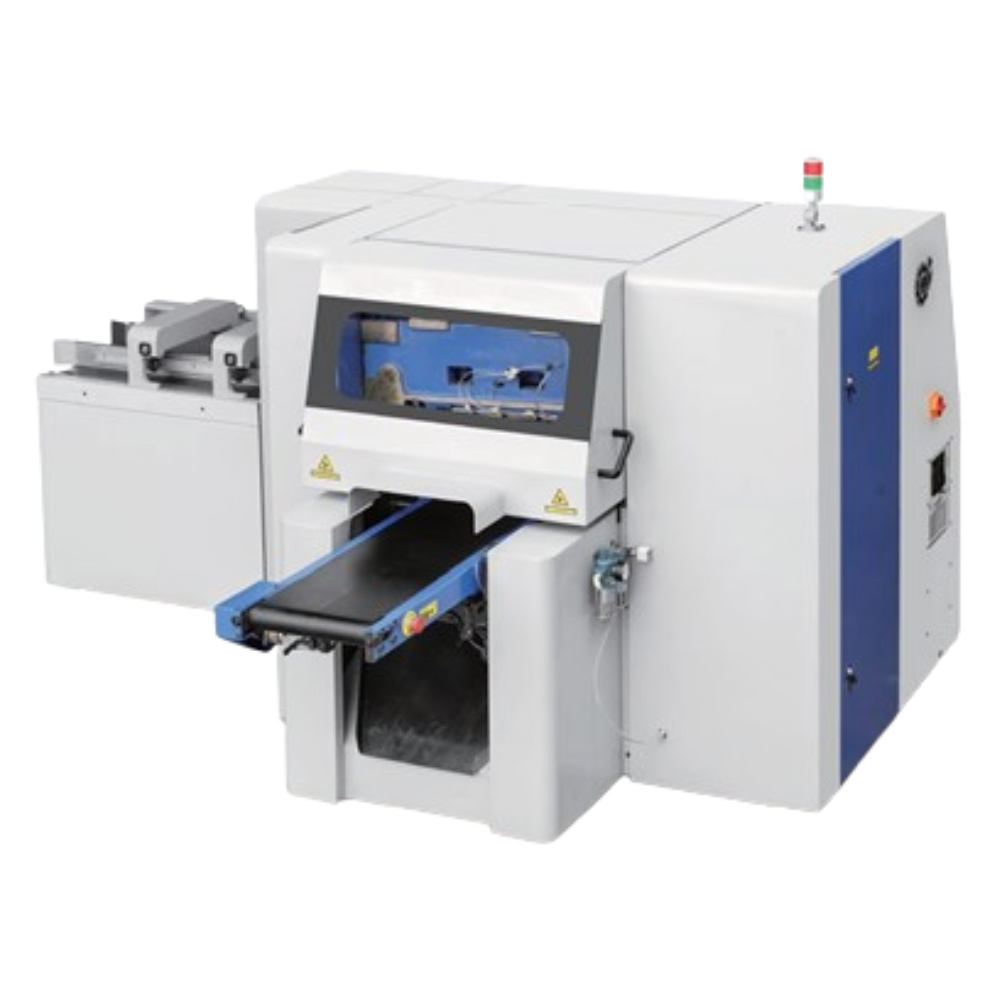

QS-1000VB Fully Automatic Book Three Knife Trimmer Machine

QS-1000VB Fully Automatic Book Three Knife Trimmer Machine
QS-1000VB Fully Automatic Book Three Knife Trimmer Machine QS-1000VB Fully Automatic Book Three Knife Trimmer Machine QS-1000VB Fully Automatic Book Three Knife Trimmer Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: QS-1000VB
Minimum Order Quantity: 1 Set
Price: USD 48000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Max. Cutting Size: 340 * 300 Mm Min. Cutting Size: 145 * 100 Mm
Max. Cutting Height: 60 Mm Min. Cutting Book Height: 10 Mm
Min. Single Cutting Height: 5 Mm Cutting Speed: 1300 Cut/hour
Power: 7 Kw Air Pressure: 6 Pu
Overall Dimension: 3020 * 2196 * 1710 Mm Machine Weight: 2400 Kg
Highlight:

Fully automatic book trimmer machine

,

Three knife book trimming machine

,

Paper processing trimmer with warranty

QS-1000VB Fully Automatic Book Three Knife Trimmer Machine
QS-1000VB Three Knife Trimmer
QS-1000VB Fully Automatic Book Three Knife Trimmer MachineQS-1000VB Fully Automatic Book Three Knife Trimmer MachineQS-1000VB Fully Automatic Book Three Knife Trimmer Machine
Features
The QS-1000VB fully automatic three knife trimmer is the latest intelligent fully automatic trimmer model designed and developed by our company,which is particularly suitable for use in the digital industry.This machine can be connected to various types of glue binding machines,and the transmission action of the machine is completed by a servo system.It also realizes intelligent adjustment and plate replacement,greatly reducing the technical requirements for operators during use.The machine has high precision,stability,and reliability.Flexible plate changing,intelligent adjustment,and convenience can be achieved when cutting small batches of books and periodicals.
QS-1000VB Fully Automatic Book Three Knife Trimmer Machine
Technical Parameters
Model
QS-1000VB
Max. Cutting Size
340 * 300 mm
Min. Cutting Size
145 * 100 mm
Max. Cutting Height
60 mm
Min. Cutting Book Height
10 mm
Min. Single Cutting Height
5 mm
Cutting Speed
1300 cut/hour
Power
7 kw
Air Pressure
6 Pu
Overall Dimension
3020 * 2196 * 1710 mm
Machine Weight
2400 kg
Configuration
QS-1000VB Fully Automatic Book Three Knife Trimmer MachineQS-1000VB Fully Automatic Book Three Knife Trimmer Machine
The main operating interface design is reasonable,and the main functions are clearly shown in the main interface,easy to operate.
Set the required length,width,and height dimensions for cutting books and maga-zines on the touch screen,and the machine will automatically adjust the size.And the data can be saved with a name annotation.
QS-1000VB Fully Automatic Book Three Knife Trimmer MachineQS-1000VB Fully Automatic Book Three Knife Trimmer Machine
The machine shutdown protection and prompt function when the cutting size is inconsistent with the mosaic.
The function of the presser foot can be adjusted on the touch screen.
QS-1000VB Fully Automatic Book Three Knife Trimmer MachineQS-1000VB Fully Automatic Book Three Knife Trimmer Machine
The book delivery pusher adopts a brand new design,which can adjust the thickness of books without manual intervention.
The automatic gear gauge can set the size of the required trimming edge on the touch screen,and the machine gear gauge will automatically adjust without manual intervention.And equipped with automatic alignment function.
QS-1000VB Fully Automatic Book Three Knife Trimmer MachineQS-1000VB Fully Automatic Book Three Knife Trimmer Machine
The widened pad does not need to be replaced when cutting between 185mm-297mm with a side blade.The advanced book pressing device can auto-matically adjust according to the height set by the touch screen.Replacing the pressing plate only takes 20 seconds to complete.
The front and side knives are equipped with waste paper dust blowing devices.
QS-1000VB Fully Automatic Book Three Knife Trimmer MachineQS-1000VB Fully Automatic Book Three Knife Trimmer Machine
The waste paper channel is equipped with a blowing device to ensure smooth and unobstructed cutting of waste edges.
Equipped with a device to prevent book back breakage.
QS-1000VB Fully Automatic Book Three Knife Trimmer MachineQS-1000VB Fully Automatic Book Three Knife Trimmer Machine
The book feeding channel is easy and fast to adjust,and is equipped with a blockage detection and protection device.
The horizontal feeding device can be automatically adjusted according to the touch screen settings,and the adjustment of the book delivery channel is convenient and fast.
QS-1000VB Fully Automatic Book Three Knife Trimmer MachineQS-1000VB Fully Automatic Book Three Knife Trimmer Machine
Electric box equipped with cooling system.
Equipped with side blade silicone oil spraying device.
QS-1000VB Fully Automatic Book Three Knife Trimmer Machine
QS-1000VB Fully Automatic Book Three Knife Trimmer Machine
QS-1000VB Fully Automatic Book Three Knife Trimmer Machine
QS-1000VB Fully Automatic Book Three Knife Trimmer Machine
QS-1000VB Fully Automatic Book Three Knife Trimmer Machine
QS-1000VB Fully Automatic Book Three Knife Trimmer Machine
QS-1000VB Fully Automatic Book Three Knife Trimmer Machine
