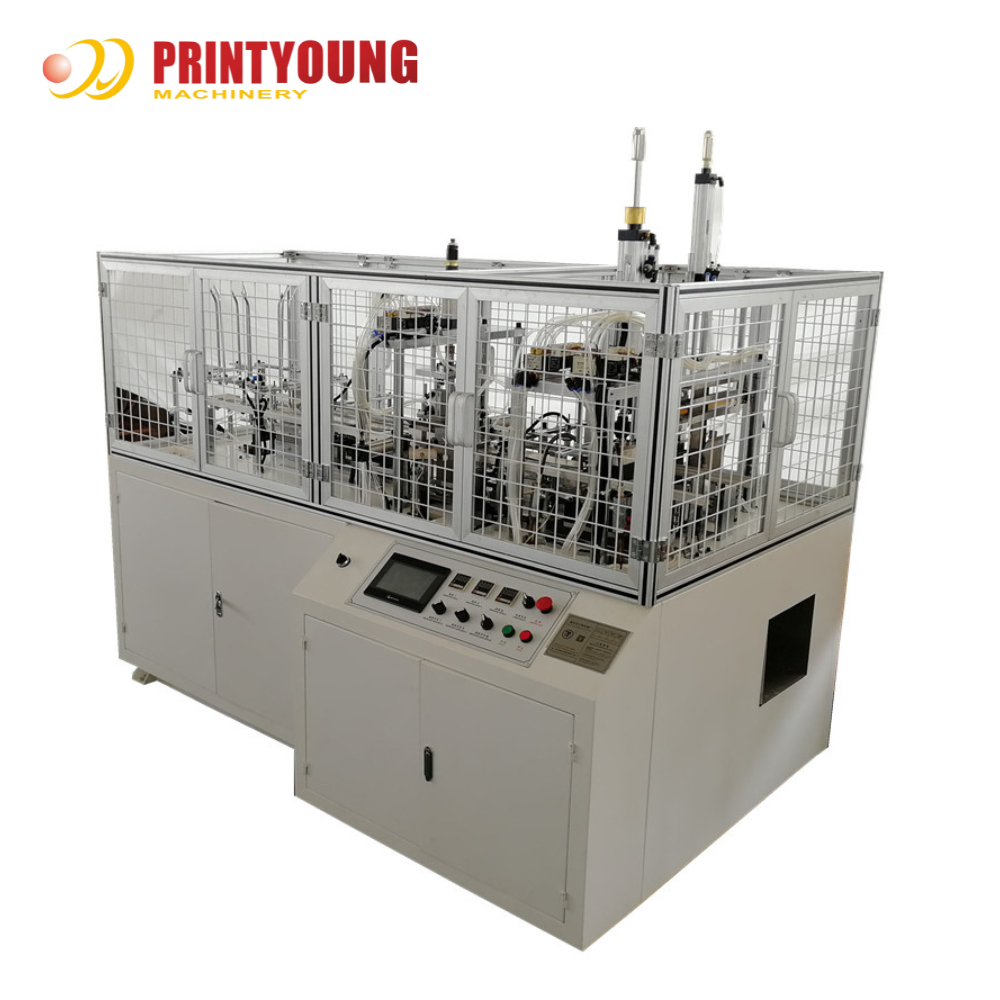

CHJ-E Automatic Paper Lunch Box Making Machine

CHJ-E Automatic Paper Lunch Box Making Machine
CHJ-E Automatic Paper Lunch Box Making Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: CHJ-E
Minimum Order Quantity: 1 Set
Price: USD 16500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Production Capacity: 20 ~ 25 Times/min Maximum Size: 350 * 390 Mm
Max. Paper Convey Width: 290 Mm Suitable Material: 100 ~ 400 G/m² PE (PE Coated Paper)
Total Power: 8 Kw Voltage Requirement: 380V / 50Hz (please Inform Your Power In Advance)
Total Weight: 1 T Overall Dimension: 2280 * 1500 * 1500 Mm
Working Air Source: Air Pressure 0.4 ~ 0.5 MPa (need To Buy Compressor) Working Gas Consumption: 0.4 ~ 0.5 M³/min

CHJ-E Automatic Paper Lunch Box Making Machine
CHJ-E Automatic Paper Lunch Box Making Machine
CHJ-E Automatic Paper Lunch Box Making Machine
Features
1.Mechanical transmission,energy-saving,stable and simple operation,microcomputer detection and domestic advanced technology products.
2.The device is automatic paper molding equipment,has the advantages of high speed,convenient operation etc..This machine adopts built-in hot air generator,suitable for single PE coated paper.
3.Through the automatic feed paper,corner heating (comes with hot air generating device),fold the cover (by mechanical device),hot press molding (adhesive box four corners),automatic points collected,microcomputer control of continuous processes.For the production of single-cell disposable paper boxes,paper lunch boxes,food packaging boxes.
4.The fastest working speed is 25 times per minute.Domestic leading speed level.It has the monitor computer system.If the fault the machine will stop and alarming.
CHJ-E Automatic Paper Lunch Box Making Machine
CHJ-E Automatic Paper Lunch Box Making Machine
Technical Parameters
Type
CHJ-E
Production Capacity
20 ~ 25 times/min
Maximum Size
350 * 390 mm
Max. Paper Convey Width
290 mm
Suitable Material
100 ~ 400 g/m² PE (PE coated paper)
Total Power
8 kw
Voltage Requirement
380V / 50Hz (please inform your power in advance)
Total Weight
1 T
Overall Dimension
2280 * 1500 * 1500 mm
Working Air Source
air pressure 0.4 ~ 0.5 MPa (need to buy compressor)
Working Gas Consumption
0.4 ~ 0.5 m³/min
Configuration
CHJ-E Automatic Paper Lunch Box Making Machine

Folding Mechanism

Cover Forming Process:
1.Hot air preheating → 2.Eject cylinder fold paper → 3.Folding cap mould blanking angle → 4.Folding lid
Cap Folding Structure Composition Details:
1.Up and down folding cylinder.
2.Right and left folding cylinder.
3.Front folding cylinder.
4.Cover forming pressing mould.
5.Preheating blowing structure.
6.Pressing mould cylinder.
CHJ-E Automatic Paper Lunch Box Making MachineCHJ-E Automatic Paper Lunch Box Making MachineCHJ-E Automatic Paper Lunch Box Making Machine
Box Body Hot Air Part
This functional part is mainly composed of the blower inside the fuselage,the hot air heater on the rack,the hot air pipe and the connection part.Mainly provides hot air preheating for the box corners,and provides preheating process for box molding.
Box Molding Function
This part is mainly composed of upper and lower forming molds,a main cylinder and a connecting part.The upper mold of the mold is moved up and down by the forming cylinder,and finally the upper and lower molds are closed to form the box body.
Box Collection Part
The function of this part is mainly to collect counts,stack the boxes after molding,set the number of folds,reach a certain number and then release the splint by the cylinder to achieve the function of collecting count.
CHJ-E Automatic Paper Lunch Box Making Machine
CHJ-E Automatic Paper Lunch Box Making Machine
CHJ-E Automatic Paper Lunch Box Making MachineCHJ-E Automatic Paper Lunch Box Making MachineCHJ-E Automatic Paper Lunch Box Making MachineCHJ-E Automatic Paper Lunch Box Making Machine
CHJ-E Automatic Paper Lunch Box Making Machine
CHJ-E Automatic Paper Lunch Box Making Machine
CHJ-E Automatic Paper Lunch Box Making Machine
CHJ-E Automatic Paper Lunch Box Making Machine
CHJ-E Automatic Paper Lunch Box Making Machine
