Place of Origin: | China |
---|---|
Brand Name: | PRINTYOUNG |
Certification: | CE |
Model Number: | H10L |
Minimum Order Quantity: | 1 Set |
Price: | US 4900 Set |
Packaging Details: | Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 30 Set/Sets per Month |
Book Length: | 120 ~ 425 Mm | Book Thickness: | 0.2 ~ 60 Mm |
---|---|---|---|
Book Height: | 135 ~ 297 Mm | Cover Size: | 660 * 425 Mm |
Cover Thickness: | 120 ~ 300 Gsm | Cover Feeder Capacity: | 98 Mm |
Number Of Creases: | 2 Convex Spine Lines, 2 Concave Flipping Lines | Distance Of The Spine Lines: | 2 ~ 60 Mm |
Distance Between The Spine Line And The Flipping Line: | 8 Mm | Pre Heating: | 25 ~ 45 Minutes |
Side Glue: | YES | Rubber Wheel: | 2 |
Cycle Speed: | 350 ~ 400 Books/h | Cutter: | 20-tooth Sun Cutters + 2 Small Milling Cutters |
Display: | 7.0" Touch Screen | Smoke Evacuation Equipment: | Optional |
Power: | 220V 50Hz / 60Hz 2.6 Kw | Dimensions: | 1985 * 710 * 1260 Mm |
Weight: | 300 Kg |

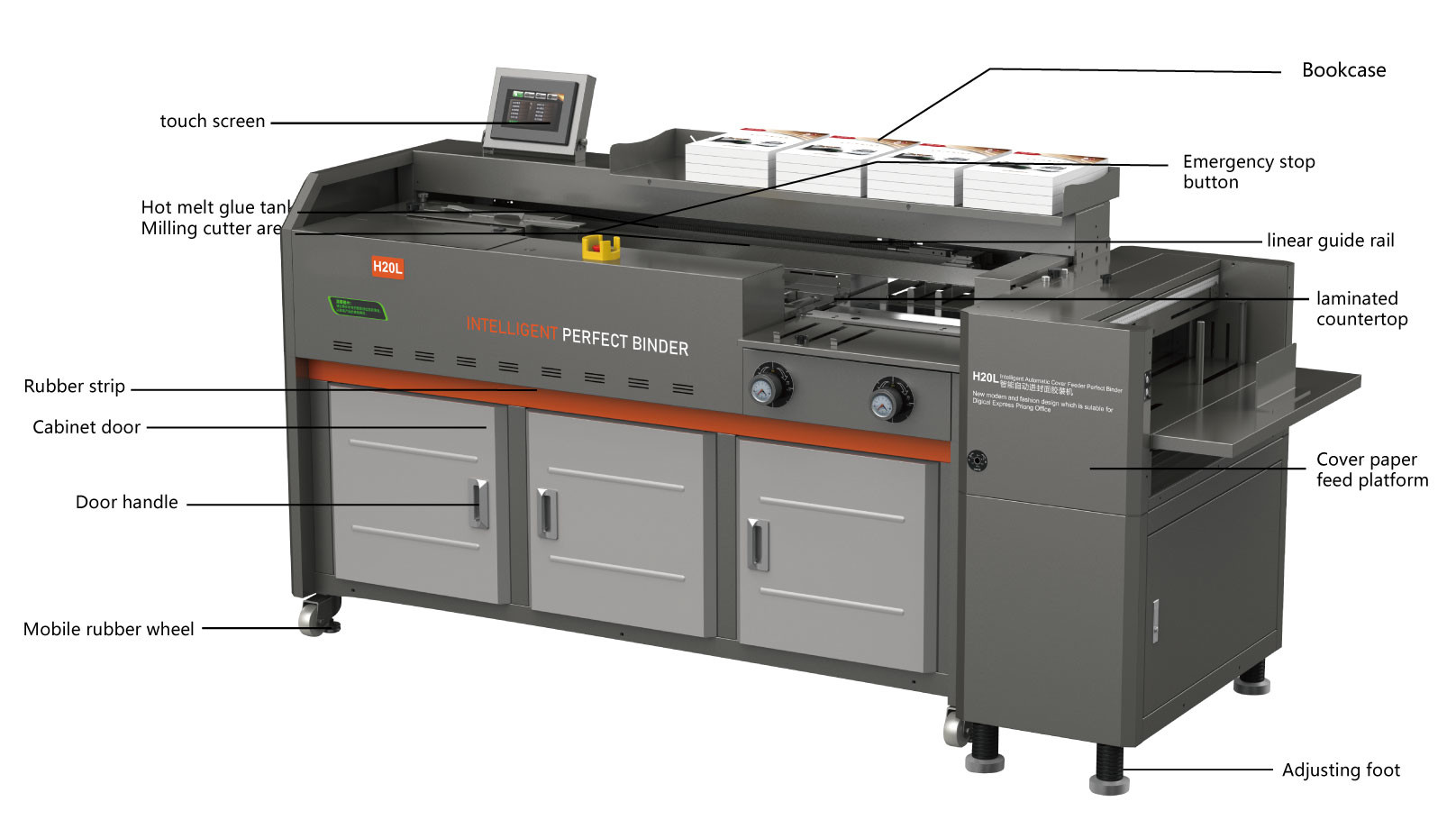

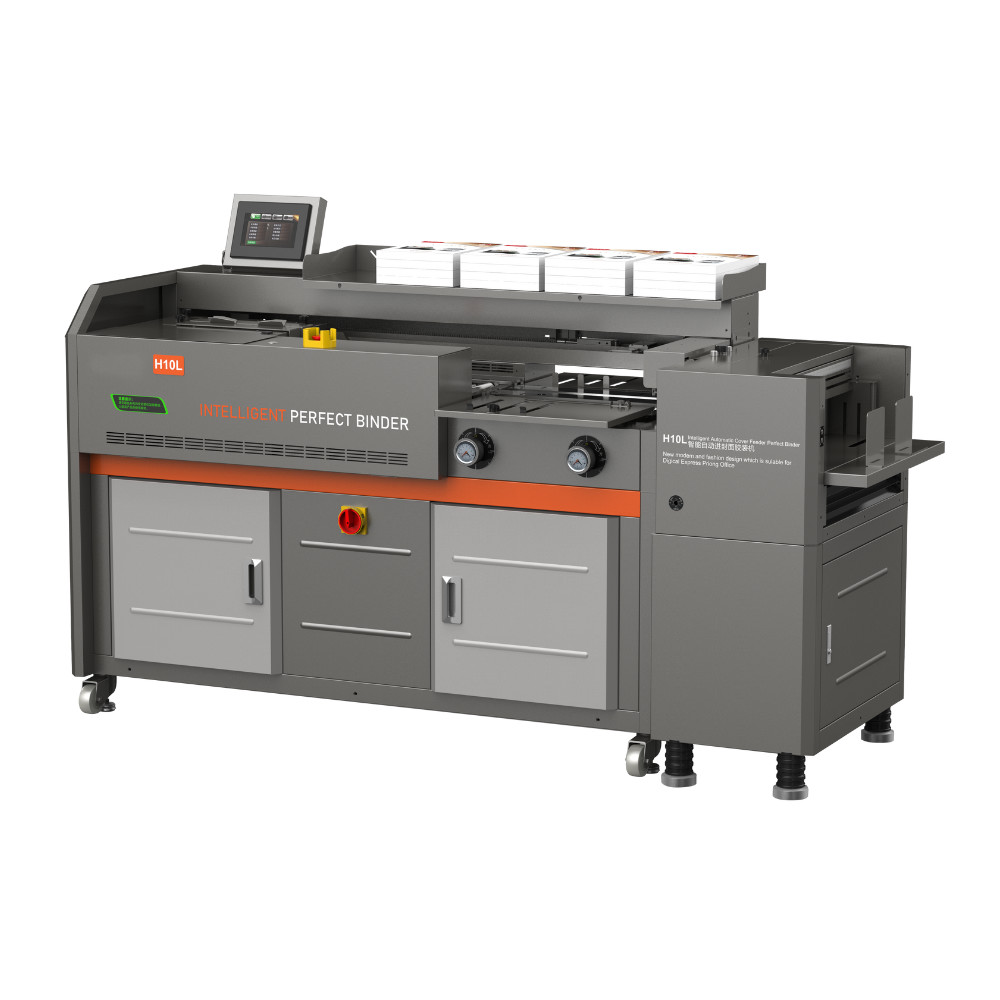

H10L Glue Binding Machine
|
|
---|---|
Book Length(with Feed Cover)
|
120 ~ 330 mm
|
Book Length(without Feed Cover)
|
120 ~ 425 mm
|
Book Thickness
|
0.2 ~ 60 mm
|
Book Height
|
135 ~ 297 mm
|
Cover Size(with Feed Cover)
|
500 * 330 mm
|
Cover Size(without Feed Cover)
|
660 * 425 mm
|
Cover Thickness
|
120 ~ 300 g
|
Cover Feeder Capacity
|
98 mm
|
Number of Creases
|
2 Convex Spine Lines , 2 Concave Flipping Lines
|
Distance of the Spine Lines
|
2 ~ 60 mm
|
Distance between the
Spine Line and the Flipping Line
|
8 mm
|
Pre Heating
|
25 ~ 45 minutes(Depending on Ambient Temperature)
|
Side Glue
|
YES
|
Rubber Wheel
|
2
|
Cycle Speed
|
350 ~ 400 books/h
|
Cutter
|
20-Tooth Sun Cutters + 2 Small Milling Cutters
|
Display
|
7.0" Touch Screen
|
Smoke Evacuation Equipment
|
Optional
|
Power
|
220V 50Hz / 60Hz ; 2.6 kw
|
Dimensions
|
1985 * 710 * 1260 mm
|
Weight
|
300 kg
|
