PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold

PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold
PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-4200
Minimum Order Quantity: 1 Set
Price: USD 6200 Set
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Working Speed: 800 ~ 1500 Books/hour Max. Binding Width: 420 Mm
Binding Specification: 1/4" --- 1 1/4" (no Need Change Mold) Pitch: 2:1 , 3:1
Machine Dimension: 1950 * 1270 * 1250 Mm Feeding Reel: 800 * 450 * 1060 Mm
Conveyor: 2160 * 370 * 700 Mm Machine Weight: 300 Kg
Voltage: 220V / 50Hz / 60Hz Air Pressure: 5 ~ 8 Bar

PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold 0

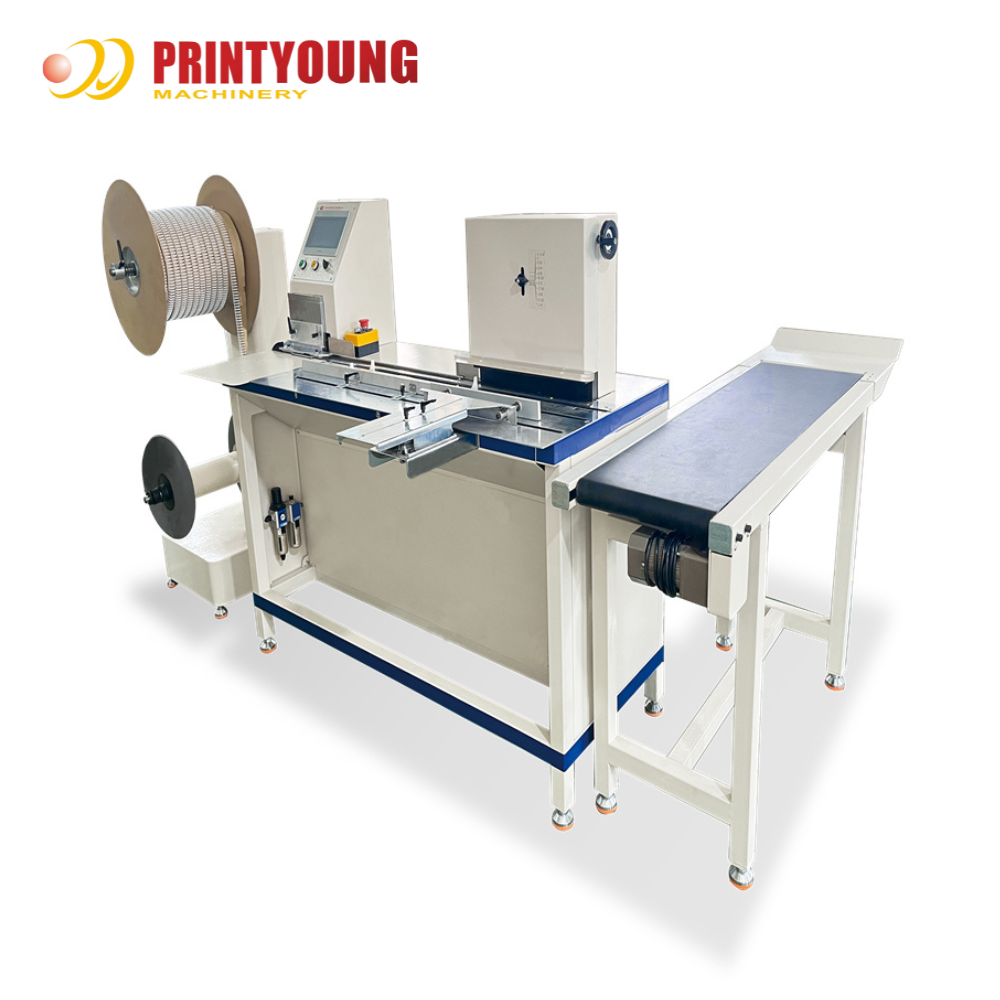

PRY-4200 Double Loop Wire Binding Machine
PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold 1
Features
* PLC to input all necessary dates,control the whole machine process in computer. Support Chinese and English language.
* Automatically wire feeding,cutting,binding,closing.
* Machine is for notebook,calender,diary etc.lose-leaf products YO binding.
* The best characteristic of this machine is binding all size without changing mold.
* Simple operation and easy to learn,need little maintainance.
* The machine don't have too much strict demand at the quality of the double loop wire,it can adjust the double loop wire autoamtically.
Technical Parameters
Working Speed
800 ~ 1500 books/hour
Max. Binding Width
420 mm
Binding Specification
1/4" --- 1 1/4" (no need change mold)
Pitch
2:1 , 3:1
Machine Dimension
1950 * 1270 * 1250 mm
Feeding Reel
800 * 450 * 1060 mm
Conveyor
2160 * 370 * 700 mm
Machine Weight
300 kg
Voltage
220V / 50Hz / 60Hz
Power
1.5 kw
Air Pressure
5 ~ 8 bar
Configuration
PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold 2PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold 3
Wecon Screen control the whole machine process in computer.Support Chinese and English language,and also any other language.
The electronic parts in our machines:include CHNT,DELTA,Ormon.
PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold 4PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold 5
Two electric automatic delivery belt.One is for book sending,another one is for book collecting.Make people feel very confortable when working.
Binding table and book position fixing area. This will make sure the book be put on the right position to match with the wire inserting.
PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold 6
Refined and unique wire holder.One for wire supply,another one for waste paper rewinding.Make sure your workshop clean and tidy.
This machine is best for binding unique calenders.(the sheets are not with the same size)
Applications
This machine widely used in the loose-leaf binding including notebook,brochure and desk calendaretc.The most important is that it could bind all he normal type of cil without changing the mold.The machine improves the efficiency and reduces the cost by the way of combining sending materialauto,cutting,conveyor and binding together.
PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold 7
PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold 8
PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold 9
PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold 10
PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold 11
PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold 12
PRY-4200 Manual Double Loop Wire Book Binding Machine Without Changing the Mold 13
