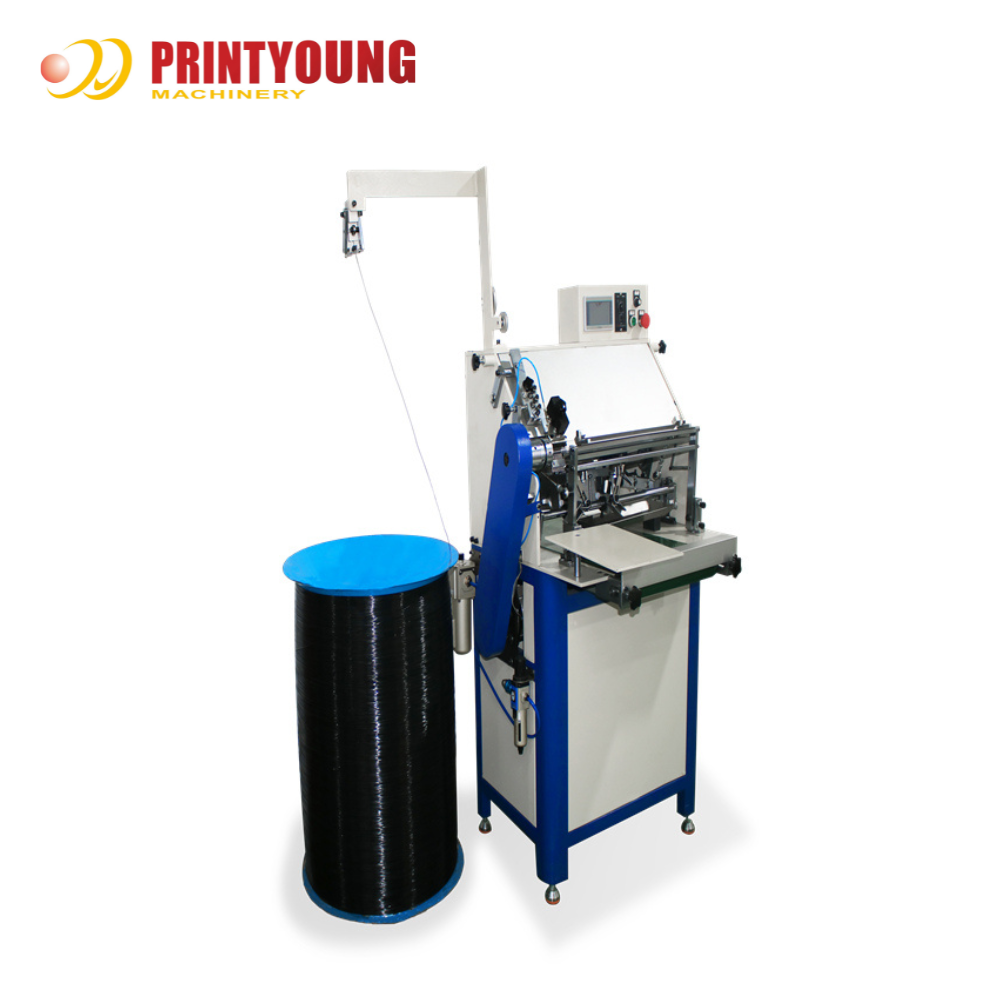

PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine

PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine
PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-450
Minimum Order Quantity: 1 Set
Price: USD 6500 Set
Packaging Details: Water proof level film packing inside, standard exporting wooden outside.
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Working Speed: 700 ~ 1300 Books/hour Wire Forming Spec Range: 1/4'' ~ 7/8''
Binding Thickness: 18 Mm Width Of Book: 100 ~ 450 Mm
Machine Dimension: 800 * 1400 * 1200 Mm Package Size: 1060 * 1010 * 1540 Mm
Machine Weight: 238 Kg Power: 220V / 50Hz

PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine 0
PRY-450 Wire Forming Spiral & Binding Machine
PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine 1PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine 2
Features
* Forming different wire to spiral and bind it into the notebook at the same time.
* Different thickness of book could bind on the same machine by change tool and pitch bar.
* Suitable for diary,notebook, hand-pad,all kind of loose-leaf product.
* Simple operation and easy to learn,need little maintainance.
* Finished products could have a great round cycle wire shape and end lock effect.
* Machine running much higher speed than traditional labour.Much lower cost and much stable quality.
* Occupy small space in factory. Low noisy when machine running. looks very nice and comforatble.
Technical Parameters
Working Speed
700 ~ 1300 books/hour
Wire Forming Spec Range
1/4'' ~ 7/8''
Binding Thickness
18 mm
Width of Book
100 ~ 450 mm
Machine Dimension
800 * 1400 * 1200 mm
Package Size
1060 * 1010 * 1540 mm
Machine Weight
238 kg
Power
220V / 50Hz
Configuration
PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine 3PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine 4
Wecon screen control the whole machine process in computer.Support Chinese and English language,and also any other language.
The electronic parts in our machines:include CHNT,DELTA,Ormon.
PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine 5PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine 6
Sophisticated design of spiral forming tool and structure to make sure the forming wire could be a very nice round shape all the ways.(we have cooling system on the tool)
Sophisticated design of wire forming pitch mold.
PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine 7PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine 8
Small book table and delivery table make the machine production so friendly and comfortable.
Air pressure controller.
Finished Spiral Binding great round angel with end-lock effect.
PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine 9
PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine 10
PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine 11
PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine 12
PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine 13
PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine 14
PRY-450 Single Loop Wire Spiral Forming and Notebook Binding Machine 15
