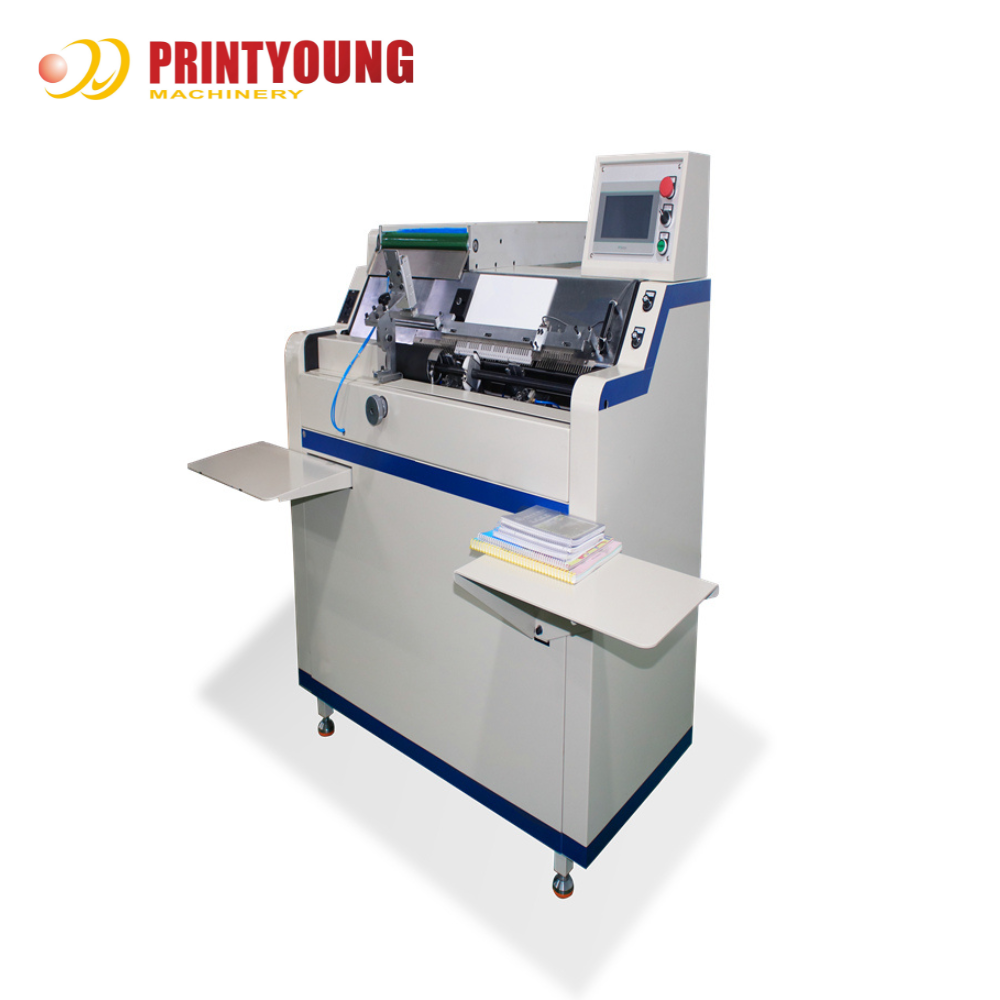

PRY-350 Plastic Spiral Book Binding Machine

PRY-350 Plastic Spiral Book Binding Machine
PRY-350 Plastic Spiral Book Binding Machine PRY-350 Plastic Spiral Book Binding Machine PRY-350 Plastic Spiral Book Binding Machine PRY-350 Plastic Spiral Book Binding Machine PRY-350 Plastic Spiral Book Binding Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-350
Minimum Order Quantity: 1 Set
Price: USD 9500 Set
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Set per Month
Contact Now
Working Speed: 500 ~ 100 Books/hour Min. Binding Size: 135 Mm
Max. Binding Size: 350 Mm Spiral Diameter: 5/16 ~ 3/4
Pitch: 4:1/6mm/5:1/3:1 Air Pressure: 0.6 ~ 0.8 MPa
Machine Weight: 380 Kg Power: 220V / 50Hz / 1.5kw

PRY-350 Plastic Spiral Book Binding Machine 0
PRY-350 Plastic Spiral Book Binding Machine
PRY-350 Plastic Spiral Book Binding Machine 1
Features
* Simple to operate,automatic feed the plastic spiral,automatic insert the plastic spiral, automatic cut and close the end.
* Can bind 500-1000 books/hr,according to the book size and operator's working speed.
* Book thickness range is wide,from 5-13mm.For plastic spiral wire spec range is 5/16" to 5/8 ".
* Suitable for Diary,notebook,hand-pad,all kind of loose-leaf product binding use.
* The beautifully outlooks.
* Easy to change the pitch.
Technical Parameters
Working Speed
500 ~ 100 books/hour
Min. Binding Size
135 mm
Max. Binding Size
350 mm
Spiral Diameter
5/16 ~ 3/4
Pitch
4:1/6mm/5:1/3:1
Air Pressure
0.6 ~ 0.8 MPa
Machine Weight
380 kg
Power
220V / 50Hz / 1.5kw
Machine Dimension
1500 * 1700 * 1400 mm
Configuration
PRY-350 Plastic Spiral Book Binding Machine 2

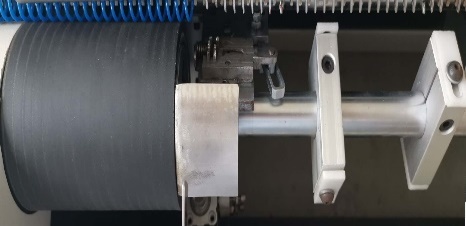

Two deliver belt control the plastic spiral feed one by one.
The electronic parts in our machines:include CHNT,MITSUBISHI,Ormon.
PRY-350 Plastic Spiral Book Binding Machine 3PRY-350 Plastic Spiral Book Binding Machine 4

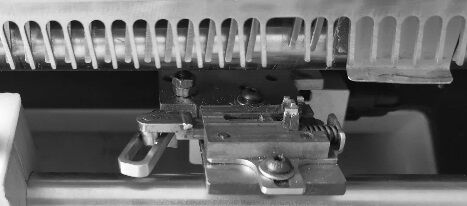

This part help to make the spiral move in a straight so that it will be easy to insert in the book.
This parts assist the plastic spiral move forward.
PRY-350 Plastic Spiral Book Binding Machine 5PRY-350 Plastic Spiral Book Binding Machine 6

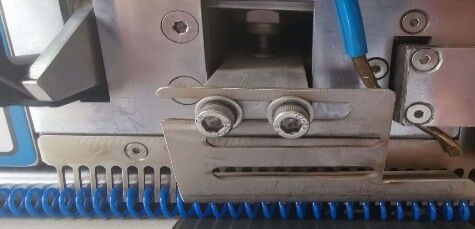

The pitch,it can be changed for different size. Such as 4:1/6mm/5:1/3:1.

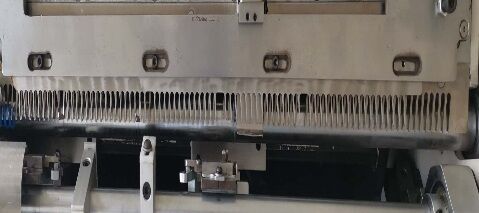

Cutter:cut the plastic spiral and close the end.
Applications
Plastic spiral binding machine,automatic insert spiral,automatic bending and closing hook,widely used in all kinds of children's books,picture a1bums,picture books,and coil books Solve the industry’s pain points in the traditional production process that plastic spiral binding can only be done manually!
PRY-350 Plastic Spiral Book Binding Machine 7
PRY-350 Plastic Spiral Book Binding Machine 8
PRY-350 Plastic Spiral Book Binding Machine 9
PRY-350 Plastic Spiral Book Binding Machine 10
PRY-350 Plastic Spiral Book Binding Machine 11
PRY-350 Plastic Spiral Book Binding Machine 12
PRY-350 Plastic Spiral Book Binding Machine 13
PRY-350 Plastic Spiral Book Binding Machine 14
