| Place of Origin: | China |
|---|---|
| Brand Name: | PRINTYOUNG |
| Certification: | CE |
| Model Number: | APS-OR |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 30 sets per month |
| Paper Size: | Min 45*80mm / Max 125*185mm | Printing Area: | 120*180mm |
|---|---|---|---|
| Paper Thickness: | 0.15-1.5mm | Printing Speed: | 3000-7000 Sheets/hour |
| Highlight: | auto print offset machine,web offset printing press |
||

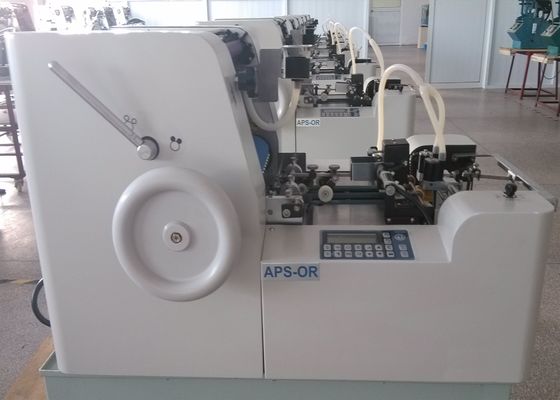

Fully Automatic Offset Printing Equipment Commercial Offset Printing Presses
Specifications :
|
Paper size |
Min 45*80mm / Max 125*185mm |
|
Printing area |
120*180mm |
|
Paper thickness |
0.15-1.5mm |
|
Plate size |
205*195mm (thinkness:0.15-0.2mm) |
|
Adjustment precision |
Vertical : 0.01mm horizontal : 0.01mm |
|
Height of paper |
150mm |
|
Method of paper collection |
Vacuum suction feeding paper |
|
Stacking of paper |
Adjustable paper stack |
|
Roller quantity |
12(near plate 2, cluster ink plate3) |
|
Printing speed |
3000-7000 sheets/hour |
|
Dimension |
L760*W555*H475mm |
|
Machine weight |
80Kg |
|
Power |
AC 220V 50/60Hz 0.6Kw |
A Suction feeder
B Precision electronic sensor of double-sheet
C Accurate register
D New type adjustment of pressure
E LED Screen
F Induction control motor
Features
1, Suction feeder: Suction feeder unit to ensure that various types of printing paper pass stably.
2, Double feed detection: Precision electronic testing of double-sheet can prevent the situation of double-sheet efficiently.
3, Registration of printing: Adjustment of precision is up to 0.01 mm
4, Electronic control of paper feeding: Paper feeding is controlled by microcomputer to ensure the accuracy of feeding.
5, Roller structure: Ink system is made of 12 rollers to ensure good and stable printing result.
