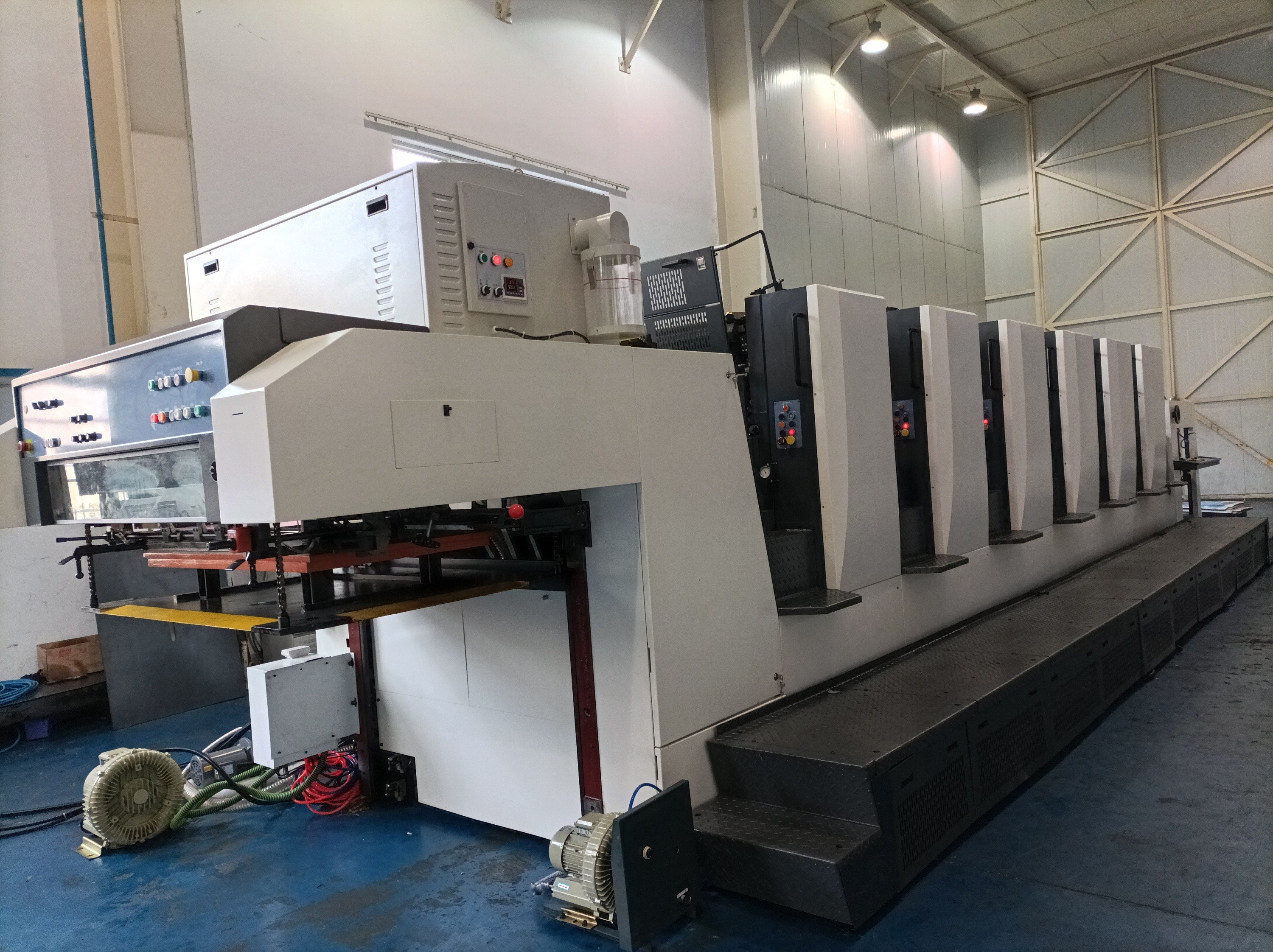

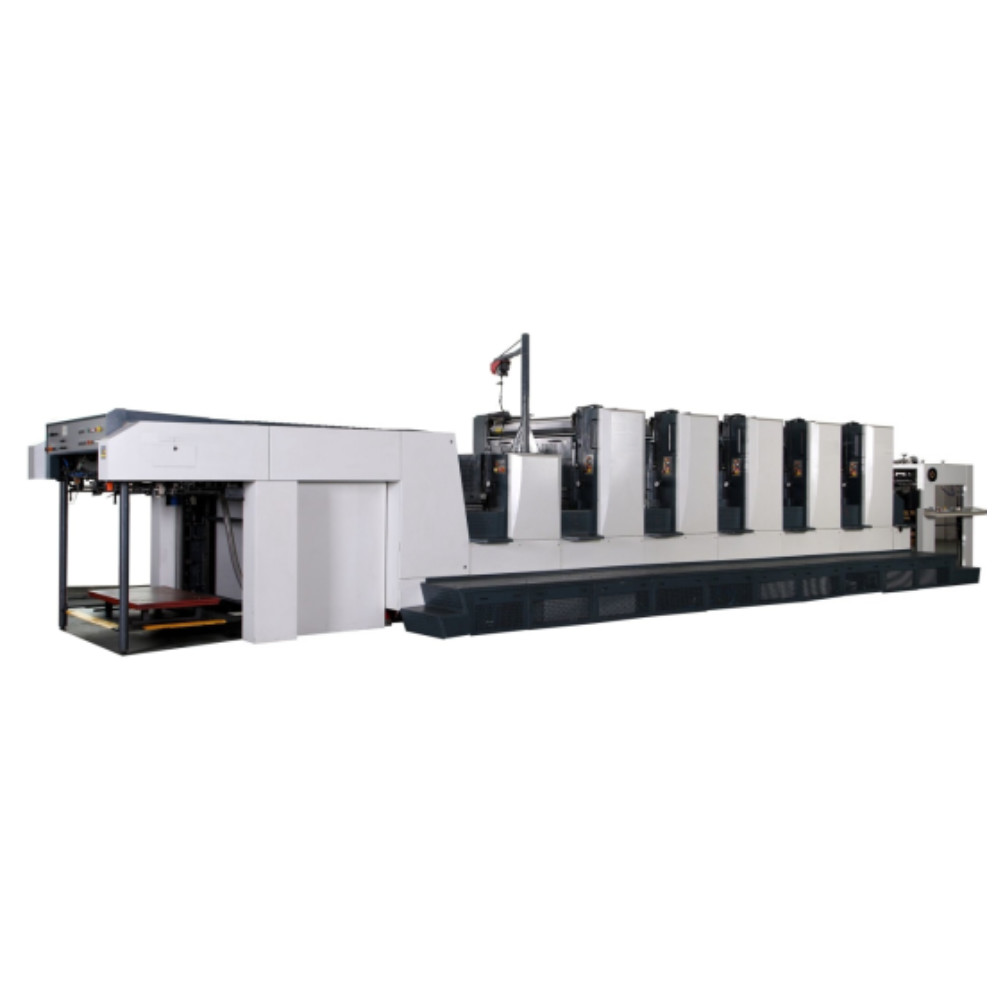

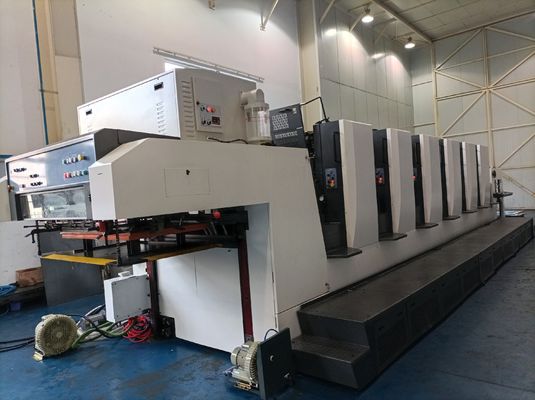

PRY-103 Large Size Muticolor Offset Printing Machine

PRY-103 Large Size Muticolor Offset Printing Machine
PRY-103 Large Size Muticolor Offset Printing Machine
PRY-103 Large Size Muticolor Offset Printing Machine PRY-103 Large Size Muticolor Offset Printing Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-103
Minimum Order Quantity: 1 Set
Price: US 380000 ~ 1250000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 120 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Year
Contact Now
Max. Sheet Siz: 720 * 1030 Mm Min. Sheet Size: 360 * 520 Mm
Max. Printing Size: 705 * 1020 Mm Paper Thickness: 0.04 ~ 0.6 Mm
Blanket Size (with Clip): 900 * 1040 * 1.95 Mm Plate Size: 800 * 1030 * 0.3 Mm
Max. Speed: 12000 S/h Paper Pile Height: 1150 Mm

PRY-103 Large Size Muticolor Offset Printing Machine 0
PRY-103 Muticolor Offset Printing Machine
PRY-103 Large Size Muticolor Offset Printing Machine 1
Technical Parameters
PRY-103 Muticolor Offset Printing Machine
Printing Color Number 2 Color 5 Color 8 Color
Max. Sheet Size
1030 * 720 mm
Min. Sheet Size
520 * 360 mm
Max. Printing Size
1020 * 705 mm
Sheet Thickness
0.04 ~ 0.6 mm
Blanket Size(with Clip)
1040 * 900 * 1.95 mm
Plate Size
1030 * 800 * 0.3 mm
Max. Speed
12000 s/h
Paper Pile Height
1150 mm
Main Motor Power
37 kw
 45 kw 55 kw
Total Weight
28800 kg
 41500 kg 60400 kg
Configuration

Structure of the Press

Unit design,double size impression cylinder and transfer cylinder;
Ratio of cylinder diameter:P:B:I:T=1:1:2:2

Feeder Unit

High speed feeder;
Straight lift paper suction,linear paper feeding, side blowing;
Aluminium alloy feeder deskboard,vacuum adsorption feeding belt;
Feeder board is equiped with wheel brush presser bar;
Inclination of the paper sheets adjustable at the feeder head;
Lift distance adjustable according to sheet thickness;
Air volume manually adjustable according to the sheet size,weight and the printing speed;
Nozzle height adjustable by steel wire shaft and handle;
Nozzle for paper pile skew;
Tooth shaped electromagnetic clutch;
Double sheets detector;
Paper pile centering manually adjustable;
Position of feeder head manually adjustable;
Offer:Outline pre-stacking device;
Non-stop paper feeding device;
Electrostatic Remover.

Paper Positioning

Conjugate cam paper feeding mechanism;
Down-swing compound front lays,longer sheet positioning time;
Sensors at the front lay for checking late and skewed paper sheets,double sheet sensor;
Paper sheet size control;
Front lays manually adjustable in vertical and longitudinal directions.Cam control side lay, easy for adjustment and stable for working.
Inter locking mechanism for the in-feeder and the front lays.
Offer:Plate and bar for pressing paper.

Printing Unit

Stainless coatings on the impression Cylinder;
All cylinders use anti-friction alloyed cast iron;
High spot close grippers;
Grippers and gripper pads replaceable independently;
Roller support of plate cylinder and impression cylinder using high precision tapered roller bearing;
Blanket cylinder support using INA high precision roller bearing for printing press;
Cylinder bearer;
Blankets with aluminum clippers for fast plate mounting;
Gripper height fast adjustment device as per paper thickness;
Quick-change plate holder;
Front plate holder with positioning pins for preposition;
Rear plate holder split into 3sections for adjusting fanning-out;
Axial adjustment for the plate cylinder;
Circumferential adjustment for the plate cylinder;
Optional:PC control perforating machine;
Roller gear with high frequency quenching alloy steel gear;
Cam with nitriding or high frequency quenching surface;
Roller engagement and disengagement device with conjugate cam mechanism;
Form ink roller pressure adjustable by worm and gear;
Ink quantity with electrical control;
Ink fountain roller with high frequency quenching surface.

Offer:Remote Inking Control System

PC on the control console and touch screen to control ink quantity,water quantity and electrical plate alignment;
Ink adjustment key adjustable independently in console;
Information of print and ink color accessible;
Continuous lubricating device to lubricate the components in the cover,alarming for oil starvation.

Alcoholic Dampening System

Alcoholic system with automatic temperature control;
Automatic alcohol proportioning;
Negative pressure backwater and automatic water supply.

Delivery

Delivery gripper system suitable for whole range of paper sheets,adjustment-free;
Fully enclosed guide rails;
Sampling device;
Gear motor for paper pile hoist;
Automatic lowering of paper pile;
Fan sheet support device;
Sheet flattening device;
Fan sets for blowing down paper sheets;
Brake roller whirl blower for air draft;
Brake roller air draft adjustable independently;
Electronic powder spraying device;
Automatic dust collector;

Electric Control System

International good brand PLC control system;
International good brand frequency converter;
Frequency convertible main motor and water fountain roller motor;
Water and ink supply,impression on/off,interlocking system,powder supply and pumps.for delivery can be switched between manual and automatic control;
Console touch screen control (water volume, electric calibration);
Display of faults (including braking protection,sheet positioning fault,safety protection, lubrication faults,frequency converter protection and motor protection);
Display of printing parameters;
Print volume settings;
Communication cable transmission control;
Main motor with brake;
Push button lamp;
Inching speed ≤5m/min;
Alarming before starting operation;
Safety devices equipped on safety guards on the printing unit, pedals between printing .units and other positions in the press.

Others

Offer:One color set of rubber roller core;
Offer:One set of tools;
(this technical configuration is only for reference when ordering. The actual configuration of the machine is subject to the material object and the machine manual.)
Applications
PRY-103 Large Size Muticolor Offset Printing Machine 2
PRY-103 Large Size Muticolor Offset Printing Machine 3
PRY-103 Large Size Muticolor Offset Printing Machine 4
PRY-103 Large Size Muticolor Offset Printing Machine 5
PRY-103 Large Size Muticolor Offset Printing Machine 6
PRY-103 Large Size Muticolor Offset Printing Machine 7
PRY-103 Large Size Muticolor Offset Printing Machine 8
PRY-103 Large Size Muticolor Offset Printing Machine 9PRY-103 Large Size Muticolor Offset Printing Machine 10PRY-103 Large Size Muticolor Offset Printing Machine 11PRY-103 Large Size Muticolor Offset Printing Machine 12
PRY-103 Large Size Muticolor Offset Printing Machine 13PRY-103 Large Size Muticolor Offset Printing Machine 14PRY-103 Large Size Muticolor Offset Printing Machine 15
PRY-103 Large Size Muticolor Offset Printing Machine 16PRY-103 Large Size Muticolor Offset Printing Machine 17
PRY-103 Large Size Muticolor Offset Printing Machine 18
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
