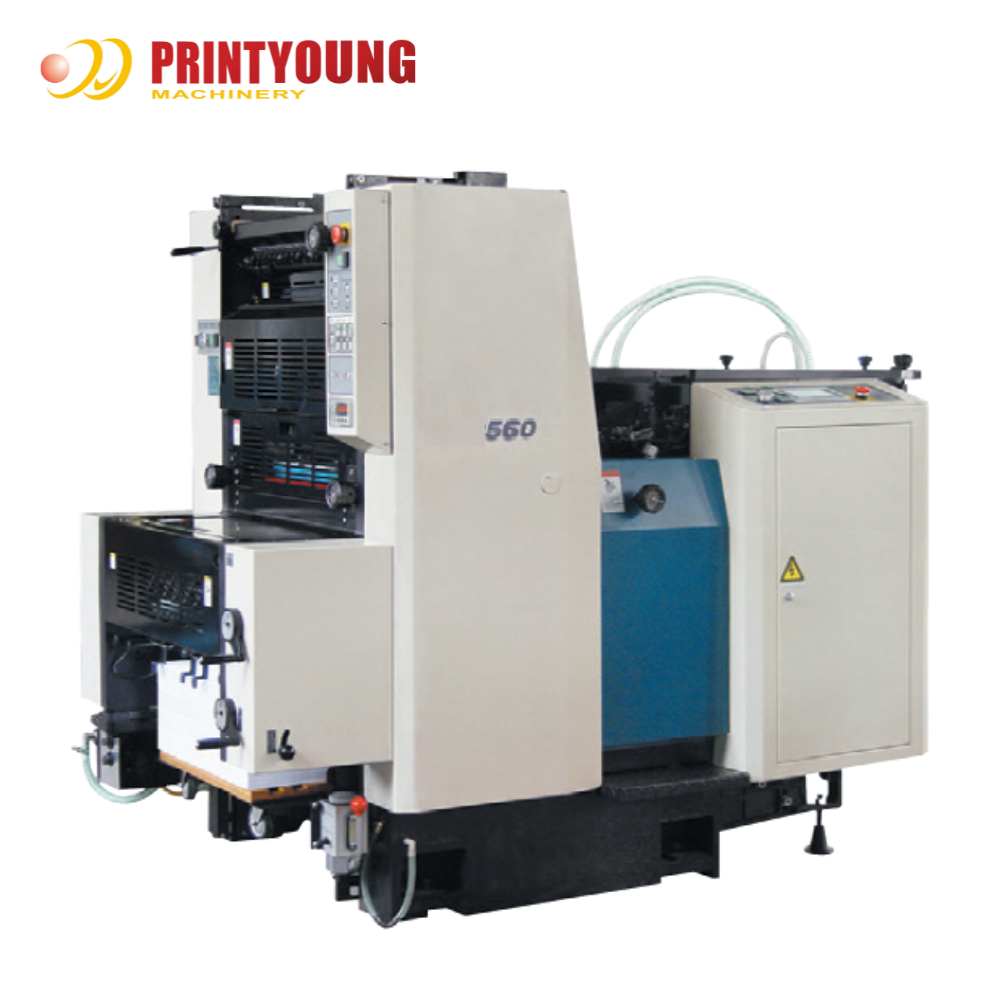

PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers

PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers
PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-520 , PRY-560
Minimum Order Quantity: 1 Set
Price: USD 29800 ~ 31000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Model: PRY-520 , PRY-560 Max. Paper Size: 520 * 375 Mm , 560 * 395 Mm
Min. Paper Size: 200 * 155 Mm Paper Thickness: 0.04 ~ 0.4 Mm
Max. Printing Area: 505 * 350 Mm , 545 * 375 Mm Printing Speed: 3000 ~ 11000 Sheet/h

PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers 0

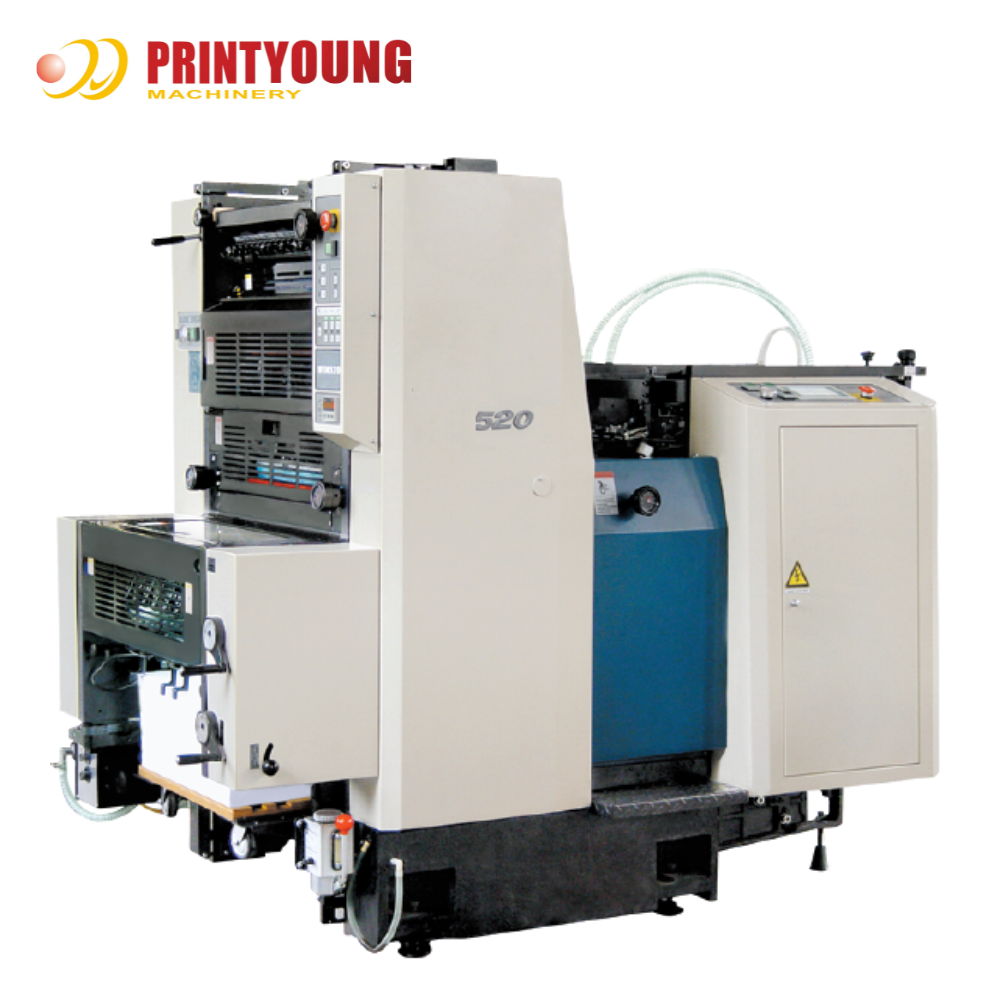

PRY-520 Single Color Offset Printing Machine
PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers 1PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers 2
Features
* Heavy duty mechanism structure.Cast iron pedestal,frame,cylinders etc. have the good in-tension and tenacity,ensuring high stability and good printing impression.
* Under-swing feeder equipment,especially for high speed printing.
* Paper fed continuously and stably,suitable for high speed printing.
* Special design in paper board,front lay,gripper and the other equipments.
* Plate cylinder and blanket cylinder go through with the bearer,running stably,ensuring qualified printing image.
* Fast Positioning plate mounted and tension equipment.
* Double spring gripper,getting rid of paper slid,ensuring the same gripper pressure during the long time printing work.
* Pneumatic control system,ensuring the press more stably.
* High precision imported bear,ensuring cylinder impression even in the high speed rotation.
* Chromed cylinder,prolongs the operation life.
* Operators are safe due to the installation of safety guard,adjustment door and protecting shield.
* PLC device and touch-screen operating.
Technical Parameters
Model PRY-520 PRY-560
Max. Paper Size
520 * 375 mm
 560 * 395 mm
Min. Paper Size
200 * 155 mm
 200 * 155 mm
Paper Thickness
0.04 ~ 0.4 mm
 0.04 ~ 0.4 mm
Max. Printing Area
505 * 350 mm
 545 * 370 mm
Printing Speed
3000 ~ 11000 sheet/h
 3000 ~ 11000 sheet/h
Plate Size
510 * 400 mm

Plate Thickness
0.3 mm

Blanket Type
straight-edge board rubber blanket

Blanket Size
528 * 437 * 1.9 mm

Under Blanket Size
505 * 389 * 0.6 mm

Feeding System
rotary type stream feeder

Feeding Pile Height
550 mm

Delivery System
chain delivery

Delivery Pile Height
400 mm

Infeed System
underswing gripper and paper feed drum

Number of Rollers
ink rollers:17 , water rollers:5


Registration System
pull side guide,drop-away front lay (diagonal adjustment possible)

Vertical Image Adjustment Range
± 20 mm

Vertical Image Micro Adjustment Range
± 1 mm

Lateral Image Micro Adjustment Range
± 2.5 mm

Oiling System
Centralized oiling system

Power
3 Phase 380V 50Hz
 3 Phase 380V 50Hz
Wattage
4 kw

Motor Wattage
main motor 3 kw , pump motor 0.75

Dimensions
1910 * 1180 * 1620 mm
 1910 * 1220 * 1620 mm
Net Weight
2000 kgs
 2300 kgs
PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers 3
PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers 4
PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers 5
PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers 6
PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers 7
PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers 8
PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers 9
