Automatic Non Woven Flexo Printing Machine Graphic High – Graded

Basic Information
Place of Origin: China
Certification: CE
Model Number: RY320-A
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Printing Speed: 60m/min Printing Color: 5 Colours
Max Web Width: 320mm Max Printing Width: 310mm
High Light:

flexo printing press


sticker printing machine

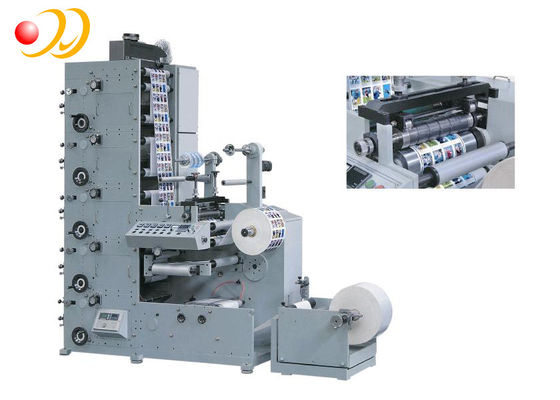

Automatic Non Woven Flexo Printing Machine Graphic High – Graded



Specifications :



Printing speed 60(m/min)
Printing color

5 color

Max web width 320mm
Max printing width 310mm
Max unwind diameter 600mm
Max rewind diameter 550mm
Printing girth 175-320mm
Overprint Precision ±0.1mm
Can add UV drying units 5(Group5)
Overall dimensions (L×W×H) 200×1500×3000mm
Machine weight About2000kg




1. The main motor adopts imported converter to govern in a steepless way .
2. Feeding and discharging are controlled through magnetic powder brake and clutch (Japanese Mitsubishi aut tension controller) .
3. Unhindered system is controlled by auto –rectify sensor.
4. Adopt ceramic mesh distributor roller, which is characterized by durability , wear resistance, and corrosion resistance, The doctors can be Used, which is more efficient for reducing the times for changing in order to increase the production efficiency.
5. The printing unit can register in 360degrees. Each printing unit can indepen deftly gear and loosen to have the units continue printing.
6. The printing units are all equipped with a group of infrared dryers respectively .
7. Each IR dryer device of printing unit can interchange of UV dryer device.
8. The roofing device is adopted with a group of infrared dryers respectively.
9. The inking roller can automatically fall off at stoppage and transfer at low speed in order to keep the ink from being bry and solid.
10. The roll feeding, printing, auto infrared drying. Laminating and rolling can be processed in one processing. Lt is characterized by wide application, non-population of printing ink and fast drying, quick printing. So it is an ideal printing machine for the commercial bill to print high –Graded free adhesive trademark.
