PRY4-1000 Four Colors Flexo Printing Machine

PRY4-1000 Four Colors Flexo Printing Machine
PRY4-1000 Four Colors Flexo Printing Machine
PRY4-1000 Four Colors Flexo Printing Machine PRY4-1000 Four Colors Flexo Printing Machine PRY4-1000 Four Colors Flexo Printing Machine PRY4-1000 Four Colors Flexo Printing Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY4-1000
Minimum Order Quantity: 1 Set
Price: US 30000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Model: PRY4-1000 Printing Material: Paper
Max. Feeding Material Width: 1000 Mm Max. Effective Print Length: 300 ~ 1060 Mm
Max. Mechanical Speed: 110 M/min Max. Printing Speed: 0 ~ 90 M/min
Max. Effective Print Width: 960 Mm Thickness Of Plate (include The Tape): According To User's Request
Machine Power: 50 Kw Machine Size: 5.5 * 2.2 * 3.0 M

PRY4-1000 Four Colors Flexo Printing Machine 0
PRY4-1000 Four Colors Flexo Printing Machine
PRY4-1000 Four Colors Flexo Printing Machine 1
Features
This machine is a printing machine using a photosensitive resin soft plate as a plate material,commonly known as "aniline printing machine","flexographic printing machine", "embossing printing machine","flexo printing machine".Suitable for printing polyethylene, polypropylene,cellophane,plastic film(BOPP OPP PE PVC PET,etc.),non-woven fabric, woven bag,paper and other packaging materials,is food packaging,supermarket handbags,vest bags,clothing bags and other flexible packaging Ideal printing equipment.
Performance and Features:
Assembly of 75mm thick cast iron machine plate.
1.Simple operation, accurate color registration and long service life.
2.Adopt motor,frequency conversion speed regulation,save electricity,small fluctuation of operation.
3.The printing plate automatically stops the ink motor,and the printing device automatically starts the ink discharging device.
4.Adopt special timing belt drive,the printing size is accurate.
5.There is a hair dryer,in which the heating uses a central constant temperature control system and is controlled in groups.
6.The low roll is processed with special steel and processed by special process and electroplated with 10 wire thick hard chrome protective layer.
7.Aluminum alloy guide wheel for hard oxidation,dynamic balance,static balance treatment.
8.With cold air shaping bellows,it can effectively prevent defects such as ink sticking after printing.
9.The printed image is clear and the layering is strong.
Technical Parameters
Main Parameter
Model
PRY4-1000
Printing Material
paper
Max. Feeding Material Width
1000 mm
Max. Effective Print Length
300 ~ 1060 mm
Max. Mechanical Speed
110 m/min
Max. Printing Speed
0 ~ 90 m/min
Max. Effective Print Width
960 mm
Thickness of Plate(include the tape)
according to user’s request
Machine Power
50 kw
Machine Size
5.5 * 2.2 * 3.0 m
Unwinding Unit
Roller Width
1050 mm
Aix Diameter
76 mm
Max. Diameter of Unwind
1200 mm
Unwind Way
automatic pneumatic loading,10kg magnetic powder,automatic tension,EPC
Air Shaft
1 pcs
Traction Unit
Traction Part
alumnium roller and plating roller
Traction Zone
2 zones
Printing Unit
Printing Composition
plating roller,plate roller,anilox roller,rubber roller
Anilox Roller
ceramic anliox roller with single side doctor blade 4pcs
Plate Material
resin plate
Machine Drive
by synchronous belt
Register Color
by manual
Pressure Power
mechanical control
Printing Roller Control Up and Down
automatic hydraulic
Inking Way
ink motor
Heating Unit
Heating Way
electric heating,IR
Heating Zone
2pcs independent heating zone
Heating Power
35 kw
Auxiliary Drying Length
2.5 meter
Blower
1.5kw / 2pcs
Wind Channel
double air return air treatment
Electric Unit
Main Motor
3.7kw / TAIWAN DETLTA
Ink Motor
4pcs
Inverter
3.7kw / TAIWAN DETLTA
Rewind Unit
Roller Width
1050 mm
Aix Diameter
76 mm
Max. Rewind Dia.
1200 mm
Rewind Way
2.2kw independent motor,surface friction winding, automatic pneumatic unloading and tension float roller 2.2kw
Air Shaft
1 pcs
Configuration
1.The fuselage adopts 75mm thick wall panel,increase the balance bar and other enhanced machine stability.
PRY4-1000 Four Colors Flexo Printing Machine 2PRY4-1000 Four Colors Flexo Printing Machine 3
2.The printing stick adopts an enlarged thick steel bar and is plated with a 10 wire thick hard chrome protective layer for polishing.The aluminum alloy guide wheel is subjected to hard oxidation,dynamic balance and static balance treatment.
PRY4-1000 Four Colors Flexo Printing Machine 4PRY4-1000 Four Colors Flexo Printing Machine 5PRY4-1000 Four Colors Flexo Printing Machine 6

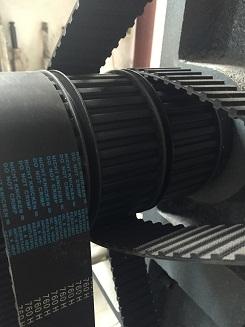

3.High-precision widening synchronous belt drive,low noise when the machine runs at high speed,low vibration makes the machine more stable,the plate roller gear is driven by special helical gear,the printing length of each tooth is 5mm,the printing effect is more stable,the printing length is more precise.

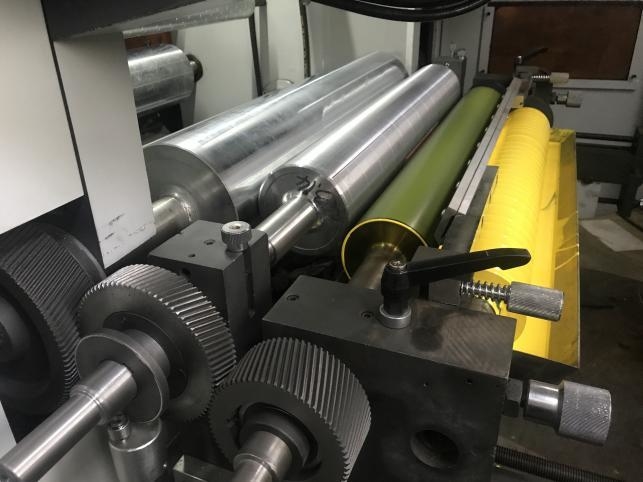

4.Printing unit
PRY4-1000 Four Colors Flexo Printing Machine 7PRY4-1000 Four Colors Flexo Printing Machine 8

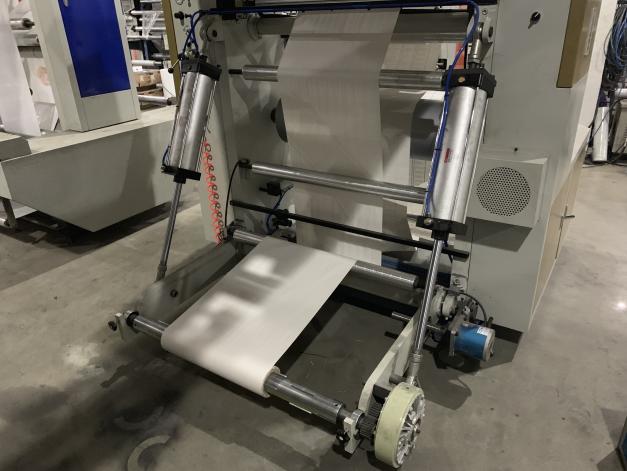

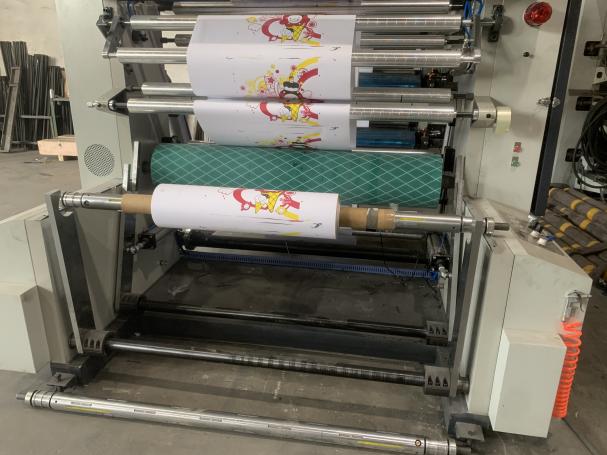

5.Unwind/rewind
PRY4-1000 Four Colors Flexo Printing Machine 9PRY4-1000 Four Colors Flexo Printing Machine 10

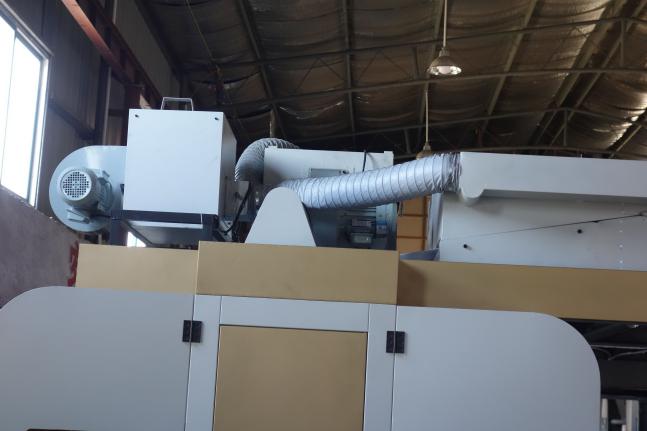

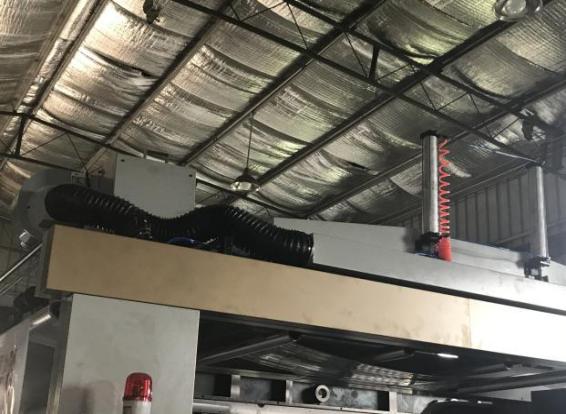

6.Heating unit
PRY4-1000 Four Colors Flexo Printing Machine 11PRY4-1000 Four Colors Flexo Printing Machine 12
PRY4-1000 Four Colors Flexo Printing Machine 13
PRY4-1000 Four Colors Flexo Printing Machine 14
PRY4-1000 Four Colors Flexo Printing Machine 15
PRY4-1000 Four Colors Flexo Printing Machine 16
PRY4-1000 Four Colors Flexo Printing Machine 17
PRY4-1000 Four Colors Flexo Printing Machine 18
PRY4-1000 Four Colors Flexo Printing Machine 19
