Place of Origin: | China |
---|---|
Brand Name: | PRINTYOUNG |
Certification: | CE |
Model Number: | HRY Narrow Web series |
Minimum Order Quantity: | 1 Set/Sets |
Price: | negotiation |
Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
Delivery Time: | 30 working days after received your payment |
Payment Terms: | T/T or western Union |
Supply Ability: | 30 sets per month |
Max.Paper Width: | 340mm | Max. Printing Width: | 330 Mm |
---|---|---|---|
Max.Mechnical Speed: | 152m/min | ||
Highlight: | flexo label printers,flexo printing press |

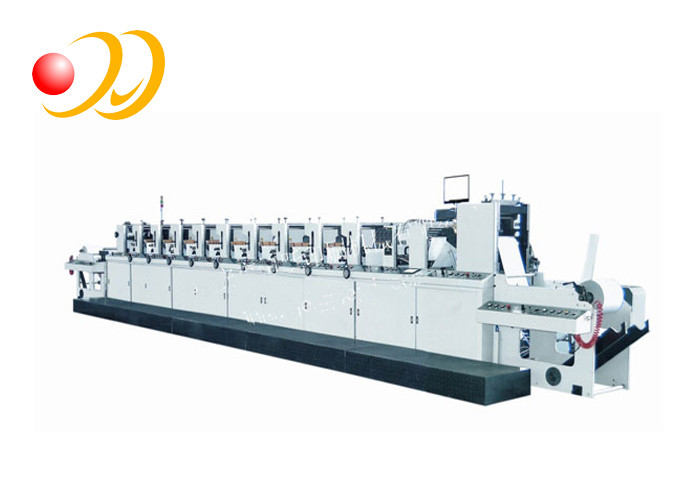

Narrow Automatic Web Offset Printing Machine Multicolor Adhesive Sticker
Specifications :
Model |
HRY330 |
HRY420 |
HRY470 |
Max.Paper width |
340mm |
430mm |
480mm |
Max.Printing width |
330 mm |
430 mm |
480 mm |
Max.Die cutting width |
330 mm |
430 mm |
480 mm |
Repeat printing length |
178mm-508mm |
203.2mm-635mm |
203.2mm-635mm |
Repeat die cutting length |
178mm-508mm |
203.2mm-635mm |
203.2mm-635mm |
Max. Unwind diameter |
1016mm |
1016mm |
1016mm |
Max. Rewind diameter |
1016mm |
1016mm |
1016mm |
Gear size |
1/8CP |
1/8CP |
1/8CP |
Max.Mechnical speed |
152m/min |
152m/min |
152m/min |
Main motor |
5.5-7.5KW |
7.5-11KW |
11-13KW |
Lubrication system |
Automatic |
Automatic |
Automatic |
Air pressure |
100PSI(0.6Mp) |
100PSI(0.6Mp) |
100PSI(0.6Mp) |
Power supply |
380V 3PH 50HZ |
380V 3PH 50HZ |
380V 3PH 50HZ |
Introduction:
HRY series flexographic printing press is improved from abroad advance technique,it is a unit-type press
which has reached the advanced world level.This press adopts PLC ;and equipped with advanced
automatic tension controlling system,rectifying system,IR/UV drying system as well as image inspecting
system. All of those equipments ensure the accurate registration and perfect artwork. What’s more,it can
be assembled (based on customers‘ demand) with varieties of functional system,such as non-stop unwind and rewind system,colding,rotary die cutting,creasing,embossing,sheeting,slitting,waste-edge rewinding,vacuum waste-removal,stripping-printing- lamination for sticker,double side printing, continuous-line gravure printing/screen printing,laminating,stamping,hole-punching,folding. This press has its super connectivity with most related devices.
