Sheet Fed 2 Color Offset Printing Machine For Book Magazine For Pictorial Graph

Basic Information
Place of Origin: China
Certification: CE
Model Number: PRY- 2660
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Machine Speed: 12000s.p.h Maximum Sheet Size: 540×660mm
Minimum Sheet Size: 273×393mm Sheet Thickness: 0.06-0.6mm
Maximum Image Area: 528×650mm Blanket Size: 740×680×1.9mm
Max. Feed Height: 940mm Max. Print Size: 528×650mm(avaliable468×650mm)
High Light:

sticker printing machine


auto print offset machine

Sheet Fed 2 Color Offset Printing Machine For Book Magazine For Pictorial Graph


Quick Detail

Sheet fed 2 color offset printing machine adopts mature modular design technology , Integral rigid frame ,

the host, water roller and ink roller frequency control , more energy efficient.Double impression , transfer roller reduce printing stock curl ,which is useful for printing and packaging.





Machine speed


Maximum sheet size


Minimum sheet size


Sheet thickness


Maximum image area


Plate size


Blanket size


Maximum feeder pile height


Maximum delivery pile height


Machine overall dimension


Total power of motors






1. The semi APC (Automatic Plate Changer) shortens the make-ready time.

2. To preset paper thickness when printing different kinds of paper. To adjust printing pressure in every unit automatically, quickly and synchronously.

3. With non-stop feeder, piles are changed at production speed. It saves a great deal of time when running thick paper and long version work offline.

4. It is equipped with CC-LINK technological bus module from Mitsubishi.

5. The plate cylinder can be adjusted in the circumferential direction, lateral direction and diagonal direction.

6. There are five rollers on the plate cylinder. There is an intermediate roller in alcoholic damping system, which eliminate the “ghost” image, achieve the quick ink-water balance and reduce paper consumption.

7. There are 21 zones in split (staggered) ductor. The press memory or job memory card (disk) contains the current job. Changes and settings made to the current job are transferred to the press. While in printing mode, you can enter the presetting values for next job into the press memory or stored to a disk.



Double-diameter impression cylinder and transfer drum can reduce the times of sheet take-over between print units.

Alcohol dampening system composed of five roller structure and shifting intermediate roller , effectively reduce ghosting

Centralized control of DC electric pull plate control in three directions , convenient and quick calibration of four color plate , reduce printing time


Details of Image

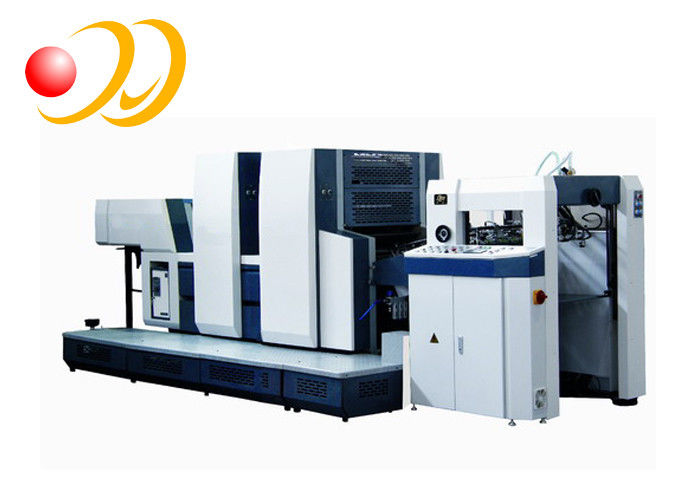

Sheet Fed 2 Color Offset Printing Machine For Book Magazine For Pictorial Graph 0
