| Place of Origin: | China |
|---|---|
| Brand Name: | PRINTYOUNG |
| Certification: | CE |
| Model Number: | XHR Series |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 30 sets per month |
| Max. Printing Width: | 150mm | Max. Printing Length: | 108-400mm |
|---|---|---|---|
| Printing Speed: | 0-70m/min | Unwinding Roll Diameter: | Ф400mm |
| Rewinding Roll Diameter: | Ф400mm | ||
| High Light: | flexo printing press,sticker printing machine |
||

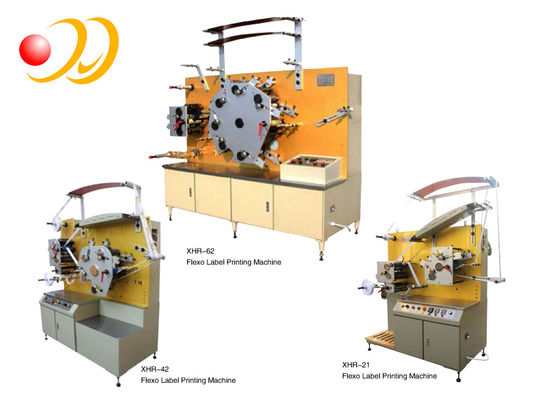

Self - Adhesive Flexo Label Printing Machine Automatic 6 Color CE
Specifications :
| Max. printing width | Max. printing length | Printing speed | Unwinding roll diameter | Rewinding roll diameter |
| 150mm | 108-400mm | 0-70m/min | Ф400mm | Ф400mm |
| Model | XHR62 | XHR52 | XHR42 | XHR41 | XHR40 | XHR32 | XHR31 | XHR30 | XHR22 | XHR21 | XHR20 |
| Printing color | 6+2 | 5+2 | 4+2 | 4+1 | 4+0 | 3+2 | 3+1 | 3+0 | 2+2 | 2+1 | 2+0 |
| Weight | 950KG | 700KG | 650KG | 550KG | 500KG | ||||||
| (LxWxH) mm | 1960x800x2000 | 1550x750x1850 | 1300x750x1800 | ||||||||
| Printing color | 4.2kw | 3.5kw |
|||||||||
Introduction:
The printing principle of the Flexo Label Printing Machine is to transfer the ink from the high precision anilox roller to plate, then from the plate to the printing materials. It can make stable and high speed printing on cloths, ribbons and paper rolls with the printed result of thick and solid ink layer and good fastness．The plate cylinder of di erent circumferences can be replaced, so that to change the printing length. The machine is equipped with two sides printing tension control mechanism, make it more accurate.
