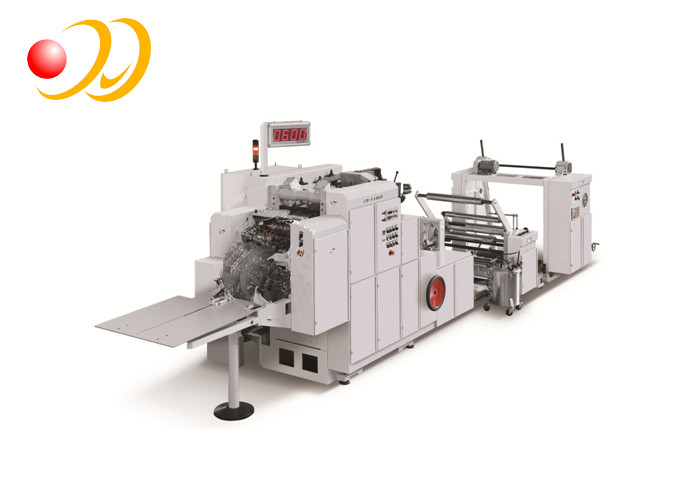

Fast Fixed - Size Paper Bag Making Machine Multi - Function With Window

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: ZD-FJ06D
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Paper Roll Width: 525mm Max. Paper Roll Diameter: 1200mm
Max.Production Speed: 500bags/min Paper Thickness: 55~70g/m2
High Light:

cloth bag making machine

,

shopping bag making machine

Fast Fixed - Size Paper Bag Making Machine Multi - Function With Window



Specifications :





Model ZD-FJ06D
Ppaer Roll Width 525mm
Max. Paper Roll Diameter Ф1200mm
Material Core Diameter Ф76mm (3’’)
Paper Thickness 55~70g/m2
Tube Length 380mm
Bag Body Width 154mm
Bag Bottom Size 100mm
Max. Production Speed 500bags/min
Total Power 8.4kw
Total Weight Approx. 5500kg
Overall Dimension L7500mm×W2250mm×H1800mm



Description :



This machine is designed to manufacture square bottom paper bags without handles from paper roll, and it is an ideal equipment for producing small fixed-size paper bags in extremelyfast speed.This machine can implement steps including paper feeding, tube forming, tube cutting and bottom forming inline in incredible speed, so as to effectively save labor costs.The equipped photoelectric detector can correct cutting length automatically, so as to ensure cutting precision. The equipped OMRONPLC system ensures that the stable performance can be kept even if the machine is running in various working environments.This machine can process very thin paper, as well as produce paper bags exceedinglyfast, thus this machine is especially suitable for being applied in massive productions of food industries.



Features:

1.  This machine can produce paper bags in extremely fast speed (500 bags/min at MAX.).

Fast Fixed - Size Paper Bag Making Machine Multi - Function With Window 0

2.  This machine can process thin paper for paper bags (paper thinkness:55~70g/㎡).
