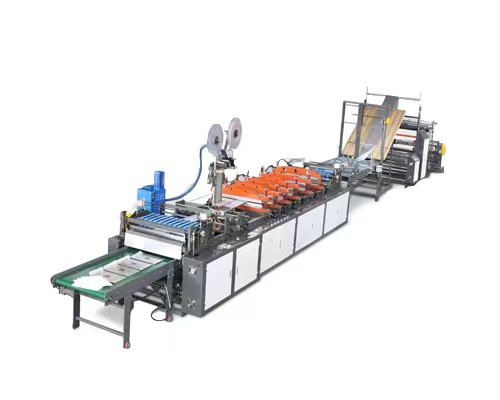

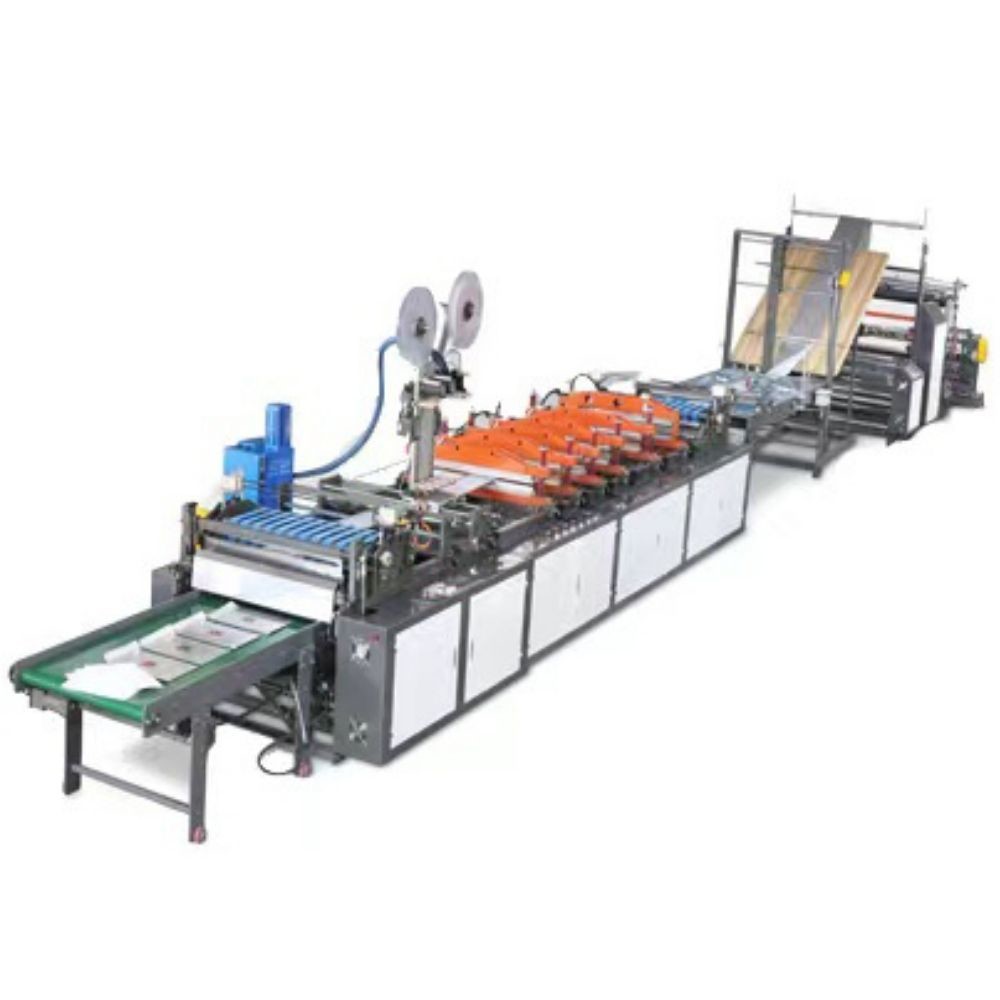

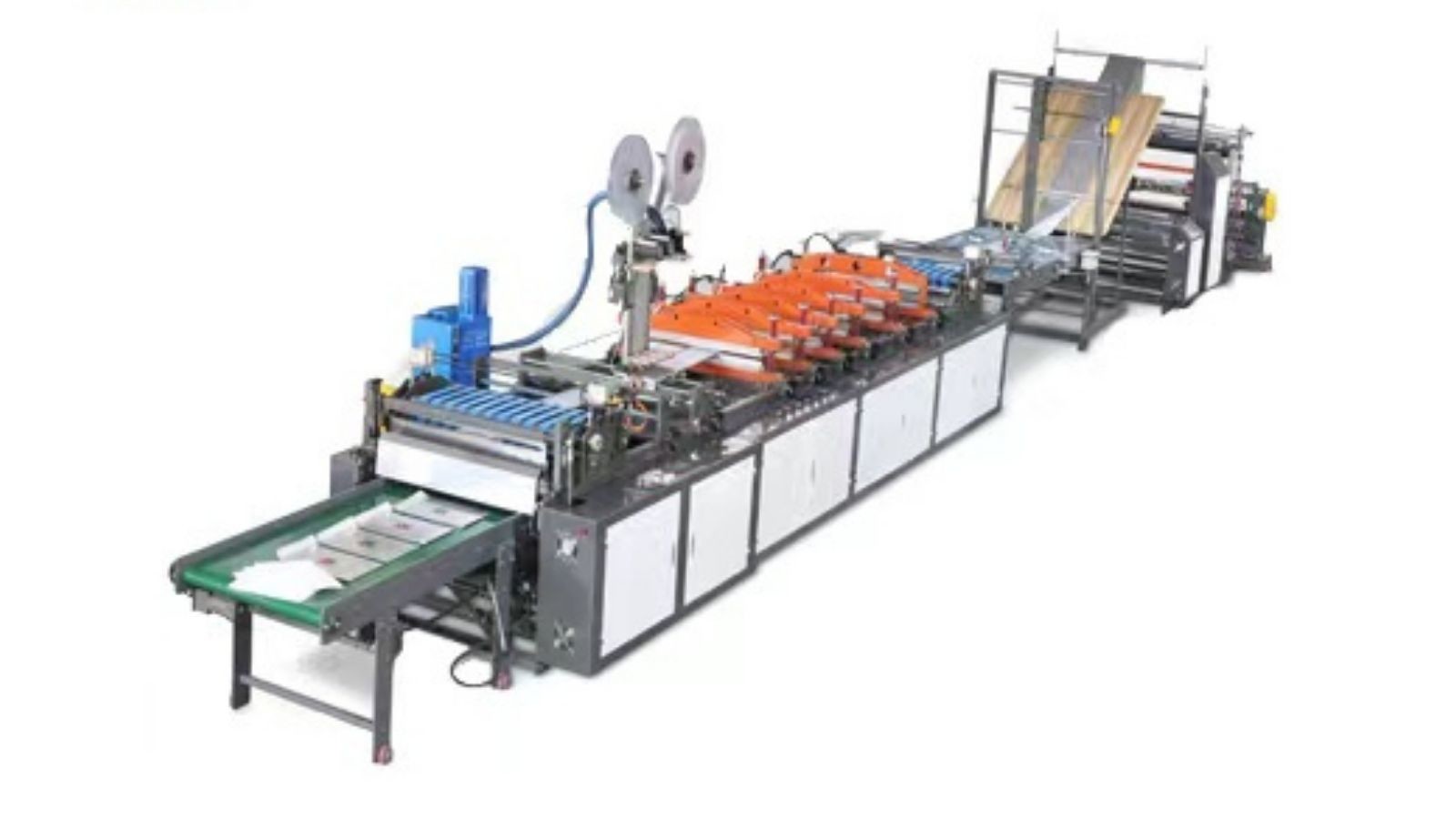

Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal

Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal
Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal
Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-600
Minimum Order Quantity: 1 Set
Price: US 45000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Model Number: PRY-600 Voltage: 380V, 3phase AC380V 50Hz
Dimension: 15000*2100*2000 Mm Weight: 4000 KG
Max Speed: 120pcs/min Application Materials: Laminating Kraft Paper(85-140g),Pearlized Film,MPET
MAX. Feeding Diameter: Kraft Paper 600mm, Bubble Film 1200mm MAX. Feeding Width: Paper≤ 1200mm,bubble Film ≤1200mm
MAX. Bag Size: ≤600mm(including The Tongue Of Bag) MAX.bag Width: ≤550mm
Speed Of Bag Making: 60-120pcs/min(double Speed Of Small Lbag) Total Power: 30KW
Machine Size: 15000*2100*2000 Mm Machine Weight: 4 Tons
Highlight:

Laminated Kraft Paper Bag Making Machine

,

Automatic Kraft Bubble Envelope Making Machine

,

120pcs/Min Envelope Making Machine

Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal 0
PRY-600 Kraft Bubble Envelope Making Machine
Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal 1
Technical Parameters
PRY-600 Kraft Bubble Envelope Making Machine
Application Materials
Laminating Kraft paper(85-140g),Pearlized film,
MPET Aluminum film+air bubble film(25-150g), bubble bag
MAX. Feeding Diameter
Kraft paper Φ600mm, bubble film Φ1200mm
MAX. Feeding Width
paper≤ 1200mm , bubble film ≤1200mm
MAX. Bag Size
≤600mm(including the tongue of bag)
MAX. Bag Width
≤550mm
Speed of Bag Making
60-120pcs/min(double speed of small lbag)
Total Power
30KW
Voltage
3phase AC380V 50Hz
Machine Size
15000×2100×2000 mm
Machine Weight
4 Tons
Configuration
Computer Controled:Motion controller is the main control of the whole machine,5.7 inches Touch machine interface and two servo motors(it can fix length,automatic counting, early warning,set number to stop automatic,number display,and high parking).
The Way to Pull the Material:Adopt servo and tension system,The servo adopts the belt clamping method to determine the long pull material.
Forming Unit:Fold the composit bubble roller,Equipped with photoelectric pneumatic micro-pull correction; mechanical pressure mode,It is equipped with 4 sets of wide-line cross-seal device.A set of cold pressing device,the sealing knife can move forward and backward,and the width of the sealing knife is 20mm.
Feeding Part:Adopt active following feed,Control material follows feed,The feeding speed is adjusted by vector frequency conversion,Feed motor with gearbox.
Feeding Part:Magnetic powder,homotaxial.
Equipped with Italian Diss Electric Eye Tracking Device.
In Order to Prevent the Stacking of the Finished Product Conveyor Belt is 1.5 Meters.
Hot Melt Glue Spray Machine.
Applications
This machine used to make the mail bag from kraft paper and poly bubble lining.It combine coated kraft paper together with that PE bubble film by the heating jumbo roll.Be formed under the first press of the horizontal heat-seal bar,then after a second press of the cooling bar will be more even and firm,at last be cut at the fixed length to be the finished mail bag.
Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal 2 Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal 3 Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal 4
Paper bubble mailer                     poly bubble mailer(OPP+PE)                     PE bubble mailer
Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal 5
Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal 6
Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal 7
Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal 8
Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal 9
Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal 10
Automatic Kraft Bubble Bag Poly Mailer Envelope Making Machine Two Side Seal 11
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
