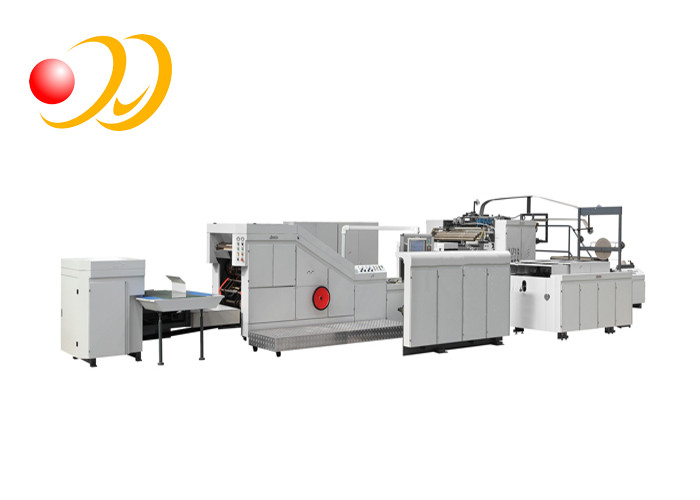

Flat Bottom Grocery Cloth Bag Making Machine For Pharmacy

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: ZD-QFJ08/13
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Paper Roll Width: 430~770mm Paper Thickness: 45~140g/m2
Max.Production Speed: 150bags/min Bag Bottom Size: 50~140mm
High Light:

cloth bag making machine

,

shopping bag making machine

Flat Bottom Grocery Cloth Bag Making Machine For Pharmacy





Specifications :





Model ZD-QFJ08 ZD-QFJ13
Paper Roll Width 430~770mm(310~770mm) 450~970mm
Max.Paper Roll Diameter ф1200mm  ф1200mm
Material Core Diameter ф76mm(3’’) ф76mm(3’’)
Paper Thickness 45~140g/m2 60~170g/m2
Bag Body Width 150~220mm (90-220mm) 200~320 mm(150~320mm)
Paper Tube Length 230~370mm(220-470mm) 270~430mm(270~530mm)
Bag Bottom Size 50~140mm 60~150mm
Handle Rope Height 110mm 110mm
Handle Rope Diameter ф4~ф6mm ф4~ф6mm
Handle Patch Length 114.3mm 152.4mm
Handle Patch Width 40~50mm 40~50mm
Paper Patch Roll Diameter ф1200mm ф1200mm
Paper Patch Roll Width 80~100mm 80~100mm
Paper Patch Thickness 110~250g/m2 110~250g/m2
Max. Production Speed 150bags/min(220bags/min) 135bags/min(220bags/min)
Total Power 28kw 38kw
Total Weight Approx. 15000kg Approx. 16000kg
Overall Dimension L11000mm×W4000mm×H1800mm L13000mm×W6000mm×H2600mm



Description :





This machine is designed to manufacture square bottom paper bags with handles from paper roll, paper patch roll and paper rope, and it is an ideal equipment for producing paper handbags fast. By implementing steps including handle making, handle application, tube forming, tube cutting and bottom forming within a fully automatic process, this machine can effectively save labor costs. The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. SIEMENS PLC system and adjustable dual-moulds structure, ensure that the machine can perform quickly and stably, as well as reduce adjusting time for different bag sizes. Special bags collection platform and counting function, improve packing efficiency of paper bags packing. Thanks to perfect technologies and fast production speed, this machine can produce paper handbags with high quality in many different forms, which are especially suitable for food and clothing industries.





 Features:

1. Adjustable dual-moulds structure (own proprietary technology) is applied on the machine, so that users can adjust bag size directly on the machine, which greatly reduces bag size adjusting time and increase production capacity.

Flat Bottom Grocery Cloth Bag Making Machine For Pharmacy 0

2.  SIEMENS PLC system ensures that the adjustment of cutting length can be implemented directly on touch screen, meanwhile brings efficient and stable production.

Flat Bottom Grocery Cloth Bag Making Machine For Pharmacy 1
