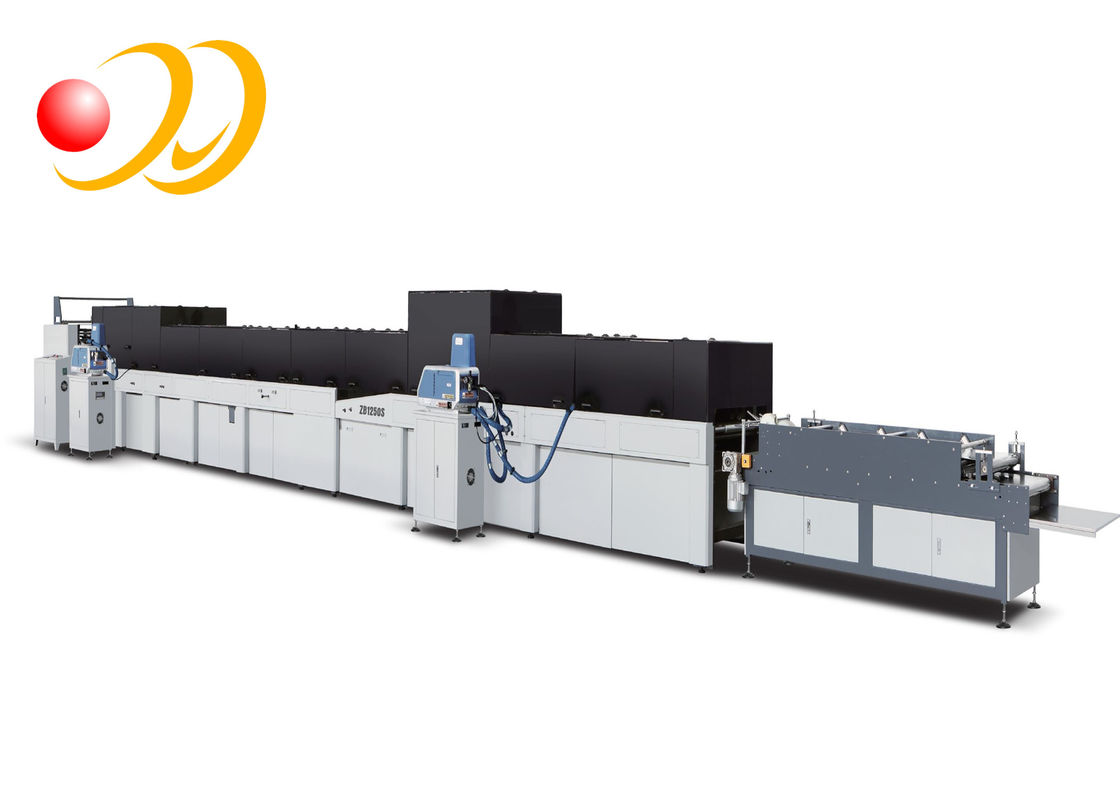

20kw Fully Automatic Paper Bag Making Machine CE Certificated

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY1250S- 450
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Max.sheet: 1200x600mm Min.sheet: 600x350mm
Sheet Weight: 200g-350gsm Bottom Width: 80-180mm
Bag Width: 180-450mm Speed: 50-80bags/min
High Light:

hand bag making machine

,

cloth bag making machine

20kw Fully Automatic Paper Bag Making Machine CE Certificated





Specifications :







Max. sheet (LX W)

1200x600mm

Min. sheet (LX W)

600x350mm

Sheet Weight

200g-350g/m 2

Bottom Width

80-180mm

Bag Width

180-450mm

Total Power

20kw

Machine Size

18200x2400x1800mm

Speed

50-80bags/min

Total Weight

8T

Glue Type

Water soluble cold glue (hot-melt glue)



Description :



PRY1250S-450 fully automatic sheet-feeding paper bag making machine(Adopt Italy technology)is suitable for the mass bag production, it is the first choice of medium and top grade handbag device.This product adopts mechanical, electricity, light, gas integration technologys,combine a number of its proprietary technology,use the creased sheet paper as raw material ,can one time  finish: paper feeding,positioning,top folding, tube forming,gusset forming,bottom opening, bottom cardboard inserting and bottom gluing automatic, then compaction output.adopt the PLC programmable control,frequency control technology to realize the integral multi-dimensional control,more centralized control and single point remote control operating . with characteristics of good quality and high efficiency,its technology ranks leading level in domestic similar products.



Suitable paper :



A

B

C

D

E

Max. Size
Min. Size

1200
600

600
350

180
80

450
180

500
250

Suitable Paper: Kraft paper, White cardboard paper
(including film adhesive paper)

20kw Fully Automatic Paper Bag Making Machine CE Certificated 0



Machine configuration :



20kw Fully Automatic Paper Bag Making Machine CE Certificated 1

1. Feeder : enhanced prestack paper feeder to realize non stop paper feeding,greatly save the time to load and adjust raw paper.
2. Front and side guides positioning system
3. Top folding system
4. Both water soluable cold glue and hot melt glue

5. formation version making gusset system

6. insert reinforced paper system
7. bottom spray gluing system
8. Automatic bottom sealing system
9. confirguration bags compaction table



Technological process :

20kw Fully Automatic Paper Bag Making Machine CE Certificated 2

Selection and other

20kw Fully Automatic Paper Bag Making Machine CE Certificated 3

Feeder : enhanced prestack paper feeder to realize non stop paper feeding,greatly save the time to load and adjust raw paper.

20kw Fully Automatic Paper Bag Making Machine CE Certificated 4

Optional comfiguration Nordson hot melt adhesive system : fast adhesion product ,quickly enter the next process
