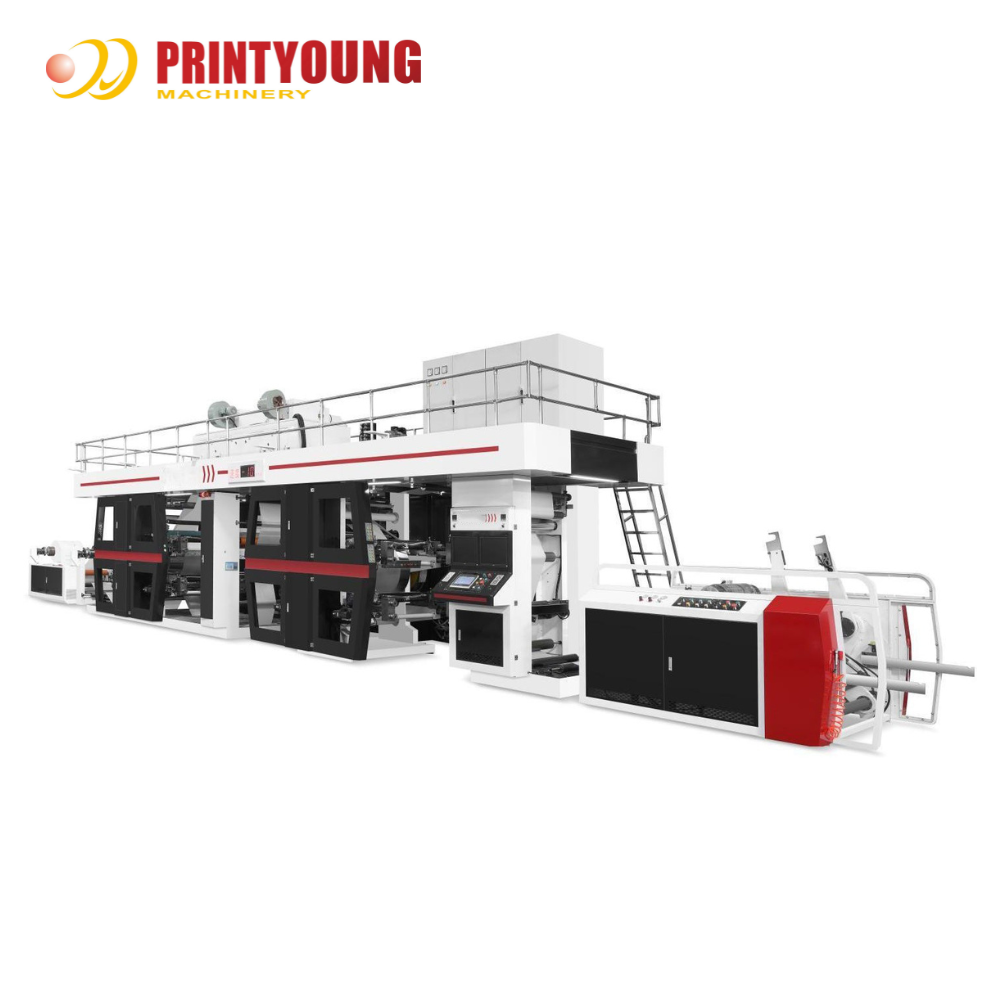

CI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP Woven

CI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP Woven
CI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP Woven
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: CI4+4-1000
Minimum Order Quantity: 1 Set
Price: USD 188000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per Month
Contact Now
Number Of Printing Station: 4+4 Max. Web Width: 1050 Mm
Max. Printing Width: 900 Mm Printing Repeat: 400 ~ 1300 Mm
Max. Mechanical Speed: 300 M/min Max. Printing Speed: 50 ~ 250 M/min
Register Precision: Longitude:±0.15mm ; Transverse:±0.15mm Plate Thickness + Tape Thickness: 1.14mm + 0.38mm Or To Be Specified

CI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP Woven
Economic CI Flex Printing Machine
CI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP Woven
CI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP Woven
Technical Parameters
Number of Printing Station
4+4(full width,front print 4 color,back print 4 color)
Max. Web Width
1050 mm
Max. Printing Width
900 mm
Printing Repeat
400 ~ 1300 mm
Max. Mechanical Speed
300 m/min
Max. Printing Speed
50 ~ 250 m/min
Register Precision
Longitude:±0.15mm ; Transverse:±0.15mm
Plate Thickness + Tape Thickness
1.14mm + 0.38mm or to be specified
Heat Source
Electrical Elements
Electrical Supply
3Phase , 380V , 50Hz or to be specified
Ink
water basedink or solvent ink
Main Control
PLC
Configuration

Substrates

PP woven

Double Station Unwind Unit

- Double station unwind.
- Max. roll diameter:Φ1500mm.
- Central drive in unwind,equipment with Magnetic powder brake.
- With auto tension control:adopt with light floating roller to control.Tension automatic compensation,closed-loop control,low friction cylinder position check measurement, precision pressure regulating valve control,roll diameter reached the set value can automatically alarm or stop.
- It has the function of automatic stop when the material is broken and maintaining the tension when the material is stopped,so as to avoid the loose and deviation of the substrate when the material is stopped.
- Automatic side deviation correction:set up the whole operation before printing four-roll automatic EPC ultrasonic probe correction system with hand dynamic/automatic/center return function,left and right translation can be adjusted ±65mm.
Printing Unit
Number of Printing Decks
4+4 (full width,front print 4 color,back print 4 color)
Suitable Ink
Water-based ink or Oil-based ink
Printing Plate
Resin or Rubber
Doctor Blade
Chamber doctor blade with ink pump
Anilox Roller
Ceramic Anilox roller 8pcs LPI to be specified
Printing Cylinder Rise and Downs
Automatic hydraulic control system controls the
rise and down of the printing cylinder
Printing Pressure
Mechanical adjust
Color Register Method
Motorized longitudinal registration and
Motorized Transversal registration PLC control
Diameter of Central Drum
Φ800mm
CI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP WovenCI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP Woven
Printing Cylinder--8pcs
※Within 40cm in the machine.
※Printing repeat : 500-1100mm.
Ceramic Anilox Roller--8pcs
※Control the thickness of ink,transfer ink evenly.
※Improve the printing quality.
※Automatic mixing the ink when halt machine,avoid the ink dry.
CI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP WovenCI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP Woven
Central Drum--2 sets
※Diameter:Φ800mm.
※For the best color registration, with the central impression configuration,the printed material is supported by the cylinder and greatly improving color registration especially with extensible materials.
※Surface of central press roller with constant temperature.
※central Drum with water cooling system.
Chamber Doctor Blade with Ink Pump--8pcs
※With two way cycle ink pump,no spill the ink,even the ink,save the ink.
※Special for high speed printing prevent the ink splashing.
※Improved the printing quality.
CI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP Woven
Registration
※Motorized longitudinal registration.
※Motorized transversal registration,PLC control.
CI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP Woven
                                    Registration PLC Control                                                            Hydraulic Station
CI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP Woven
Overhead crane,easy to lift the materials,cylinders and rollers
Motorize printing group move forward and backward

Heating & Drying Unit

* Electric heating is adopted,which is converted into circulating airflow heating through heat exchangers.The temperature control adopts intelligent temperature controller,non-contact solid state relay,two-way control,adapts to different processes and environmental production,saves energy consumption,realizes PID temperature control,and the temperature control accuracy is ± 2°C.
* The independent fan of the oven enters the air,and the independent fan exhausts the air. By controlling the air inlet of the fan.It is supplemented by adjusting the air door to obtain the best process wind speed and air pressure,which can better improve the thermal efficiency of the drying oven and save energy consumption.The opening and closing of the oven adopts cylinder control opening and closing,equipped with protective rods and drying tunnel aisle platform additional hot air withdrawal function.
Double-sided air blowing, hot air drying, cold air setting and drying faster.
Dryer Between Each Color
electrical heat drying
Blower
2.2kw x 2pcs
Power of Heating
35 kw

Video Inspection

* Resolution:1280*1024
* Magnification:3-30 (referring to area magnification)
* Display:mode full screen
* Image capture interval:automatically determine the image capture interval based on the position signal of the PG encoder/gear sensor
* Camera inspection speed:1.0m/min
* Inspection range:according to the width of the printed matter,it can be set arbitrarily,and can be monitored at fixed points or automatically back and forth
* Check the printing quality on the video screen

Traction Unit

Constitution of Traction:Aluminum roller,chrome plated roller.
Traction Zones:Unwind and rewind part.
Double Station Rewind Unit
* Double working position surface friction winding,configuration servo cutter,stable section length
* Tension control adopts super light floating roller control,tension automatic compensation, closed loop control,taper tension arbitrary setting(Low friction cylinder position detection, precision pressure regulating valve control,roll diameter reached the set value can automatically alarm or stop)
* Air shaft 8’’-2 pcs
Ancillary Equipment
* Series of tools.
* Emergency stop buttons on the printing section as well as on the reel stand.
* Temperature control for drying.
* One hydraulic power unit complete with necessary valves, motor, gauges and tanks.
* Acoustic alarm activated on start of machine.
* Guards to be provided for all rotating parts and other areas which could cause a hazard to the operator.
CI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP Woven
CI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP Woven
CI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP Woven
CI4+4-1000 Economic 4 Colors Full-Automatic High-Speed Flexo Printing Machine for PP Woven
