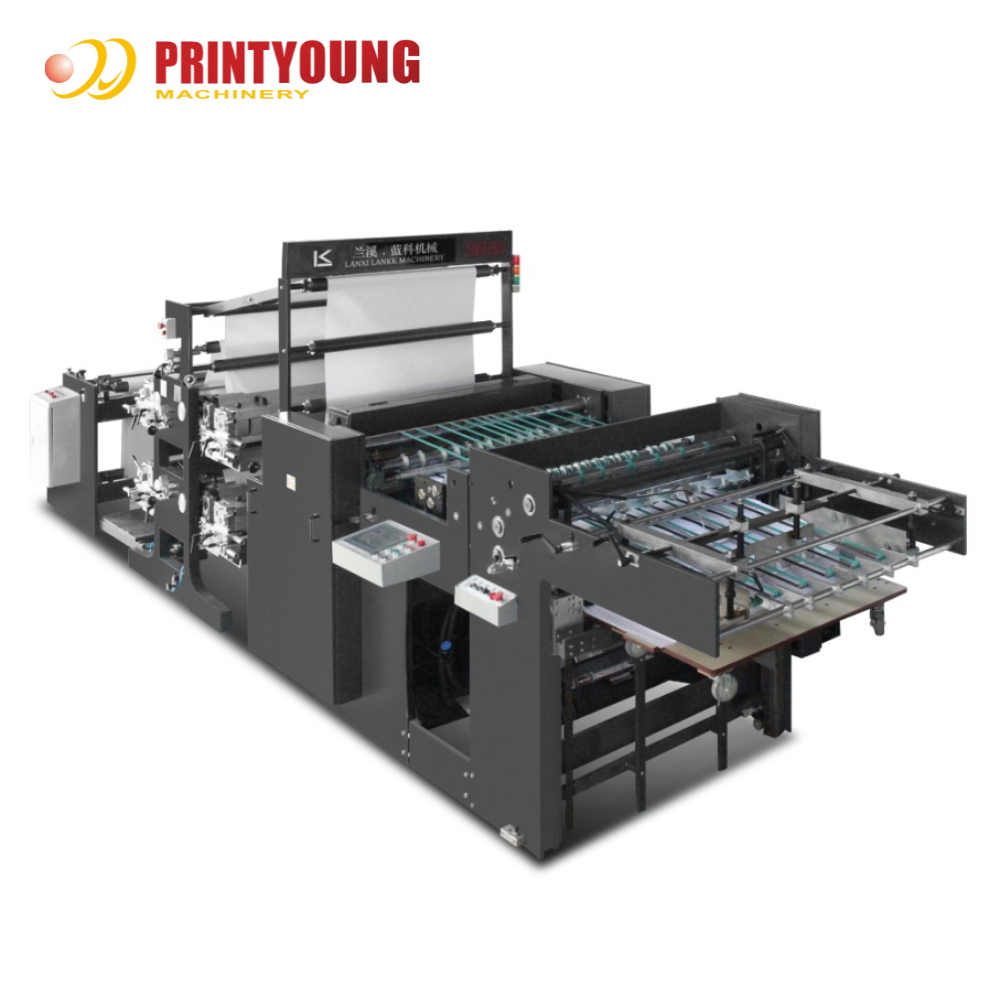

PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed

PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed
PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-1020A
Minimum Order Quantity: 1 Set
Price: USD 68000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
The Maximum Diameter Of The Roll: 1300 Mm The Width Of The Paper: 680 ~ 1020 Mm
Applicable Paper Weight: 50 ~ 130 G/m² Repeat Print Length: 300 ~ 680 Mm
Maximum Printing Width: 1020 Mm Maximum Printing Speed: 300 M/min
Slitting Specifications: 300 ~ 680 Mm Total Power: 30 Kw

PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 0
PRY-1020A High Speed Flexo Printing Machine
PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 1
Features
The machine is controlled by microcomputer,with photoelectric tracking,pneumatic-liquid linkage,human-machine interface touch screen operation,ink-soft plate printing and other high technology.The production line is ideal for printing the inner pages of this book by unrolling and flattening the roll paper,double-sided double-color flexible printing,cutting into single sheets,and collecting the paper into piles on a high platform.The operation of this machine can be completed by one captain only.
Constituent
One set of unwinding sleeves
Double-sided two-color printing
A set of cutting sleeves
A set of high-income part sets
A set of electrical control systems
Technical Parameters
The Maximum Diameter of the Roll
1300 mm
The Width of the Paper
680 ~ 1020 mm
Applicable Paper Weight
50 ~ 130 g/m²
Repeat Print Length
300 ~ 680 mm
Maximum Printing Width
1020 mm
Maximum Printing Speed
300 m/min
Slitting Specifications
300 ~ 680 mm
Total Power
30 kw
Configuration

Unwinding Part

1.Quantity of roll paper: 1pc
2.Paper roll diameter: 1300mm
3.Paper roll width: 1020mm
4.Web lifting: The motor chain lifting method is adopted
5.Tension braking: Magnetic particle braking system is adopted
6.Web clamping method: Adopt air shaft type
7.Tension control system: Fully automatic,floating roller type

Printed Parts

1.Number of process color groups,4 printing color sets,cast iron wall panels,timing belt drive.
2.Manner,single-paper,double-sided,two-colored
3.Printing format: Maximum circumference: 680mm
4.Maximum width: 1020mm
5.Printing speed: Maximum printing speed: 300m/min

Cut the Part

1.Slitting knife shaft 1 set Bed knife: Holder mounting Upper knife: Rotating knife roller + knife blade

2.Traction unit 1 set The traction rollers are steel rollers

   The pressure roller is a rubber roller
   The traction rollers are clamped with cylinders
3.Slitting accuracy
   Cutting length tolerances    +/-1mm<1000mm
   Slope tolerance                  +/-1mm/1000mm

High Yield Paper Components

1.Adopt belt drive to climb and collect vibration

PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 2
PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 3
PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 4
PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 5
PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 6
PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 7
PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 8
