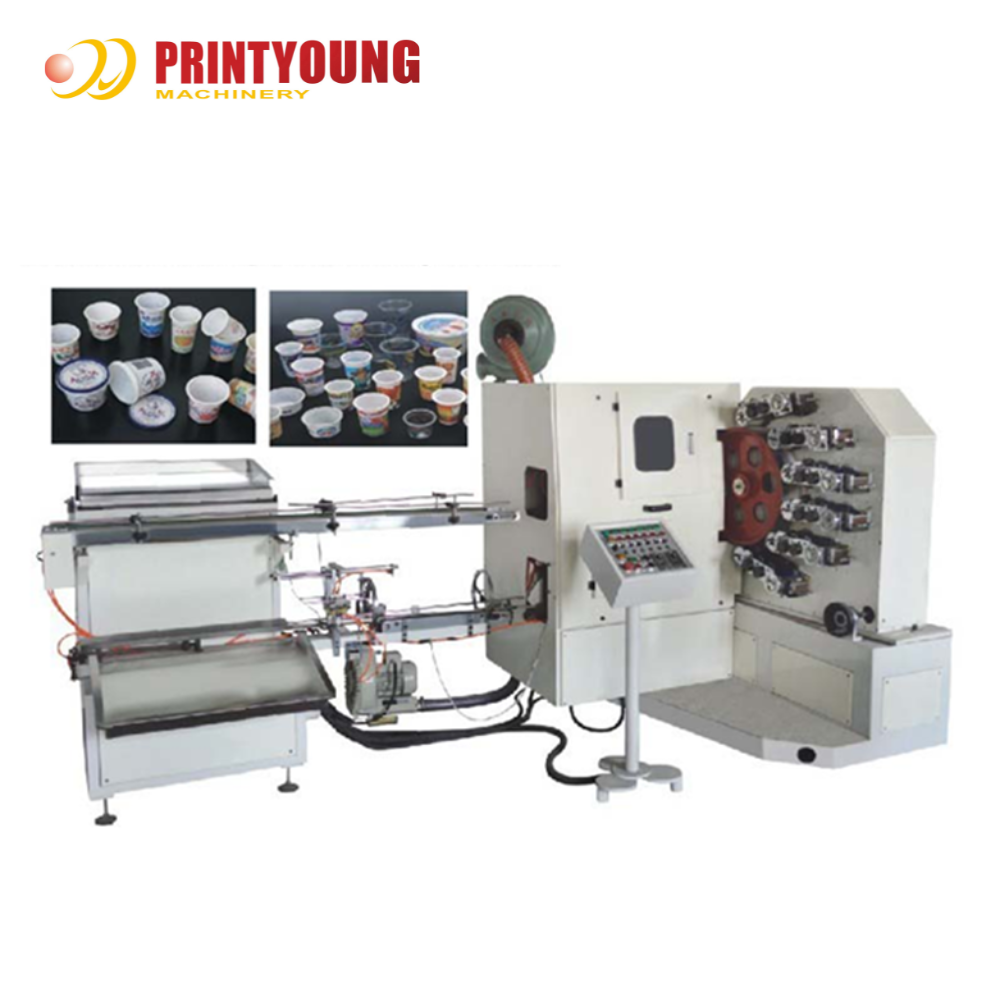

PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine

PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine
PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-4A , PRY-6A
Minimum Order Quantity: 1 Set
Price: USD 2850 ~ 3000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 35 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Model: PRY-4A , PRY-6A Printing Diameter: 40 ~ 95 Mm
Max. Printing Width: 100 Mm Printing Edition Size: 300 * 105 * 1 Mm
Max. Printing Slope: 15° Max. Printing Speed: 12000 Pcs/ H
Motor Power: 5.5 Kw General Power: 15 Kw
Machine Dimension: 3500 * 1900 * 2000 Mm Whole Machine Weight: 2.5 T

PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine 0
PRY-4A,6A Curved Surface Offset Printing Machine
PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine 1
Features
1.The machine adopts advanced technology at home and abroad,which is greatly updated in design,manufacturing and supporting,so that the machine is flexible,convenient, stable and reliable in operation,use and maintenance.
2.This machine adopt the horizontal cup feeding type to make the cup feeding be more steady before the printing,it has the electricity press treatment,clear and reliable printing.
3.Main motor adopt three phases frequency adjusting,synchronization belt transfer,stepless speed adjusting,steady operation,no noisy.
4.The ink supply amount can be adjusted,and the pressure adjustment of the ink roller is convenient and ideal for ink supply.
5.Each ink transfer group adopts an independent transmission mode,which can be controlled separately to save electricity and reduce mechanical wear,and increase the service life of the machine.
6.The internal and external pressure of the main ink transfer roller can be adjusted freely.
7.The installation of the printing plate is in a hanging layout,which saves printing plate fees and makes color matching easier.
8.The printing roller and printing plate roller are equipped with a cantilever type,and the separation and pressure adjustment are simple and reliable.
9.Automatic cups collection after printing,die head UV hardening,safe and reliable.
10.Automatic counting function,more convenient to use.
11.Can be customized according to customer needs.
Technical Parameters
Printing Diameter
40 ~ 95 mm
Max. Printing Width
100 mm
Printing Edition Size
300 * 105 * 1 mm
Max. Printing Slope
15°
Max. Printing Speed
12000 pcs/ h
Motor Power
5.5 kw
General Power
15 kw
Machine Dimension
3500 * 1900 * 2000 mm
Whole Machine Weight
2.5 T
Applications
This machine is for letterpress printing,which uses offset printing to print colored patterns, text,and trademarks on the surface of plastic (conical) products.It automatically prints multiple patterns at once;Widely applicable for surface printing of plastic products such as milk tea cups,beverage cups,yogurt cups,ice cream cups,plastic bowls,foam cups,etc.
PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine 2
PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine 3
PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine 4
PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine 5
PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine 6
PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine 7
PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine 8
