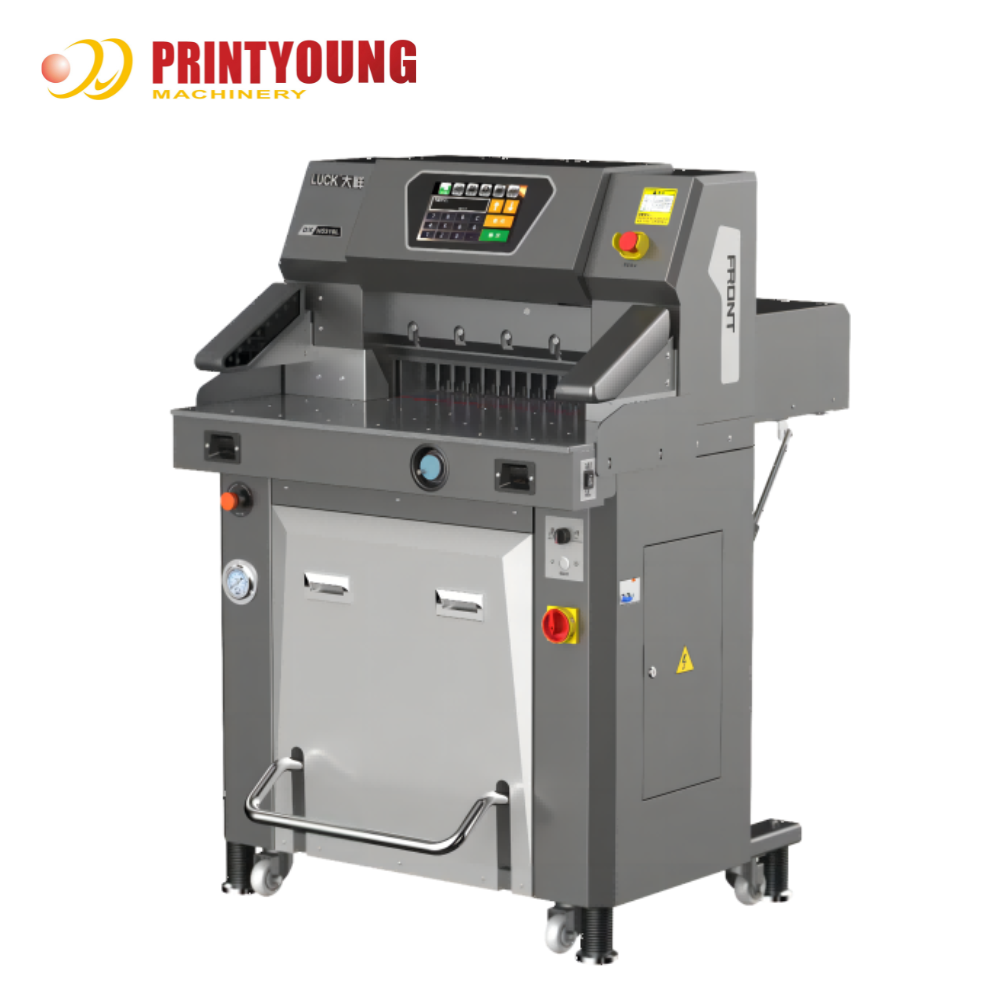

H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine

H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: H5310L , H6810L
Minimum Order Quantity: 1 Set
Price: USD 2800 ~ 3600 Set
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Contact Now
Model: H5310L , H6810L Max. Cutting Size: 530 * 530 Mm , 680 * 680 Mm
Max. Cutting Thickness: 100 Mm Min. Cutting Size: 30 Mm
Cutting Accuracy: ± 0.2 Mm Press Way: Hydraulic + Pedal
Cutting Way: Hydraulic Display: 10.2" Touch Screen
Program: 100 Groups * 96 Cuts Push Motor: Step Motor
Machine Size: 1440 * 960 * 1195 Mm , 1440 * 1100 * 1370 Mm Net Weight: 450 Kg , 500 Kg

H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 0
H5310L Hydraulic Paper Cutting Machine
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 1H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 2
Features
Key feature of this machine:Variable frequency hydraulic technology.
*Precise cutting with accurate blade descent,resolving the issue of inconsistent cutting depth and enhancing the lifespan of the blade and cutting bar.
*380V to 220V variable frequency hydraulic system,providing twice the power of traditional machines and improved stability.
*No need to replace centrifugal switches and capacitors,providing easier after-sales maintenance.
Technical Parameters
Model H5310L H6810L
Max. Cutting Size
530 * 530 mm
 680 * 680 mm
Max. Cutting Thickness
100 mm
Min. Cutting Size
30 mm
Cutting Accuracy
± 0.2 mm
Ball Table
√
Press Way
Hydraulic + Pedal
Cutting Way
Hydraulic
Display
10.2" Touch Screen
Program
100 Groups * 96 Cuts
Arithmetic
√
Push Motor
Step Motor
Frequency Conversion Motor
√
Power
220V (110V) ± 10%
50Hz (60Hz)
3200 W
Machine Size
1440 * 960 * 1195 mm
 1440 * 1100 * 1370 mm
Net Weight
About 450 kg
 About 500 kg
Configuration
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 3

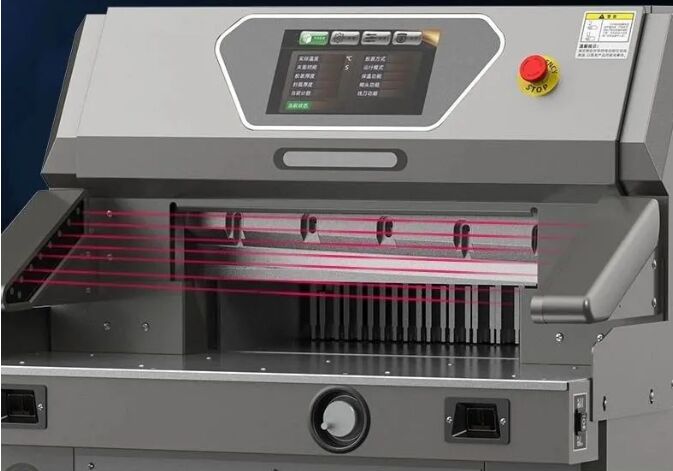

Infrared safety protection design.

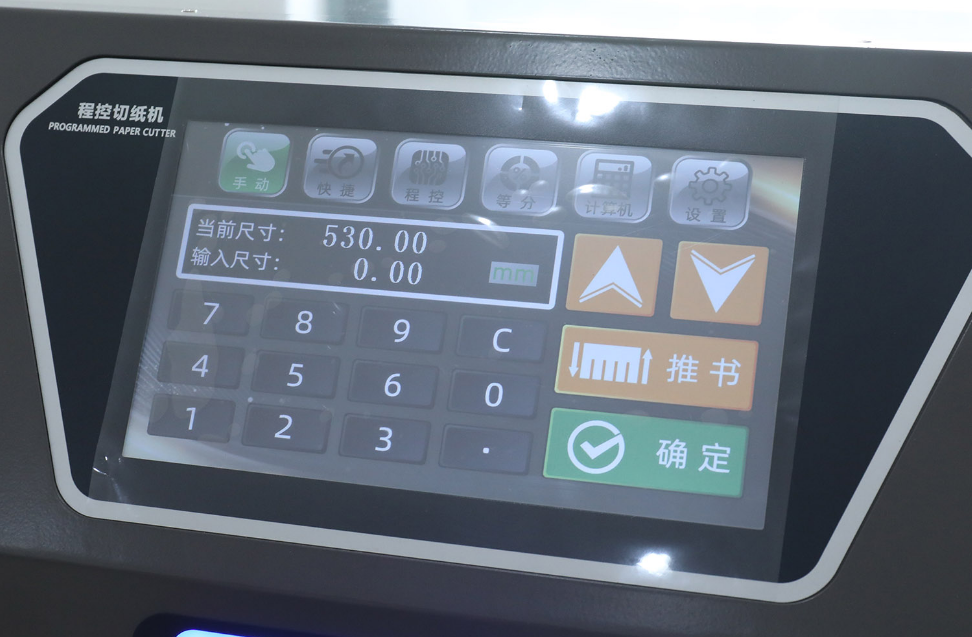

Man-machine interface design,100 groups * 96 cuts program.
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 4

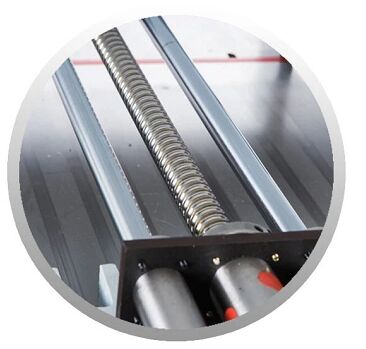

Back platform without groove design, overhanging ball screw push paper more stable.
Patent for oblique cutting paper,cutting more easliy,suitable for thick paper cutting.
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 5
Mechanical foot,cut riding nail book pre-alignment more convenient,higher precision.

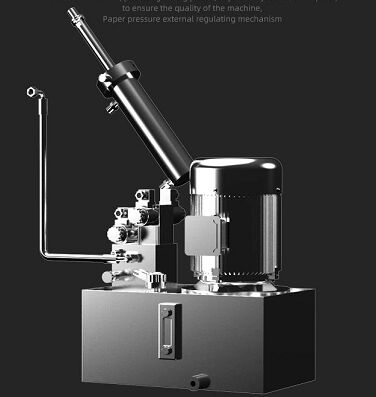

Dual hydraulic power control system with externally adjustable paper pressure mechanism.
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 6
8mm thick aviation aluminum belt ball operating table.
High-speed hydraulic system with rapid blade descent and high efficiency.
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 7
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 8
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 9
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 10
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 11
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 12
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine 13
