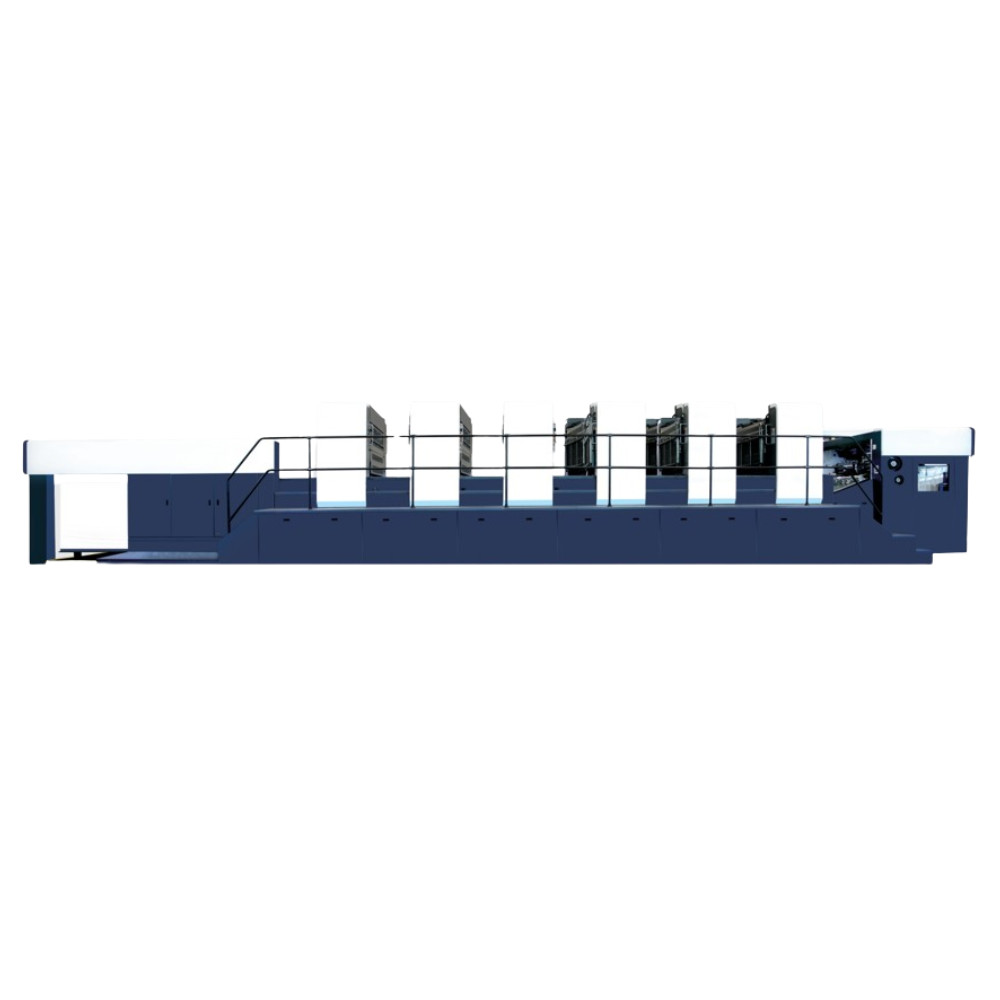

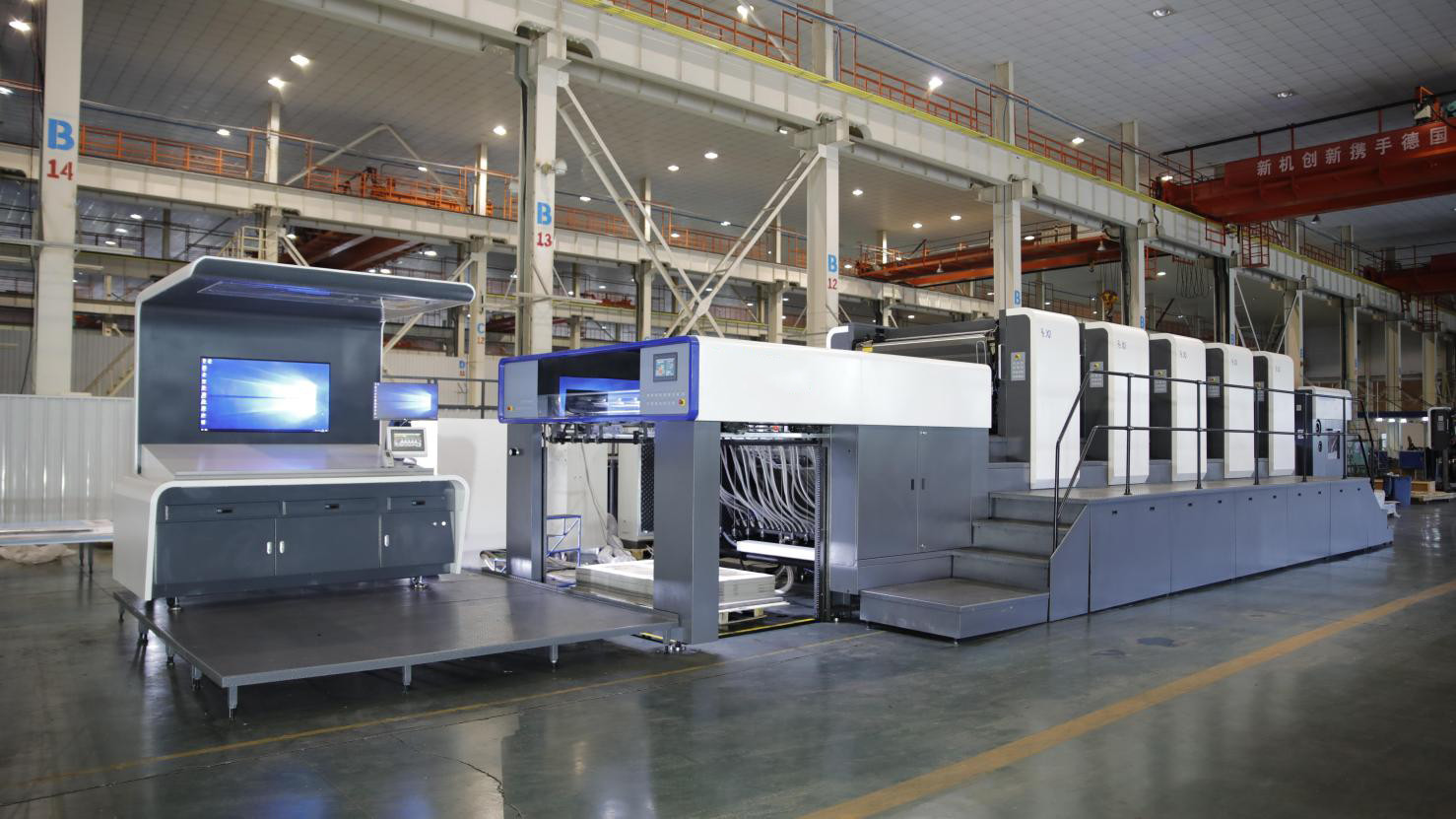

PRY-165 Series Four or Five Color Large Format Offset Printing Machine

PRY-165 Series Four or Five Color Large Format Offset Printing Machine
PRY-165 Series Four or Five Color Large Format Offset Printing Machine
PRY-165 Series Four or Five Color Large Format Offset Printing Machine PRY-165 Series Four or Five Color Large Format Offset Printing Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-165
Minimum Order Quantity: 1 Set
Price: US 1050000 ~ 1500000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 1 Set/Sets per Month
Contact Now
Min. Sheet Size: 920×600mm Sheet Thickness: 0.1~0.6mm
Main Motor Power: 55 Kw Length And Weight Of Glazing Unit: 3915mm / 16t

PRY-165 Series Four or Five Color Large Format Offset Printing Machine 0
PRY-165 Four Color Offset Printing Machine
PRY-165 Series Four or Five Color Large Format Offset Printing Machine 1
PRY-165 Series Four or Five Color Large Format Offset Printing Machine 2
PRY-165 Series Four or Five Color Large Format Offset Printing Machine 3
PRY-165 Series Four or Five Color Large Format Offset Printing Machine 4
Features
Large format printing has the advantages of large format,high efficiency,easy plate making, and exquisite printing,which is very suitable for the development needs of packaging printing and commercial printing.
■Unit type printing.Online water-based or UV coating Reverse coating.metallic printing ink, pear lusting printing ink printing and many post processes to meet the packaging demand across all levels.Which largely improves printing and packaging companies' competitiveness
■Offset printing,coating,and drying complement each other,meeting the requirements for connection processing.
■The combination of cavity scraper system and anilox roller can achieve thick and uniform coating,whether it is high gloss or matte,full surface or local,ensuring exquisite coating effect.
■The design of the drying system in the extended delivery is reasonable,utilizing infrared, hoi air,and circulating air to effectively improve drying efficiency.
■The drying device can be pulled out or pushed in from the operating side without the need for manual wiring or connecting pipes.
■No tools required to complete the replacement of lamp tubes.
■The drying device can be installed at the end of the machine or between printing units.
■High speed paper feeder with variable speed feeding,and the speed of paper reaching the ront gauge can be adjusted.
■Vacuum adsorption cardboard feeding and paper roller are used in parallel,making the paper run extremely smoothly.
■Equipped with paper preset function;the paper size can be automatically adjusted to improve order exchange efficiency.
■Optimize high-speed paper delivery mechanism,lower swing composite motion front gauge,and long front gauge positioning time.
■German original imported photoelectric element detection for skewness and empty tension ultrasonic double sheet detection.
■Pneumatic side pull gauge automatically adjusts paper size (pre set paper),improving efficiency during operation.
■Double diameter drum,optimized seven o’clock arrangement.
■Reinforced frame and roller shaft structure,with a more stable structure.
■The double diameter drum adopts high-precision,gapless special rolling bearings,ensuring printing pressure.
■The patent of the company,the reinforced straight line paper transfer roller,prevents rubbing and dirt.
■The drum is made of wear-resistant alloy cast iron and coated with stainless steel on the surface.
■High frequency quenching of drum gears,cam surfaces,ink bucket rollers,etc.,durable and durable.
■According to the optimization design of fluid mechanics,large sized ink rollers and water rollers are used to rearrange the ink flow route,which can quickly adjust the ink amount and water volume,and the ink discharge is fast,sufficient,and uniform,greatly reducing paper waste.
■The use of pneumatic clutch to control the transmission and differential control of ink and water channels allows for flexible control of the use and disconnection of ink and water,reducing wear and extending the service life of ink and water rollers.
■The pneumatic control of the normal printing operation of the dampening form roller and the conversion of the differential dirt removal function are flexible and fast,improving the efficiency.
■The application roller has shadow elimination function.
■The conversion of ink and water integration and ink separation functions greatly enriches the special requirements for different printed materials,achieving strict control of ink volume and water volume through large-scale on-site printing and fine dot printing.
PRY-165 Series Four or Five Color Large Format Offset Printing Machine 5PRY-165 Series Four or Five Color Large Format Offset Printing Machine 6
PRY-165 Series Four or Five Color Large Format Offset Printing Machine 7PRY-165 Series Four or Five Color Large Format Offset Printing Machine 8
■Ink remote control system,with one click operation on the control panel and remote diagnostic control.
■The printing program is fully automated and can be intelligently connected to the front and rear processes through the internet,with fault self-diagnosis function.
■International renowned brand PLC control system and frequency converter.
■Touch screen operation and adjustment of electronic control data,quick and flexible operation of various functions,greatly saving time.
■The large screen displays the working status,which is intuitive and clear,the computer remembers and stores ink color information,and the pre loading and pre receiving function can add a CTP interface to improve work efficiency.
■Equipped with printing pressure preset function,the paper thickness can be quickly adjusted in place.
■Can be equipped with ink roller and blanket automatic cleaning device.
■Regular and quantitative automatic lubrication of the entire machine.
■Alcohol fountain system with automatic temperature control for freezing,automatic alcohol ratio,and negative pressure water return.
■Imported pneumatic components control plate holder,semi-automatic plate loading stable and fast.
■The control console electrically operates the axial,circumferential,and diagonal proofreading mechanism of the drum,ensuring fast and accurate proofreading of rules.
■Optimizing the positioning and rounding of the closed guide rail CNC machining center, ensuring smooth operation of the paper receiving chain and low noise.
■The combination of brake roller vortex fan suction and pressure paper fan ensures high-speed and stable paper falling.
■The delivery gripper are driven by a motor,and the brake roller is directly driven by a variable frequency motor,tracking and following.
■Delivery is provided with paper presetting function,and paper format can be adjusted automatically.
■Unit type printing.Online water-based or UV coating Reverse coating,metallic printing ink, pear lusting printing ink printing and many post processes to meet the packaging demand across all levels,which largely improves printing and packaging companies' competitiveness
■Offset printing,coating,and drying complement each other,meeting the requirements for connection processing.
■The combination of cavity scraper system and anilox roller can achieve thick and uniform coating,whether it is high gloss or matte,full surface or local,ensuring exquisite coating effect.
■The design of the drying system in the extended delivery is reasonable,utilizing infrared, hot air,and circulating air to effectively improve drying efficiency.
■The drying device can be pulled out or pushed in from the operating side without the need for manual wiring or connecting pipes.
■No tools required to complete the replacement of lamp tubes.
■The drying device can be installed at the end of the machine or between printing units.
Technical Parameters
ITEM PRY-165 PRY-165A PRY-165B
Max. Sheet Size 1620 * 1040 mm 1620 * 1070 mm 1650 * 1250 mm
Min. Sheet Size 920 * 600 mm
Max. Printing Size 1620 * 1010 mm 1620 * 1060 mm 1620 * 1200 mm
Sheet Thickness 0.1 ~ 0.6 mm
Blanket Size 1630 * 1200 * 1.95 mm 1630 * 1220 * 1.95 mm 1630 * 1370 * 1.95 mm
Plate Size 1630 * 1107 * 0.3 mm 1630 * 1173 * 0.3 mm 1630 * 1316 * 0.3 mm
Max. Speed 10000 s/h 12000 s/h 10000 s/h
Paper Pile Height 1500 mm

Main Motor Power



 55 kw

Total Power

(four/five color)

 103 / 106 kw
Total Weight (four/five color) 76100 / 90800 kg 77860 / 92900 kg 80000 / 95500 kg
Overall Dimension (four/five color) 12840/14400 * 4970 * 2840 mm 12840/14400 * 4970 * 2990 mm 13964/15642 * 4970 * 3330 mm
Length and Weight of Glazing Unit 3915mm / 16t 3915mm / 19t
Configuration

Structure of the Press

Unit design,double size impression cylinder and transfer cylinder;
7 o’clock cylinder arrangement;
Strengthened frame and shaft head,reinforce stability of machine.

Feeder

High-speed feeder
Paper sheets fed to the front lays with speed adjustable
Direct lift paper separation and suction, linear paper feeding
According to the thickness of the paper, the amount of paper can be adjusted
Stainless steel pattern platen
Blowing on both sides,vacuum adsorption feed table
Inclination of the paper sheets adjustable at the feeder head,avoid paper skewed
Nozzle height adjustable by steel wire shaft and handle
The main paper table lifting adopts double speed deceleration motor
Electromechanical double sheets detector
Feeder head position can be adjusted manually
Outline pre-stacking device

Sheet Positioning

Automatic adjustment of paper size
Optimization of high speed paper transfer mechanism
Down-swing compound front lays, longer sheet positioning time
Sensors at the front lay for checking late and skewed paper sheets ,double sheet sensor
Automatic adjustment of side gauge
Front lays manually adjustable in vertical and longitudinal directions
Pneumatic pull gauge, automatically adjust the position of drawing gauge
Inter locking mechanism for the in-feeder and the front lays
Equipped with Plate and bar for pressing paper

Printing Unit

Stainless coatings on the impression cylinder,blanket cylinder and plate cylinder;
Flat sheet transfer drum smear-free sheet transfer;
All cylinders made of anti-friction cast iron;
The bearers of the plate cylinder and blanket cylinder preset device;
High spot close grippers;
Stable teeth pad group;
Imported grippers of structure;
Zero-clearance rolling bearings for Impression and plate cylinder;
Blankets with aluminum clippers for fast plate mounting;
rubber roller adopts eccentric bearing structure,impression on/off more portable;
Semi automatic plate loading system,high efficiency;
Pneumatic plate clamp;
Blanket in the form of tension in the middle;
Front plate holder with pre-positioning devices;
3-section rear plate holder for adjusting phenomenon of out of register in print end;
Axial adjustment for the plate cylinder;
Circumferential adjustment for the transfer cylinder;
PC control perforating machine;
Drum gears adopt alloy steel of high frequency quenching;
Cam with nitriding or high frequency quenching surface;
The cylinder impression on/off using conjugate cam mechanism;
Water supply,ink supply and impression on/off controlled pneumatically;
Ink supply controlled electrically;
Ink roller controlled by motor;
One key setting of ink transfer;
High frequency quenching on the ink roller;
ghosting control roller;
Automatic lubrication device,oil shortage alarm;
Manual refueling maintenance label;
Remote inking control;
Remote diagnosis control;
New ink console;
Touch screen on the control console (for water supply and electrical plate alignment);
The printing and ink information can be accessed;
Light source adopts Philips;
Alcohol system frozen automatic temperature control,automatic alcohol ratio,negative pressure backwater;
External water supply;
Printing pressure manually adjustment;
Printing process automatic control device;

Delivery Unit

Delivery gripper system suitable for whole range of paper sheets,adjustment-free;
Fully enclosed guide rails,running more smoothly;
Light weight of delivery gripper;
Paper stack lifting deceleration motor;
Automatic lowering of paper pile;
The whole paper platform structure;
Fan set for blowing down paper sheet,brake roller cochlear flow fan suction,suction can adjust alone;
Five sets for blowing down paper sheets;
Open and close gripper structure of paper retractor row on both sides;
Hollow teeth axis and the flat spring structure;
The time of delivery gripper open controlled electrically;
Brake roller directly driven by frequency conversion motor;
Timing quantitative automatic centralized lubrication;
Paper tail blowing system follow brake roller turning;
Automatic adjustment of paper size;
Pipeline dust collection;
Equipped with electronic powder spraying system.

Electric Control Unit

PLC control system and frequency converter(international name brand);
Metal dome;
Frequency control of main motor,water and ink roller motor;
Water and ink supply,impression on/off,interlocking system,powder supply,pump for delivery can be switched between manual and automatic control;
Touch screen on the control console (for water supply and electrical plate alignment);
Display of faults (including braking protection,sheet positioning fault,safety protection, lubrication faults,frequency converter protection and motor protection);
Display of printing parameters;
Automatic pressure regulating system;
Automatic adjustment system of paper size;
Push button lamp;
Automatic tracking speed of delivery grippers.Automatic adjustment of brake roll;
Print volume settings;
Communication cable transmission control;
Equipped with brake unit;
Water supply with high,medium and low three settings,water control is more flexible;
Water system with reasonable curve setting automatically changes with tracked speed;
Set up adjusting condition button indicator light;
Inching speed ≤5m/min;
Alarming before starting operation;
Safety devices equipped on safety guards on the printing unit,pedals between printing units and other positions in the press;
Independent electric cabinet with easy operation.

Others

New appearance;
Offer one color set of ghost shadow roller and one set of tools;
This technical configuration is only for reference when ordering.The actual configuration of the machine is subject to the material object and the machine manual.
Applications
PRY-165 Series Four or Five Color Large Format Offset Printing Machine 9
PRY-165 Series Four or Five Color Large Format Offset Printing Machine 10
PRY-165 Series Four or Five Color Large Format Offset Printing Machine 11
PRY-165 Series Four or Five Color Large Format Offset Printing Machine 12
PRY-165 Series Four or Five Color Large Format Offset Printing Machine 13
PRY-165 Series Four or Five Color Large Format Offset Printing Machine 14
PRY-165 Series Four or Five Color Large Format Offset Printing Machine 15
PRY-165 Series Four or Five Color Large Format Offset Printing Machine 16PRY-165 Series Four or Five Color Large Format Offset Printing Machine 17PRY-165 Series Four or Five Color Large Format Offset Printing Machine 18PRY-165 Series Four or Five Color Large Format Offset Printing Machine 19
PRY-165 Series Four or Five Color Large Format Offset Printing Machine 20PRY-165 Series Four or Five Color Large Format Offset Printing Machine 21PRY-165 Series Four or Five Color Large Format Offset Printing Machine 22
PRY-165 Series Four or Five Color Large Format Offset Printing Machine 23
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.

Tag:

auto print offset machine

sticker printing machine

web offset printing press

Contact Details
More Offset Printing Machine
