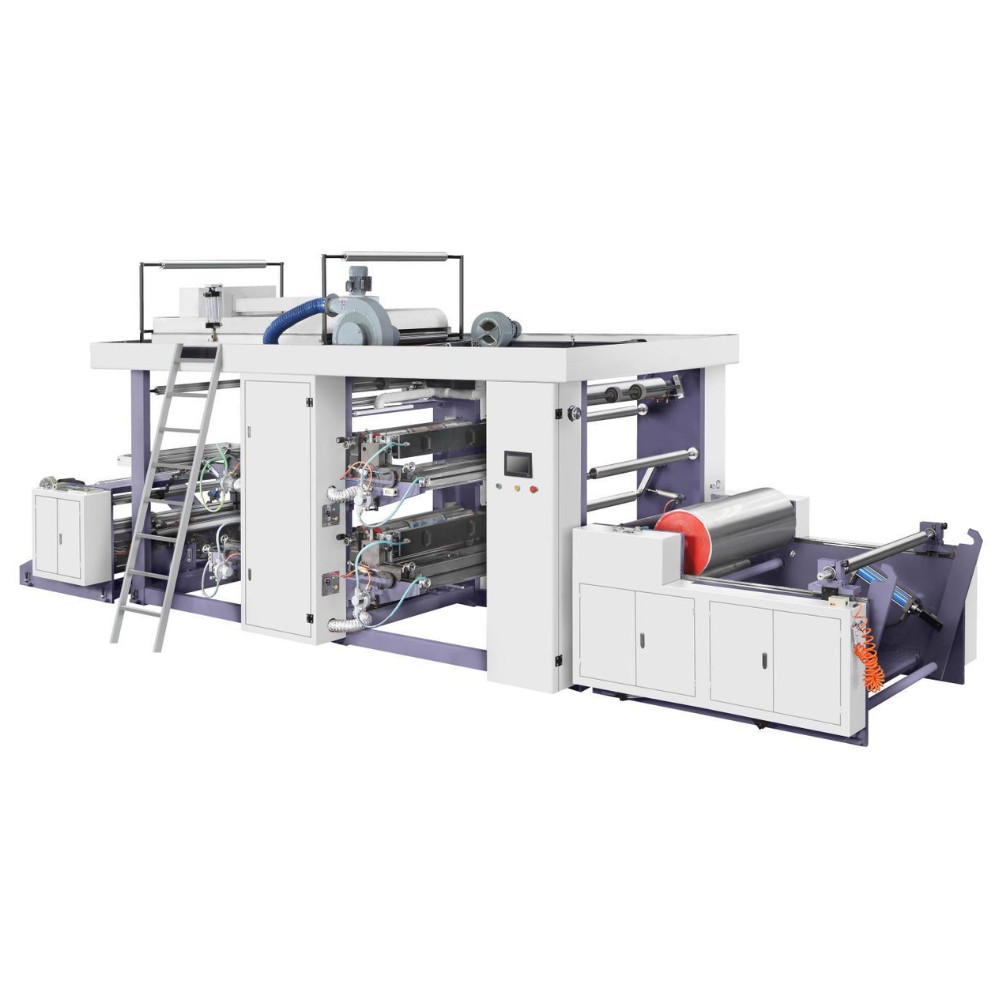

ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine

ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine
ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine
ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: ZYT-1000-4
Minimum Order Quantity: 1 Set
Price: US 36,000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Max. Printing Material Width: 1000 Mm Max. Printing Width: 960 Mm
Max. Unwinding Diameter: 1300 Mm Max. Rewinding Diameter: 1300 Mm
Printing Length Range: 230 ~ 1000 Mm Printing Speed: 5 ~ 100 M∕min
Register Precision: ≤ ± 0.15 Mm Thickness Of Plate: 2.28 Mm + 0.38 Mm
Dimension: 8200 * 2100 * 2500 Mm Weight: 5100 Kg

ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine 0

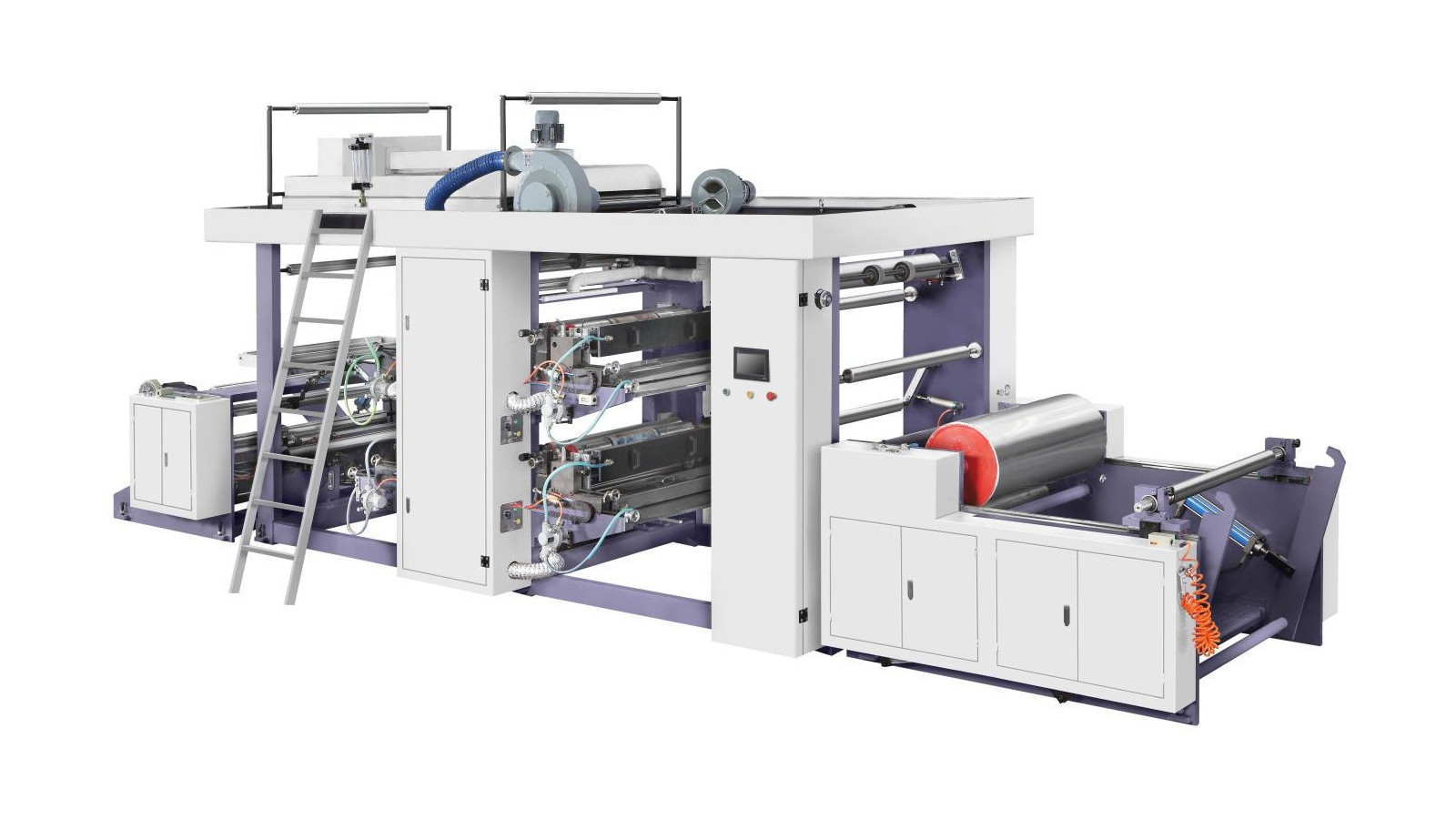

ZYT-1000-4 Four Colors Flexo Printing Machine
ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine 1
Features
1.The machine adopt with synchronous belt drive and hard gear face gear box.The gear box adopt with synchronous belt drive each printing group high precision planetary gear oven (360º adjust the plate) gear driving the press printing roller.
2.After printing,long running material space,it can make the ink drying easily,better results.
Technical Parameters
ZYT-1000-4 Four Colors Flexo Printing Machine
Type
ZYT-1000-4
Max Printing Material Width
1000 mm
Max Printing Width
960 mm
Max Unwinding Diameter
1300 mm
Max Rewinding Diameter
1300 mm
Printing Length Range
230 ~ 1000 mm
Printing Speed
5 ~ 100 m/min
Register Precision
≤ ± 0.15 mm
Thickness of Plate(Including the thickness of double sides glue)
2.28 mm + 0.38 mm
Dimension
8200 * 2100 * 2500 mm
Weight
5.1 T
Power
21 kw
Configuration
ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine 2ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine 3

Control Part

1.Main motor frequency control
2.PLC touch screen control the whole machine
3.Reduce motor separate

Unwinding Part

1.Single work station
2.Hydraulic clamp,hydraulic lift the material, hydraulic control the unwinding material width,it can adjust left and right movement.
3.Magnetic powder brake auto tension control.
4.Auto web guide
ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine 4ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine 5

Printing Part

1.Pneumatic lifting and lowing printing plate cylinders auto lifting plate cylinder when the machine is stopped.After that can run ink automatically.When the machine is opening,it will make alarm to start the auto lowering plate printing cylinder.
2.Inking with ceramic anilox chambered doctor blade,ink pump circulation.
3.High precision planetary gear oven 360° circulation longitudinal register.
4.±2mm transverse register.
5.Adjust inking press and printing pressure press by manual.

Rewinding Part

1.Back to back rewinding
2.Pneumatic tension control
3.2kw motor,vector frequency conversion control
4.3 inch air shaft
5.Hydraulic lowering the material

Drying Part

Adopt with external heating pipe,temperature display,electric current control,centrifugal blower bring the wind.
ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine 6
ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine 7
ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine 8
ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine 9
ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine 10
ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine 11
ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine 12
ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine 13
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
