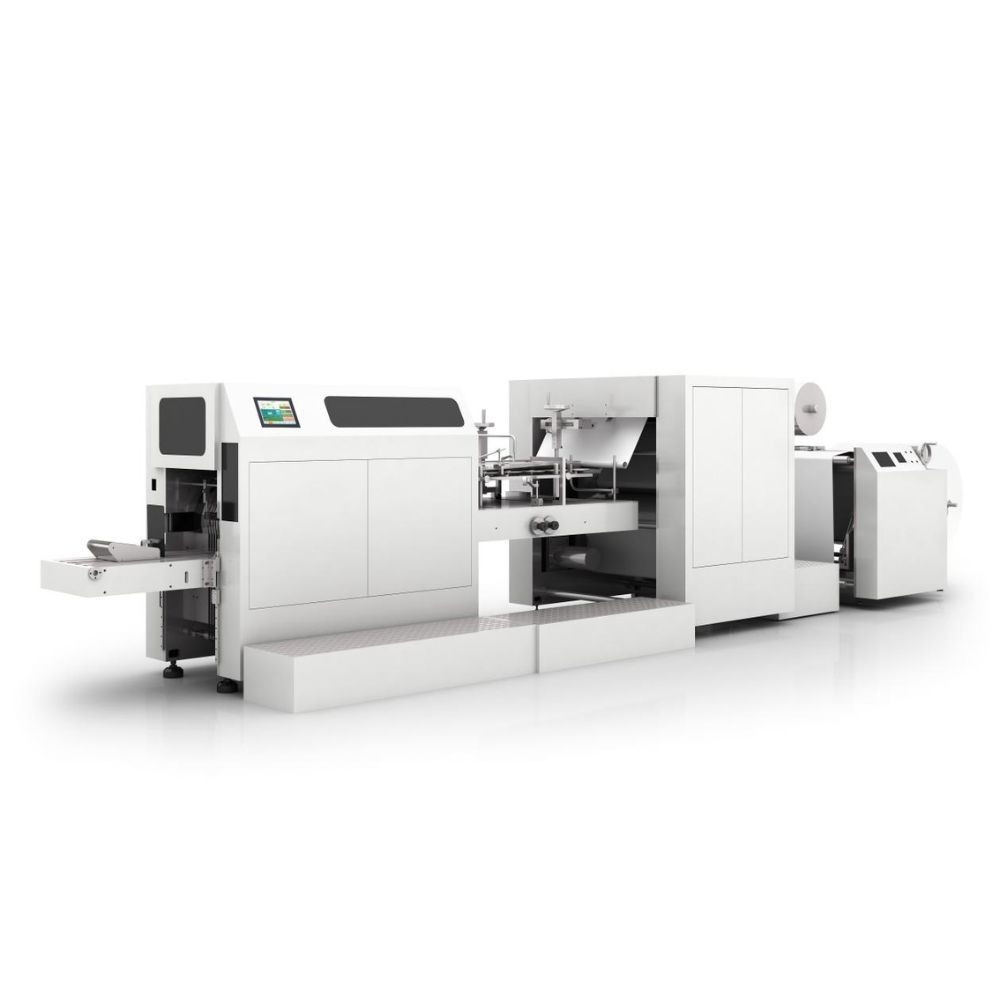

PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit

PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-JD350
Minimum Order Quantity: 1 Set
Price: US 35000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Machine Type: Bag Forming Machine Bag Type: Food Bag
Material: Paper Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Italy, Algeria, South Africa, Morocco Place Of Origin: Zhejiang, China
Weight: 4500 KG Warranty: 1 Year
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Max Speed: 400 Pcs/min Condition: New
Computerized: Yes Voltage: 380 V
Dimension: 9100 * 1900 * 1950 Mm Cutting Length: 200 - 650 Mm
Bag Length: 180 - 630 Mm Bag Width: 100 - 340 Mm
Insert Size: 20 - 90 Mm Ladder Height: 15 - 20 Mm
Paper Width: 220 - 1000 Mm Maximum Diameter Of Paper Material: 1000 Mm
Inner Diameter Of Paper: 76 Mm Paper Thickness: 45 - 80 Gsm
Working Gas: > 0.12 M³/min , 0.5 - 0.8 Mpa
Highlight:

Snack Food Paper Bag Making Machine

,

Dry Fruit Paper Bag Making Machine

,

45 gsm Paper Bag Forming Machine

PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 0
PRY-JD350 Paper Bag Making Machine
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 1
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 2
Features

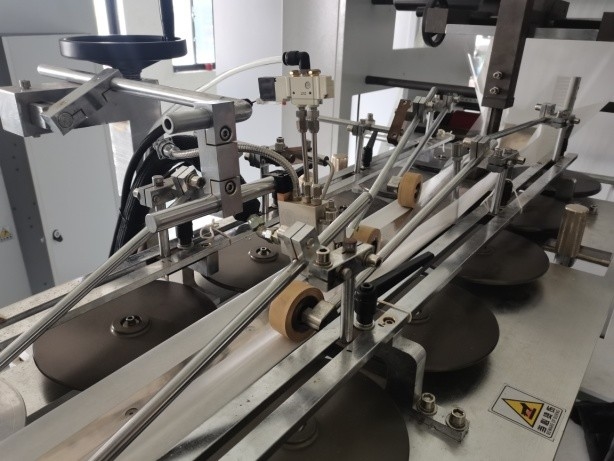

Full automatic high speed paper bag making machine use primary color rolling paper or printed rolling paper such as kraft paper,striped brown paper,slick paper,food coated paper, medico paper and so on,bag making process consist of puncture,side gluing,sidefolding,bag forming,cut off,bottom folding,bottom gluing,finish product delivered in onetime.
1.The man-machine interface of Willum touch screen is adopted,the operation function is clear at a glance,easy to control
2.Adopt the Japanese original Mitsubishi motion controller,through the integration with the optical fiber, operation stability
3.Japanese Mitsubishi servo motor with German Schick color standard eye correction,accurate tracking printing bag size

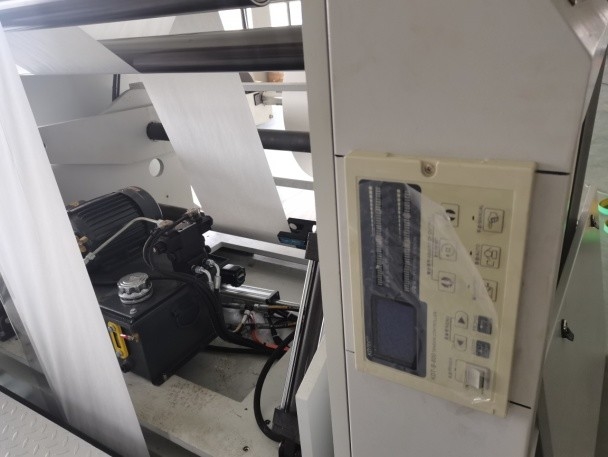

4.The loading and unloading of raw material adopts hydraulic dynamic lifting structure,and the unwinding adopts automatic constant tension control
5.Brushless servo motor is used to correct the deviation of raw material and reduce the adjustment time of paper roll alignment
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 3PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 4
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 5
Technical Parameters
Model
PRY-JD350
Cutting Length
200 - 650 mm
Bag Length
180 - 630 mm
Bag Width
100 - 340 mm
Insert Size
20 - 90 mm
Ladder Height
15 - 20 mm
Paper Bag Speed
30 - 400 pcs/min
Paper Width
220 - 1000 mm
Maximum Diameter of Paper Material
1000 mm
Inner Diameter of Paper
76 mm
Paper Thickness
45-80 g/m2
Working Gas
≧ 0.12 m³/min , 0.5 - 0.8 mpa
Power
380 V 3 phase 4 line 24 kw
Total Weight
4500 kg
Outline
9100 * 1900 * 1950 mm
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 6PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 7
Configuration
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 8PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 9

Control System

CPU program controller * 1
Human-computer touch screen interface * 1
Photoelectric eye for printed-bag tracking * 2
Low voltage electrical apparatus * 4
Photoelectric sensor * 5
Pneumatic component * 6
Auto lubricating * 1
Servo motor * 2
Servo Power * 2
Host server * 1
Traction servo * 2
Breaking servo * 1
Prestabbing servo * 1
Bag servo * 1
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 10PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 11

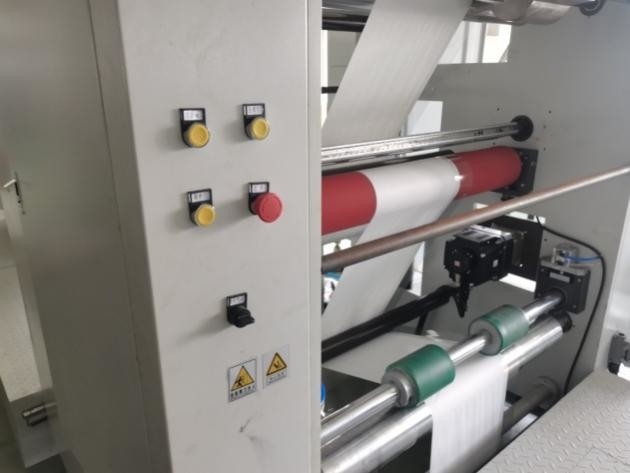

Deviation Correction and Tension Control System

EPC controller * 1
Servo motor for EPC * 1
Ultrasonic sensor * 1
Magnetic powder brake * 1
Automatic tension system of magnetic powder * 1
Automatic hydraulic feeding motor * 1
Feeding hydraulic cylinder * 2
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 12PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 13

Transmission

Synchronous belt * 2
Synchronous wheel * 4
Bearing * 213
Guide roller * 9
Gear * 23
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 14PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 15

Glue Position

Bottom glue(bottom-sealing white latex) * 2
Motor for bottom glue evening * 1
Pneumatic auto glue filling valve * 1
Side glue * 1
Glue position detection * 1
Window opening sol spray gun(without window opening) * 2
High-pressure glue barrel for white latex * 1
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 16PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 17
Applications
Our machine have advantage of easy operation,high effeciency,more steady,it is an ideal machine for make differnt kind of paper bag,snack food paper bag,bread paper bag,dry fruit paper bag and environment friendly paper bag.
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 18PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 19

PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 20
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 21
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 22
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 23
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 24
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 25
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 26
PRY-JD350 V Shape Sharp Bottom Paper Bag Making Forming Machine For Snack Food Dry Fruit 27
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
