PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping

PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-A5575
Minimum Order Quantity: 1 Set
Price: US 82,000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Type: Die-cutting Machine Production Capacity: 100 Sheets/min
Max. Workable Width: 550 Mm Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Italy, Algeria, South Africa, Morocco Weight: 2800 Kg
Warranty: 1 Year Key Selling Points: Automatic
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Condition: New Computerized: Yes
Voltage: 380 V Dimension: 5660 * 1070 * 1670 Mm
Max Sheet Size: 550 * 750 Mm Min Sheet Size: 240 * 280 Mm
Die Cutting Thickness: 0.15 Mm - 0.5 Mm Max Creasing Thickness: 0.4 Mm
Max Final Product Size: 526 Mm * 730 Mm Min Final Product Size: 50 Mm * 80 Mm
Min Discharge Width: 5 Mm Mould Height: 1 Mm
Max Mould Size: 550 Mm * 760 Mm Min Mould Size: 160 Mm * 100 Mm
High Light:

Automatic Sheet Fed Paper Die Cutter

,

Paper Die Cutting Machine 550mm

,

100sheets/min Paper Die Cutting Machine

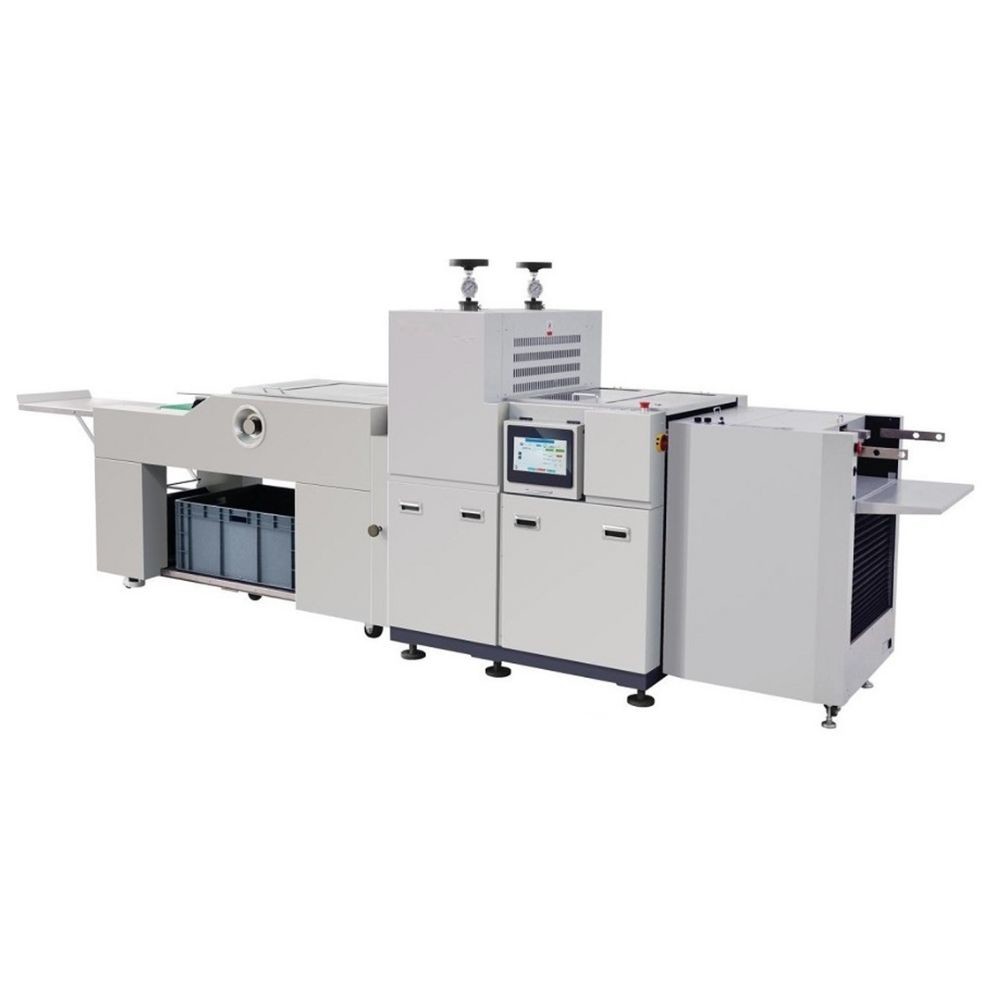

PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 0
PRY-A5575 Automatic Die Cutting Machine with Stripping
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 1
Features
Roller die cutting machine is to cut the paper with the mould.It can be applied to normal paper,coated paper and cardboard,(the following paper cannot be processed:composite paper(covered with polypropylene)or plastic film).Speed ​​can reach 6000 cycles per hour.It can remove the waste automatically,easy to operate and save time with the efficient work.
1.Operation Console
Both setup and control can be done though the intuitive touch screen.After setting upper and lower die,the system can be set up by simply inputting sheet size and product size.The graphical illustrations on the screen are simple and easy to understand.
2.Feed Section
Vacuum belt feeding enables superior feeding with easy setup and operation.An ultrasonic sensor is used for double feed detection on a wide range of substrates.

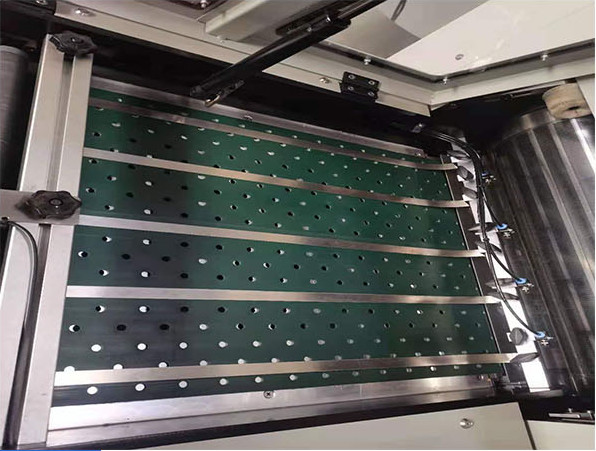

3.Transport Section
Sheets are registered by vacuum belt and position is firmly secured with gripper rollers for high quality finish. Servo motor driven gripper rollers ensure the die cut position without effecting processing speed.

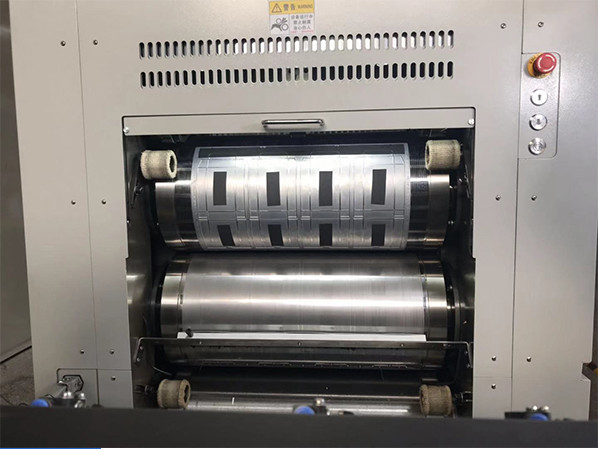

4.Die Cutting
Rigid magnetic upper roller and solid lower anvil roller ensure high quality die cutting. Uniquely designed die cutting section enables easy and quick die setting.Both 0.6mm and 0.8mm/0.0236’’ and 0.0315’’ thickness of flexible die plates can be used.
5.Separator
The separator removes the waste from the finished product and delivers it to the waste bin. Air cylinder driven separator pins and sir jets can be used depending on size of the waste.
6.Delivery Section
Finished products are delivered on the motorized conveyor.Intermittent conveyor movement maximizes the continuous operation in a small space.Gap can be adjusted depending on the size of the product for easy handling.
7.Multi-functional system die cutting,kiss cutting creasing,repeat cutting.
8.Rotary die cutting machine(Max.400x550 mm)-rotary die-cutter designed to meet the growing demand.
9.Flexible substrate-die cut,crease,perforation,silt,hole punch and round corner in various substrates up to 0.5mm(only for die cutting)thickness for digital and offset printed sheets.
10.One pass processing-feeding,die cutting and separating are achieved in one pass at a speed of 6,000 cycles per hour.
11.Save the cost of making die-uniquely designed servo motor controlled ”Repeat Register” feature allows multiple-up applications from single-up die to minimize die cost.Simple and easy operation-reduces costly labor steps and increases productivity.
Use and Scope of Use
*The integrated PRY-A5575 rotary die cutting machine is a suitable equipment for different production.It is suitable for small batch and repeated production.It use flexible mould and easy to replace.
*Through the flat-type paper feeder and positioning table,the paper enters the die-cutting section,and the positioning accuracy of the paper-feeding direction can reach ±0.1mm.
*Automatic paper lifting,automatic paper feeding,double sheet detection,chasing mark alignment die cutting,automatic deviation correction,automatic waste discharge and other functions.
*The separator section can be directed to blow away waste,and adjustment does not require tools.
*The separator section and collection section can be pushed away as a whole,providing maximum convenience for changing the mould.
*The wheel of separator section is electrical control,timing up and down,the final product will be output to the receiving table regularly.
*Automatic paper lifting,automatic paper feeding,double sheet detection,chasing mark alignment die cutting, automatic deviation correction,automatic waste discharge and other functions.
*Mainly suitable for stickers,tags,wine labels,playing cards,small boxes and so on.The processing materials are suitable for plain paper,coated paper,cardboard,PE film,and so on.
*This section describes the sheet flow from the feed unit through the die cutter and the separator.The separator separates the cut product from the sheet.
Technical Parameters
PRY-A5575 Automatic Die Cutting Machine with Stripping
Max Sheet Size
550 X 750 mm
Min Sheet Size
240 X 280 mm
Die Cutting Thickness
0.15 mm – 0.5 mm
Max Creasing Thickness
0.4 mm
Max Final Product Size
526 mm X 730 mm
Min Final Product Size
50 mm X 80 mm
Min Discharge Width
5 mm
Mould Height
1 mm
Max Mould Size
550 mm X 760 mm
Min Mould Size
160 mm X 100 mm
X,Y Direction Die Cutting Accuracy
± 0.1mm
Feeder Stack Height
500mm
Max Production Speed
6000 cycles per hour
Configuration

1.Smart Touch Screen

Human-machine interface,intelligent touch screen simple and beautiful appearance, complete internal functions,simple and clear operation.
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 2PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 3
2.Multi-Function Die Cutting
The machine have multifunction:die cutting,creasing,kissing and repeat cutting,sutitable for the size of matrial within B2 size(including B2 size).

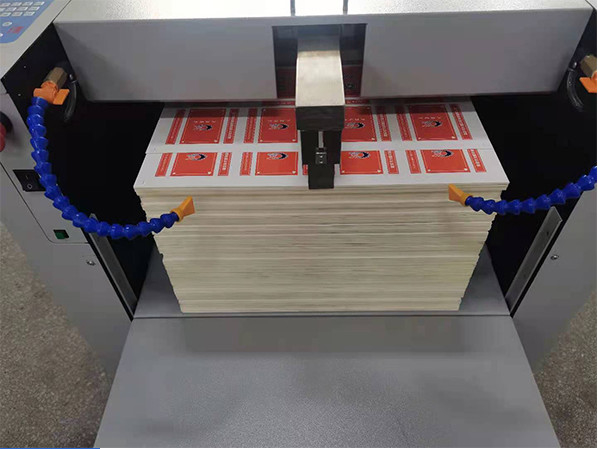

3.Feed Section
Automatic paper lifting,automatic paper feeding,double sheet detection,the machine through the flat-type paper feeder and postioning table,the paper enters the die-cutting section,and the postioning accuracy of the paper feeding direction can reach 0.1mm.
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 4PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 5
4.Receiving Part
Lower suction to stabilize the paper output,finished products will be regular output to the receiving table.

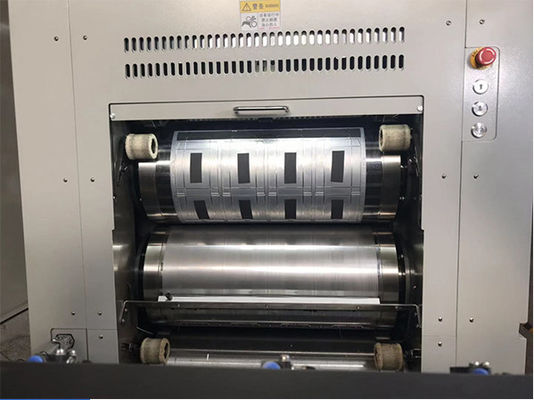

5.Flexible Knife Plate
Flexible knife plate,diversified styles,easy to change.
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 6
6.High Speed and Precision
It can reach speeds of up to 6,000 pcs per hour.
Applicable
All Kinds of Stickers
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 7PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 8PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 9
Hanging Tags
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 10PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 11
Card
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 12PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 13PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 14
Paper Box
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 15PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 16PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 17
Wine Label
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 18PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 19PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 20
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 21
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 22
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 23
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 24
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 25
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 26
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 27
PRY-A5575 Automatic Sheet Fed Thin Paper Die Cutting Machine with Stripping 28
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
