TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder

TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder
TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder
TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: TYMK
Minimum Order Quantity: 1 Set
Price: US 23500 ~ 27500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Total Electro Thermal Power: 9 Kw Adjustable Range Of Temperature: 1 ~ 999 °C
Continuous Lettering Speed: 20 Storkes/min Times Of Skip: 1 ~ 99
Resolution Of Foil Feeding: 1 Mm Motor Data: 4kw / 6serise

TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder 0
TYMK-930 Automatic Hot Stamping and Die Cutting Machine

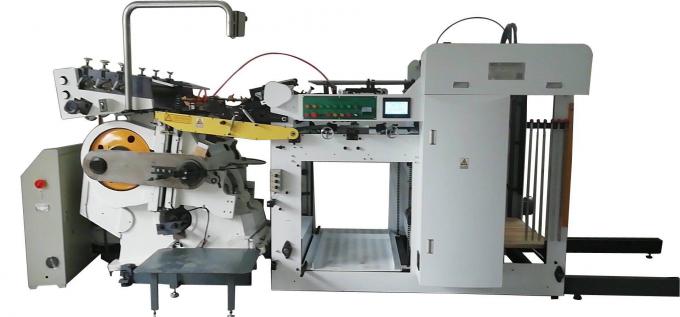

TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder 1
Features
This machine is a kind of special equipment used for thermo-printing and creasing various products,such as cardboard,leather and plastic etc.It is suitable for thermo-printing various paper products with electrochemical aluminum and also used as a creasing and cutting machine for mould cutting and creasing cardboard cases and boxes. Concave-convex thermo-printing of various high-grade and fine printed products can also be conducted on this machine for obtaining stereoscopic exquisite and beautiful packing and decorating products.The machine is controlled by a chip microprocessor,with the foil-feeding rubber roller of electrochemical aluminum driven by the separately set length and leapfrog parameters to make the most effective using of electrochemical aluminum.The purpose of this model is to ensure that the system runs stably and reliably so that the machine can be maintained by anybody.
Technical Parameters
TYMK Hot Stamping and Die Cutting Machine
Model & Size
TYMK-930
 TYMK-1040 TYMK-1100
Effective Area of Flat Platen
930 * 670 mm
 1040 * 720 mm 1100 * 800 mm
Area of Large Lettering Platen
920 * 650 mm
 980 * 700 mm 1000 * 750 mm
Total Electro Thermal Power
9 kw
Adjustable Range of Temperature
1 ~ 999 °C
Continuous Lettering Speed
20 storkes/min
Common Foil Feeding
1 ~ 650 mm
 1 ~ 780 mm 1 ~ 800 mm
Times of Skip
1 ~ 99
Resolution of Foil Feeding
1 mm
Motor Data
4kw / 6serise
Machines Weight
3500 kgs
 4500 kgs 4800 kgs
Packaging Size
1860 * 1790 * 1890 mm
 2000 * 2050 * 2000 mm 2020 * 12070 * 2010 mm
ZS Automatic Feeder
Model
ZS-930
 ZS-1040 ZS-1100
Size of Face Plate
930 * 670 mm
 1040 * 720 mm 1160 * 850 mm
Maximum Cutting Size
920 * 660 mm
 1000 * 680 mm 1090 * 790 mm
Minimum Cutting Paper
350 * 460 mm
 360 * 460 mm 360 * 520 mm
Thickness of Cutting Paper
card paper : 0.2 ~ 0.3 mm , corrugated paper : 7.8 mm
Maximum Speed
2100 sheets/hr
Total Weight of Machine
6800 kg
 7000 kg 7500 kg
Dimensions
5900 * 1900 * 2000 mm
 5900 * 2000 * 2000 mm 5900 * 2100 * 2000 mm
Configuration
TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder 2TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder 3
Multiple electric eyes check to reduce the paper waste.Delivery table is equipped with automatic support device.
Precisely and safely,easy to operate.
Delivery table is equipped with automatic support device.Continuous operation without stop,work efficiently.
TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder 4TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder 5
The front block and side block can adjust freely in accordance with the paper size.Easy to adjust and precisely.
Collection and delivery table both adopt the vacuum inspiration to avoid the problem of the gripper biting no paper.The device applies to common paperboard,E/B/A corrugated paper and plastic board.
TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder 6TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder 7
Collection table is equipped with automatic support device.Continuous operation without stop,work efficiently.
The feeder part is equipped with track device Separating freely when you make plate.
TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder 8
TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder 9
TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder 10
TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder 11
TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder 12
TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder 13
TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder 14
