PRY-2000 Semi- Automatic Chain Feeder Rotary Paperboard Die-Cutting Machine

PRY-2000 Semi- Automatic Chain Feeder Rotary Paperboard Die-Cutting Machine
PRY-2000 Semi- Automatic Chain Feeder Rotary Paperboard Die-Cutting Machine
PRY-2000 Semi- Automatic Chain Feeder Rotary Paperboard Die-Cutting Machine PRY-2000 Semi- Automatic Chain Feeder Rotary Paperboard Die-Cutting Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-2000
Minimum Order Quantity: 1 Set
Price: US 11800 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Max. Paper Coverage Area: 900 * 2000 Mm Effective Die Cutting Area: 900 * 1800 Mm
Max. Mechanical Speed: 80 Pieces/min Height Of Die Cutter: 25.4 Mm
Power Of Main Motor: 4.5 Kw Dimension: 2500 * 3000 * 1700 Mm

PRY-2000 Semi- Automatic Chain Feeder Rotary Paperboard Die-Cutting Machine 0

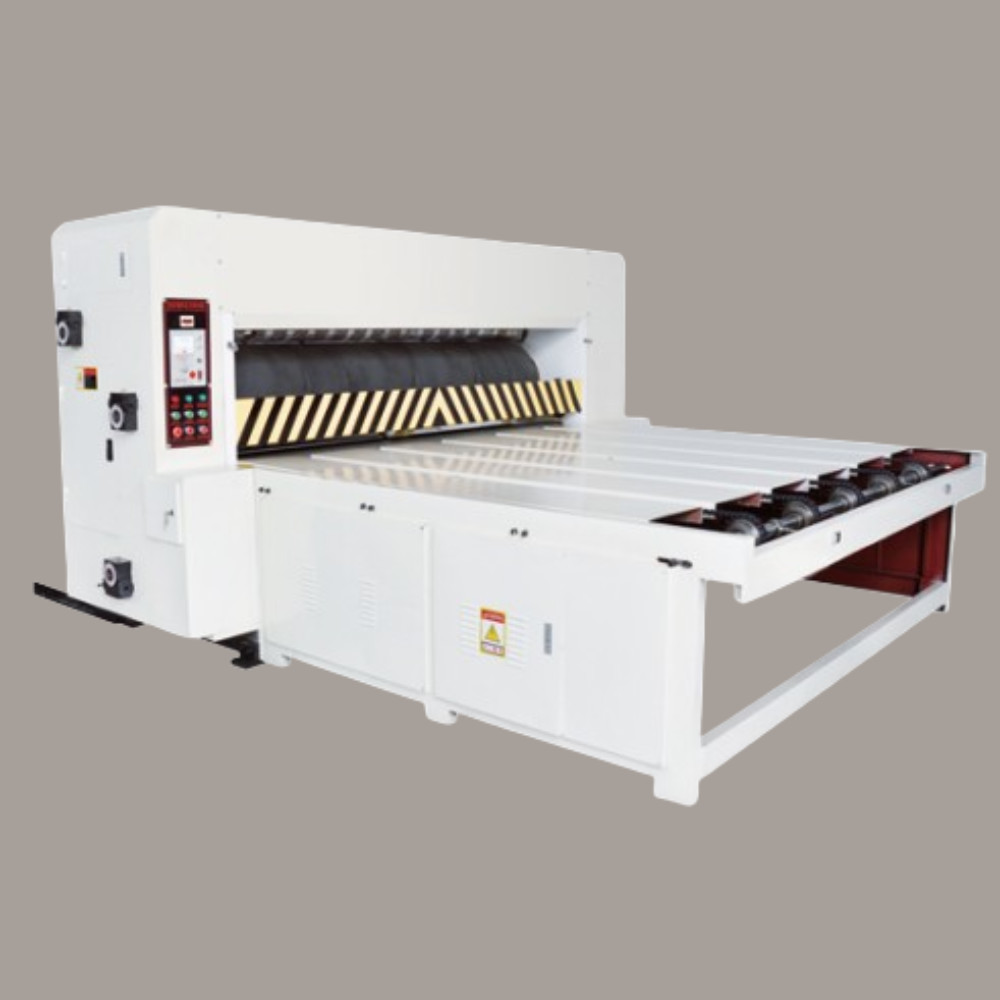

PRY-2000 Chain Feeder Rotary Die-Cutting Machine
PRY-2000 Semi- Automatic Chain Feeder Rotary Paperboard Die-Cutting Machine 1
Features
1. The semi-auto series of chain feeding rotary die cutting machine,is widely apply to the die cutting of corrugated cardboard packaging and color box packaging includes some various special-shaped packaging.
2. High efficiency,high die-cutting accuracy,energy saving and safety are the advantages of this machine.
3. This is the third generation of rotary die-cutting machine,equipped with imported of polyurethane felt,guarantee a long life time up to 10 million times.
4. Automatic compensation of linear velocity can guarantee that die-cutting size for each batch of cartons is in full accord even if the polyurethane felt is worn-out.
5. The feeding system equipped with linkage self-lock device,which are convenient for the workers' operation.
6. The slotting,corner cutting,creasing and punching will be accomplished in a lump.
7. The main structure and frame is made of high quality cast iron.

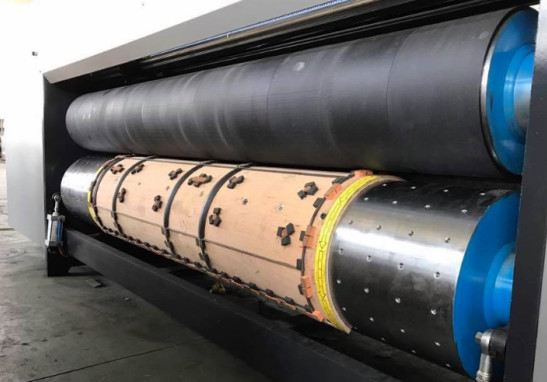

8. The die cutting roller is made of the high quality steel with the thickness of 30mm,and chrome plated,as well balance adjustment.
9. Die cutting roller cylinder type auto separation unit can increase wear of rubber sleeve.
10. Mechanical soft roll is able to lateral movement for 40mm,to make the rubber wear evenly.
11. The soft roller auto self grinding unit improves the usage of rubber sleeve,3 or 4 times grinding and re-use is available.
12. The transmission gear is made of high quality steel with the treatment of accurate grinding,has the advantage of low noise and long lifetime.
13. The die-cutting with the slotting attachment.
Technical Parameters
PRY-2000 Rotary Die-Cutting Machine
Max. Paper Coverage Area
900 * 2000 mm
Effective Die Cutting Area
900 * 1800 mm
Max. Mechanical Speed
80 pieces/min
Height of Die Cutter
25.4 mm
Power of Main Motor
4.5 kw
Dimension
2500 * 3000 * 1700 mm
Weight
5.5 T
PRY-2000 Semi- Automatic Chain Feeder Rotary Paperboard Die-Cutting Machine 2
PRY-2000 Semi- Automatic Chain Feeder Rotary Paperboard Die-Cutting Machine 3
PRY-2000 Semi- Automatic Chain Feeder Rotary Paperboard Die-Cutting Machine 4
PRY-2000 Semi- Automatic Chain Feeder Rotary Paperboard Die-Cutting Machine 5
PRY-2000 Semi- Automatic Chain Feeder Rotary Paperboard Die-Cutting Machine 6
PRY-2000 Semi- Automatic Chain Feeder Rotary Paperboard Die-Cutting Machine 7
PRY-2000 Semi- Automatic Chain Feeder Rotary Paperboard Die-Cutting Machine 8
PRY-2000 Semi- Automatic Chain Feeder Rotary Paperboard Die-Cutting Machine 9
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
