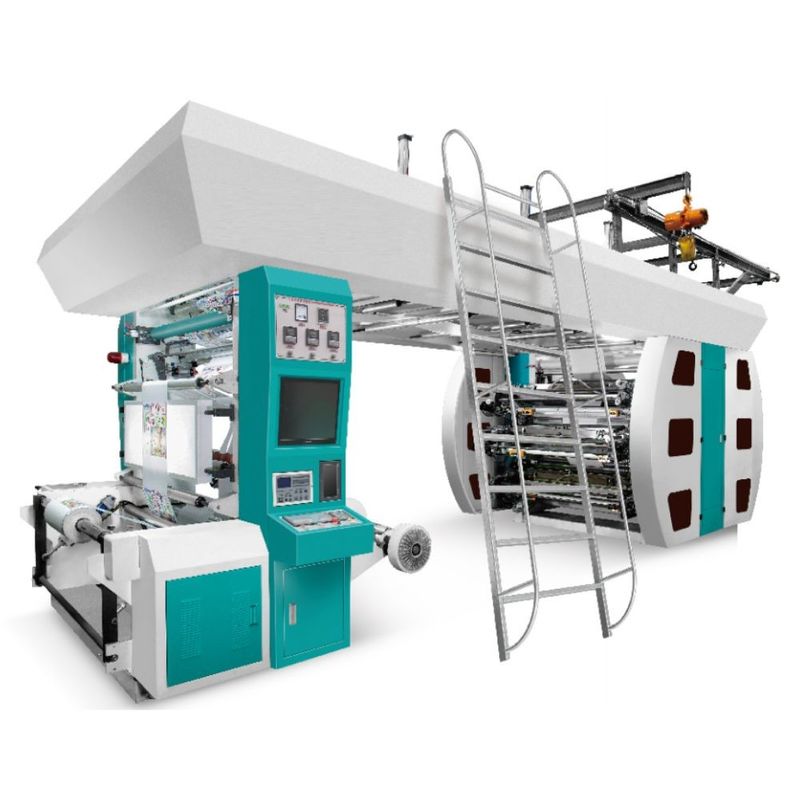

YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors

YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: YTC-41300
Minimum Order Quantity: 1 Set
Price: US 62000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 1 Set/Sets per Month
Contact Now
Applicable Industries: Manufacturing Plant Place Of Origin: Zhejiang, China
Color & Page: Multicolor Weight: 9600 KG
Warranty: 1 Year Structure: CI
Type: Flexographic Printer Condition: New
Plate Type: Screen Printer Brand Name: PRINTYOUNG
Automatic Grade: Automatic Voltage: 380V
Dimensions: 7.3*2.8*3.3m Print Dimension: 1300mm
Print Speed: 10-180m/min Machinery Test Report: Provided
Video Outgoing-inspection: Provided Printing Color: 4 Colors
Max. Width Of Printing: 1260mm Max. Speed Of Material Printing: 120-150m/min
Thickness Of Plate: 1.7mm,1.14mm, 2.84mm Or As Your Request Power: Voltage: 380V, 3PH, 50HZ/60HZ
High Light:

Automatic Multicolor Flexo Label Printing Machine

,

CI Type Flexo Label Printing Machine

,

Four Colors Flexo Printing Machine

YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 0
YTC-41300 Flexo Printing Machine
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 1
Technical Parameters
Main Parameter
Model
YTC-41300mm
Max Width Of Material
1300mm
Printing color
4 colors
Max. Width of Printing
1260mm
Machinery mechanical speed
10-180m/min
Max. Speed of Material Printing
120-150m/min,according to different material and print design
Thickness of Plate
1.7mm,1.14mm, 2.84mm Or as your request
Machine weight
Around 9600kgs
Machine dimension(L*W*H)
7.3*2.8*3.3m
Power
Voltage: 380V, 3PH, 50HZ/60HZ
Unwind Unit
Unwind Roller
Air shaft
Max. Width of Roller
1300mm
Max. Width of Printing
1260mm
Max. Dia. of Unwind (standard)
Φ1000mm
Type of Unwind
Air shaft
Unwind EPC
Electrical Edge Correction Device
Winder magnetic
10kg according to your material weight
Winder inner core diameter.
76mm
Traction Unit
Constitution of Traction
Aluminum roller
Printing Unit
Constitution of Printing
Aluminum Roller, Plate roller, Ceramic Anilox Roller,
Chamber doctor blade, ink pump
Plate Roller
400mm, for other size, additional cost needed
Material of Plate
Resin
Drive Type
Drive by BIG DRUM GEAR
Color Register Type
Manual
Plate Lifting
Motor adjustment
Anilox Roller
Ceramic Anilox Roller: 1pcs/per color
ceramic cylinder roll(standard)
80-1000LPI
Frame thickness
100mm
Heating and Drying Unit
Type of Heating and drying
Blowing first then heating
Rewind Unit
Type of rewind
Central rewind
Max. Dia. of Unwind(standard)
Φ1000mm
Configuration
Unwind & Rewind Part
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 2YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 3
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 4YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 5YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 6

Air Shaft

Tight to material,flat material,better printing.

Tension Control

Control unwind parts balance material when running.

Pneumatic Cylinder Load & Unload

It is easy to transport and loading material.
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 7YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 8

Ultrasonic Web Guide

Make the rewind part be more tighter, tracking the edge swift when printing.

Hydraulic Station

Output hydraulic oil to the hydraulic cylinder on the machine.
Printing Part
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 9
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 10YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 11YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 12

Ceramic Anilox Roller

Transfer ink evenly,improve the printing effect. 80-800 LPI

Printing Cylinder

Carrying plate,stick the plate on this roller 400mm(standard)

Ink Motor

Can independently control roller running,make the ink keep wet.
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 13YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 14

Chamber Doctor Blades

Evenly ink when printing process.Better for smell and solvent waste,speed can be fast,no need rubber roller to transfer ink.

Auto Lubricating System

Timing oil the big gear.
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 15YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 16

Ink Pump(6 pcs)

1.Suck the ink automatically.
2.Adopt the automatic circle system.

PLC Control

Touch screen.
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 17YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 18

Video Inspection

1.Check the print effect.
2.Together insert to machine.

Remoter

1.One control the crane.
2.One for adjust the plate roller.
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 19YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 20

Central Drum

1.Made from superior alloy.
2.Steel and precise dynamic balance and electroplated treatment.
3.Installed the high precision encoder, synchronous the speed.

Transmission

Driven by a big gear,high accuracy.
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 21YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 22

Frame

1.Made of alloy cast iron with high strength.
2.Thickness:100mm.

Guide Roller

Aluminium roller Φ100mm(Surface oxidation treatment).
Drying Unit
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 23YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 24

Top Main Oven

3 pcs motor for the top(dry heater + fan) Total 54KW

Color Group Oven

Installed after the printing units.
Optional Device
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 25YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 26YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 27

Anilox Ultrasonic Cleaning Machine

Using ultrasonic vibration to peel off and clean the ink on the surface of the anilox roller.

Plate Mounting Machine with Camera

Mainly used in flexograhic printing machine to complete plate mounting operation.

Crane

Lift and down printing cylinders and anilox roller.
Applications
It is widely used for magazines,paper,books and packs for food,cosmetic and so on.
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 28
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 29
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 30
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 31
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 32YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 33

YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 34
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 35
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 36
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 37
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 38
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 39
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 40YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 41YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 42
YTC-41300 CI Type Automatic Multicolor Flexo Label Printing Machine Four Colors 43
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
