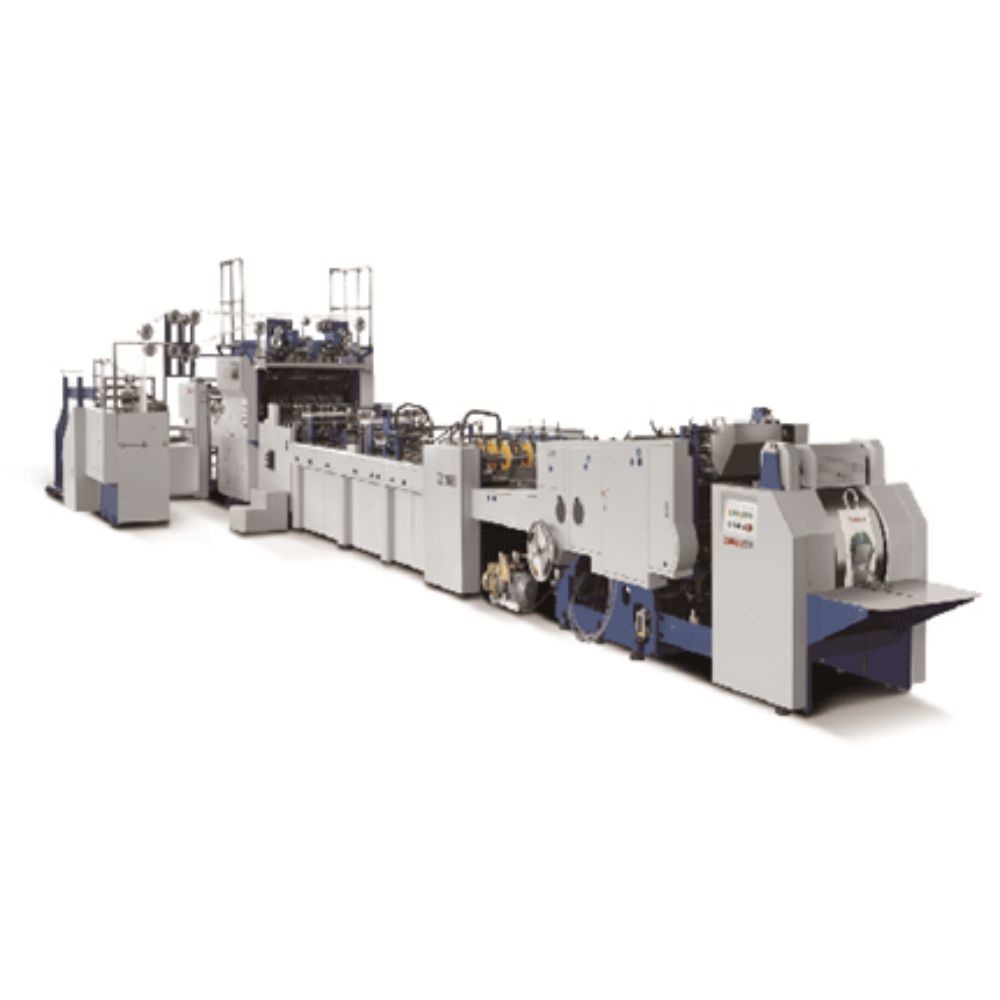

PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min

PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Minimum Order Quantity: 1 Set
Price: US 350000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Model Number: PRY1260S-450 Machine Type: Bag Forming Machine
Material: Paper Voltage: 380V
Dimension: 16.1*5.3*3.1m Weight: 22000 KG
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty: 1 Year Max Speed: 70pcs/min
Max. Sheet: 1200*600mm Min. Sheet: 620*350mm
Bottom Width: 80-170mm Handle Patch Width: 35-55mm
Handle Patch Weight: 100-300g Handle Patch Roll Diameter: 1000mm
Handle Patch Roll Width: 70-110mm Speed: 40-70bags/min
Total Power: 25kw Total Weight: 22T
High Light:

Paper Bag Making Machine 70pcs/Min

,

Square Bottom Paper Bag Making Machine

,

Fully Automatic Paper Bag Machine

PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 0
PRY1260S-450 Paper Bag Making Machine
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 1
Features
This machine is designed to manufacture square bottom paper bags with handles from sheet paper in blank or printed.Combined with a handle making machine,handle making, handle application,bag mouth folding,side gluing,tube forming,bottom impressing,bottom gluing,bottom forming and final product collection can be completed within a fully automatic process.It is ideal equipment for making paper bags for foodstuff bags, shopping bags and so on,and can produce paper bags of different sizes.
1.Automatic Pre-stack feeder
2.Automatic paper patch handle making
3.Automatic top folding/Reinforced cardboard pasting
4.Automatic die cutting
5.Automatic tube forming
6.Automatic square bottom folding
7.Automatic hole punching
8.Automatic bottom gluing
9.Screw rod adjusting bottom clip system(can save adjustment time)
Features:
1.Paper Handle feeding system:Advanced concept of mechanical design,mechanical automatic tension adjustment,and automatic adjusting paper handle position.
2.Paper Handle forming system:hyperbolic rocker mechanism,with the America ‘Nordson’’ hot melt glue box, computer control spray adhesive length and position,automatic slitting system.
3.Feeding system:Enhanced pre-stack paper system with servo system so it realizes non-stop paper feeding, greatly save the time of paper stacking and adjusting.Only we use servo system control machine this part so you will have newest function in the market.
4.Front and side aligning system:According the aligning system,each paper can precision positioning,make sure mass production consistency.
5.Opening edge cutting system:Can adjust the cutting position on line;make a good foundation for the paper handle paste.
6.Reinforced cardboard gluing system:Can divide into conditions:Manually and automatic. Unified control by center computer,make sure uniform gluing,avoid no glue and much glue.
7.Top folding system:Control by machine’s cam,to finish top fold,Improve the paper making process efficiency.
8.Automatic side gluing system:Proprietary technology,can automatic gluing,uniform and steady.
9.Automatic tube forming and gusset forming system:Can automatic forming bag tube.
10.Automatic die cutting and hole punching system:Can automatic creasing and punching hole,with these two functions,more convenience.
11.Automatic bottom sealing system:Use prod gripper to seal the bottom,no scrape of bag surface,protect the easy damaged bag surface.
12.Automatic collection system:Can automatic counting,it’s convenience to collect the bags.
Technical Parameters
PRY1260S-450 Paper Bag Making Machine
Max. Sheet
1200*600mm
Min. Sheet
620*350mm
Sheet Weight
100-230g
Bag Width
200-450mm
Bottom Width
80-170mm
Bag Length
250-540mm
Top Turn in Width
40-60mm
Handle Patch Length
150-400mm
Handle Patch Width
35-55mm
Handle Patch Weight
100-300g
Handle Patch Roll Diameter
1000mm
Handle Patch Roll Width
70-110mm
Paper Rope Diameter
4-6mm
Handle Rope Height
170-195mm
Speed
40-70bags/min
Total Power
25kw
Total Weight
22T
Machine Size
16.1*5.3*3.1m
Glue Type
water soluble cold glue(hot-melt glue)
Suitable paper:kraft paper,art paper(including film laminated paper)
PRY1260S-450 machine have servo control the handle patch runing systerm so it will don’t have any of scrap handle patch and wastage when machine runing.And more easy to adjust this part of machine.Reduce at least 60minutes of machine adjust time.
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 2

A
B
C
D
E
Max. Size
1200mm
620mm
170mm
450mm
490mm
Min. Size

 600mm
350mm
80mm
220mm
250mm
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 3
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 4
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 5
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 6
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 7
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 8
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 9
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 10
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 11
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 12
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 13
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 14
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 15
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 16
PRY1260S-450 Fully Automatic Square Bottom Paper Bag Making Machine 70pcs/min 17
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
