Home ProductsPaper Bag Making MachineFully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430

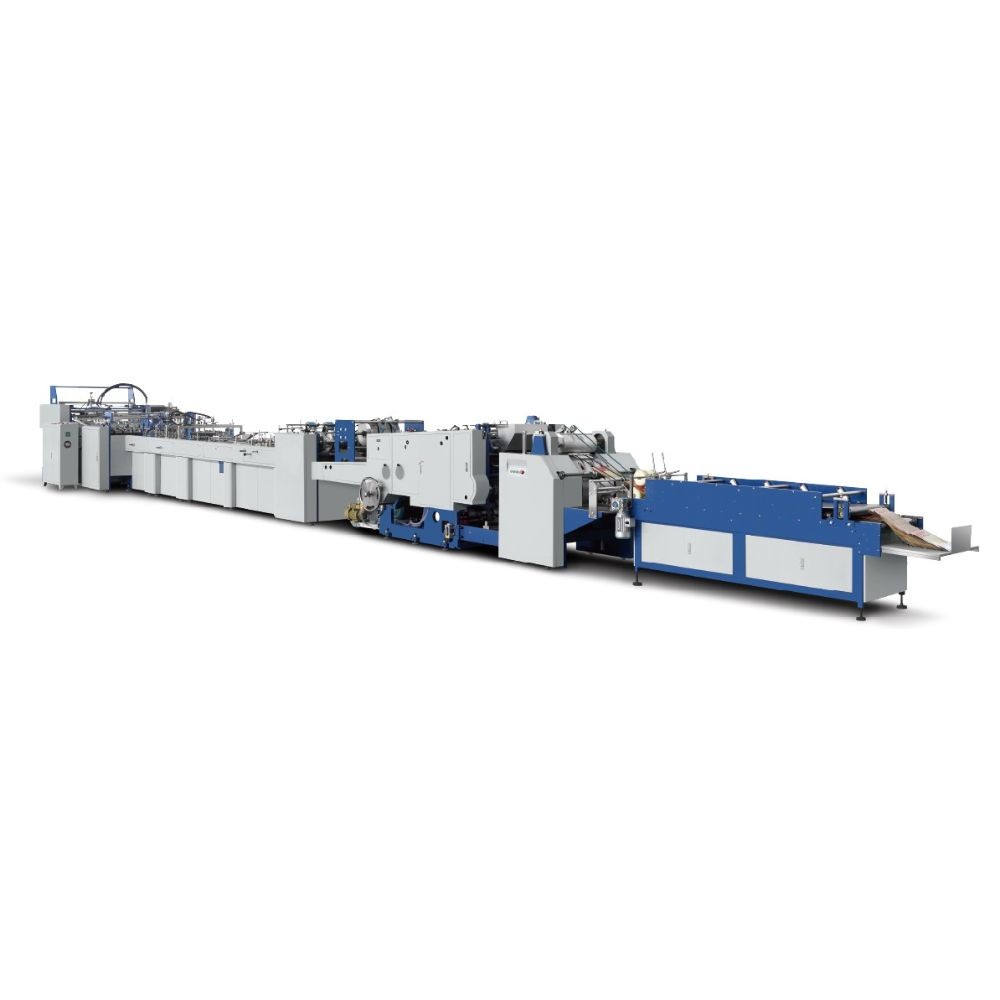

Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430

Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430
Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430
Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430 Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY1200CS-430
Minimum Order Quantity: 1 Set
Price: US 198000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Year
Contact Now
Machine Type: Bag Forming Machine Material: Paper
Model Number: PRY1200CS-430 Voltage: 380V
Dimension: 14800X2400X1800mm Weight: 12000 KG
Warranty: 1 Year Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Max Speed: 80pcs/min Input Max.Size: 1200mm*600mm
Input Min.Size: 540mm*300mm Top Folding Sheet Weight: 190g/m^2-300g/m^2
No Top Folding Sheet Weight: 120g/m^2-300g/m^2 Bottom Width: 80mm-180mm
Bag Width: 180mm-430mm Bag Length: 250mm-500mm
Speed: 50-80 Pcs/min Machine Weight: 12T
Glue Type: Water Base Glue/hot Melt Glue
Highlight:

Automatic Sheet Feeding Paper Bag Machine

,

Paper Bag Making Machine 80pcs/min

,

380V Automatic Paper Bag Making Machine

Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430 0
PRY1200CS-430 Paper Bag Making Machine
Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430 1
Features
PRY1200CS-430 fully automatic sheet-feeding paper bag making machine(Adopt Italy technology)is suitable for the mass bag production,it is the first choice of medium and top grade handbag device.The product adopts mechanical,electricity,light,gas integration technology,setting a number of its proprietary technology,can one-time leaflet after press and creased paper,automatic paper feeding,positioning,tope folding,tube folding,bottom folding and gluing to compa-ction output.The variable speed drive technology,combined with the system of vertical and horizontal creasing,bottom folding realize trackless bag molding process.using the PLC programmable control,frequency control technology to realize the integral multi-dimensional control,more centralized control and single point remote control operating system.with characteristics of good quality and high efficiency,its technology ranks leading level in domestic products.
Working Procedure (finished paper bag tube folding and top edge fold)
Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430 2
Technical Parameters
PRY1200CS-430 Paper Bag Making Machine
Input Max.Size
1200mm * 600mm
Input Min.Size
540mm * 300mm
Top Folding Sheet Weight
190g/m2-300g/m2
No Top Folding Sheet Weight
120g/m2-300g/m2
Bottom Width
80mm-180mm
Bag Width
180mm-430mm
Power
20KW
Bag Length
250mm-500mm
Speed
50-80 pcs/min
Machine Weight
12T
Machine Size
14800 * 2400 * 1800mm
Glue Type
Water base glue/hot melt glue
Suitable Paper:Kraft paper,art paper (including film adhesive paper)
Paper need pre-creasing
Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430 3

A
B
C
D
E
Max. Size
1200mm
600mm
180mm
430mm
500mm
Min. Size
540mm
300mm
80mm
180mm
250mm
Applications
Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430 4 Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430 5 Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430 6

Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430 7
Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430 8
Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430 9
Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430 10
Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430 11
Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430 12
Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430 13
Fully Automatic Sheet Feeding Paper Bag Making Machine PRY1200CS-430 14
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
