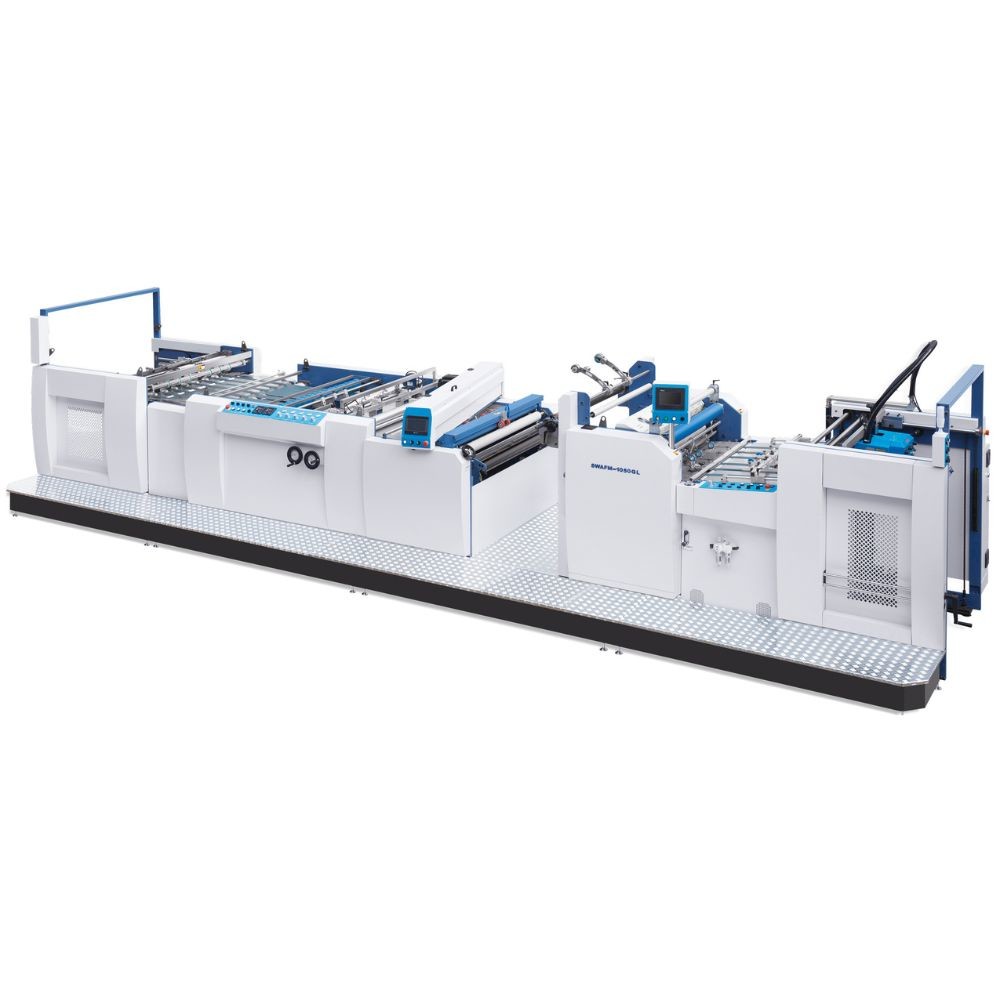

SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter

SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SWAFM-1050GL
Minimum Order Quantity: 1 Set
Price: US 69700 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Type: Laminating Machine Automatic Grade: Automatic
Driven Type: Electric Voltage: 380 V
Dimension: 8950 * 2400 * 1900 Mm Weight: 5600 KG
Model: SWAFM-1050GL Max Paper Width: 1050 * 820 Mm
Min Paper Size: 300 * 300 Mm Paper Thickness: 90-600 Gsm
Max Laminating Speed: 0-100/ 0-75(Chain Knife) M/min Gross Power: 40/20 ( Air Compressor+5.5) Kw
Pre-Stacker: 1850 Mm
High Light:

PLC Fully Automatic Laminator

,

Thermal Paper Film Laminating Machine

,

380V Film Laminating Machine

SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 0
SWAFM-1050GL Automatic Film Laminating Machine
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 1
Features
SWAFM-1050GL automatic laminator is updated laminating machine for film and paper lamination.The machine is equipped with complete automation to paper feed,lamination, paper separation,deivery and temperature control.The electrics and pneumatics are controlled by PLC (programmable control) system,and can be operated easily in touch screen.Heating roller adopts electromagnetic heater.To meet users’ different requirements,delivery section is optional for stacker.This machine centralizes the features of high automation, high precision of lamination,  humanized configuration and easy operation,and is the best choice with high cost performance for large and medium-size enterprises.
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 2 SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 3
Feeder head                                                                                          Side-lay regulator
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 4 SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 5
Overlap regulator                                                                               Electromagnetic-heated laminating unit
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 6 SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 7
Chain knife sheeting system                                                         High-speed mechanical sheeter
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 8 SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 9
High Speed Stacker                                                                           Embossing system improves sheets exquisiteness to                                                                                                                                     maximize the products value(Optional)
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 10 SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 11
Double lamination unit improves laminated film            UV film reinforcement system avoids film peeling and
fastness(Optional)                                                      blisters(Optional)
Feeder
*Sheets pre-stacker provides a continuous feed without a stop
*Servo-controlled feeder head,synchronizing with the host speed,replenishes sheets
*Sheets gap sensor for self-protection
*The overlap regulator adjusts the sheets overlapped length
*Side-lay regulator aligns sheets
Laminator
*Electromagnetic-heated,chrome laminating roller
*Hydraulic pump along with rubber roller exerts a big,even and constant laminating pressure
*Film mounted on a quick-change,micro-adjustable air-shaft
*Air-shaft ensures precise film release tension and speed
*Film roll slitting and perforating mechanisms
*Laminating pressure up to 10MPa
Sheeter
*Adjustable pro-active,anti-curl bar takes the curl out of laminated sheets
*Steer wheels exert negative force on one side to help with sheeting
*Adjustable sheeting pressure
*Equipped with both high-speed mechanical and chain knife sheeting systems
*Chain knife sheeting system facilitates PET and PVC film sheeting
Stacker
*Corrugated delivery system flattens and delivers sheets
*Side joggers and back-stop stack sheets in order
*Non-stop automatic stacker with a sheets counter
Others
*Feed,overlap and side-lay adjustment,laminating,sheeting and stacking are finished in one pass
*Touch screen and control panel with colourful buttons
Technical Parameters
SWAFM-1050GL Automatic Film Laminating Machine
Model
SWAFM-1050GL
Max Sheet Size
1050 * 820 mm
Min Sheet Size
300 * 300 mm
Laminating Speed
0-100 / 0-75(Chain Knife) m/min
Sheet Thickness
90-600 gsm
Gross Power
40/20 ( air compressor+5.5) kw
Total Weight
5600 kg
Overall Dimensions
8950 * 2400 * 1900 mm
Sheets Pre-Stacked Length
1850 mm
Configuration
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 12 SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 13

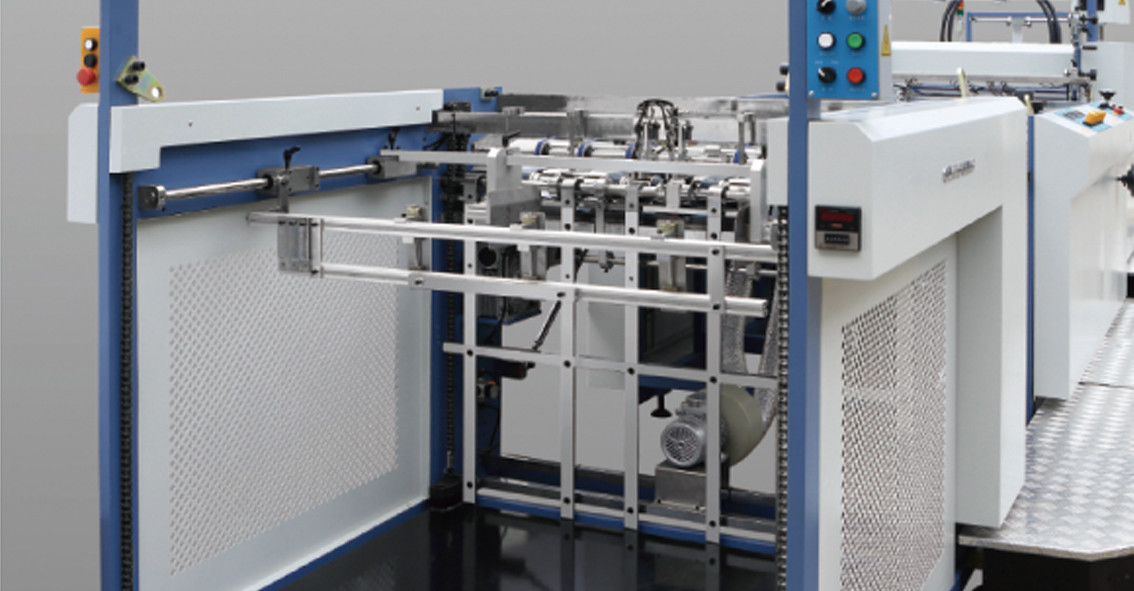

Auto Feeder

This machine is equipped with a paper pre-stacker,Servo controlled feeder and a photoelectric Sensor to ensure that paper is continuously fed into the machine

Electromagnetic Heater

Equipped with advanced electromagnetic heater.Fast pre-heating. Energy saving.Environmental protection.
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 14 SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 15

Side Lay Regulator

The Servo controller and Side Lay Mechanism guarantees precise paper alignment at all times.

Human-computer Interface

A user-friendly interface system with a colour touch­screen simplifies the operation process.The operator can easily and automatically control paper sizes,overlapping and machine speeds.
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 16 SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 17

Anti-Curvature Device

The machine is equipped with an anti-curl device,which ensures that paper remains flat and smooth during the lamination process.

High Speed Separating System

This machine is equipped with a pneumatic separating system,pneumatic perforating device and photoelectrical detector to rapidly separate the paper according.to the paper size.
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 18 SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 19

Corrugated Delivery

A corrugated delivery system collects paper easily.

High Speed Automatic Stacker

The pneumatic stacker receives the paper, keeping them in order, while rapidly counting every sheet.
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 20
Chain Knife(Optional)
Chain cutter helps to separate PET film.

SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 21
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 22
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 23
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 24
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 25
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 26
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 27
SWAFM-1050GL Fully Automatic Thermal Paper Film Laminating Machine With Chain Cutter 28
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
