| Max. Laminating Width: | 370mm 500mm 650mm | Operating Speed: | 13 Meters/minute |
|---|---|---|---|
| Paper Thickness: | 125 ~ 350 Gsm | Laminating Temperature: | 90 ~ 110 Degree (normal) |
| Total Power: | 2000 W | Upper Heating Roll: | Steel Roll (standard) |
| Lower Heating Roll: | Rubber Roll | Control Panel: | Digital LED System |

|

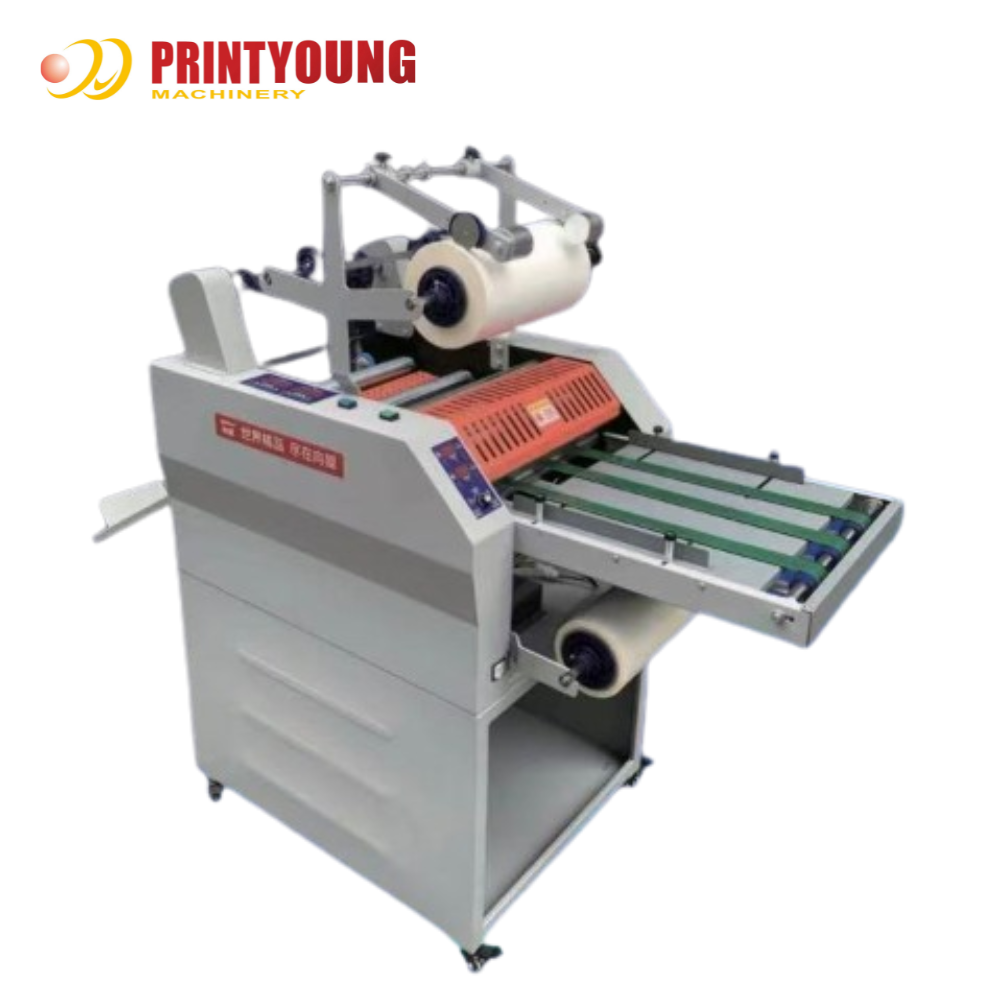

PRY-390D Film Laminator
|
|||
|
Max. Laminating Width
|
370 mm
|
500 mm | 650 mm |
|
Operating Speed
|
13 meters/minute
|
||
|
Paper Thickness
|
125 ~ 350 gsm
|
||
|
Laminating Temperature
|
90 ~ 110 degree (normal)
|
||
|
Total Power
|
2000 W
|
||
|
Temperature Control
|
upper / lower temperature are controlled separately
|
||
|
Upper Heating Roll
|
steel roll (standard)
|
||
|
Lower Heating Roll
|
rubber roll
|
||
|

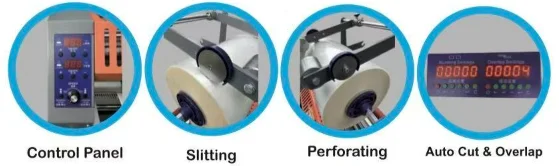

Control Panel
|
digital LED system
|
||
|
Feeding Mode
|
manual
|
||
|
Overlap
|
yes
|
||
|
Auto Bursting
|
yes
|
||
|
Optional
|
two sides lamination with auto cut function (can be option in future)
|
||
|
Slitting Function
|
yes
|
||
|
Anti-curling Function
|
yes
|
||
|
Conveyor Belt Number
|
3
|
4 | 5 |
|
Optional
|

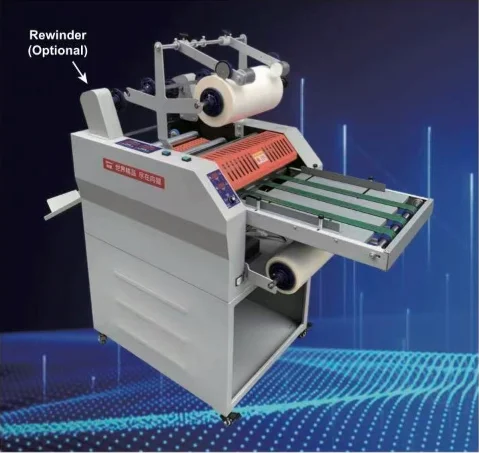

lower / upper rewinder (must appoint when order)
|
||
|
Machine Size
|
150 * 60 * 126 cm
|
150 * 73 * 126 cm | 150 * 88 * 126 cm |
|
Option
|
compressor
|
||
