PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine

PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-1080ER
Minimum Order Quantity: 1 Set
Price: US 49500 / 59500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Model: PRY-1080ER / PRY-1380ER Max. Paper Width: 1080 Mm / 1380 Mm
Min. Paper Width: 300 Mm Max. Winding Diameter: 1500 Mm
Max. Unwinding Diameter: 1400 Mm Paper Thickness: 50 ~ 600 Gsm
Speed: 10 ~ 120 M/min Weight: 7500 Kgs / 8500 Kgs

PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 0

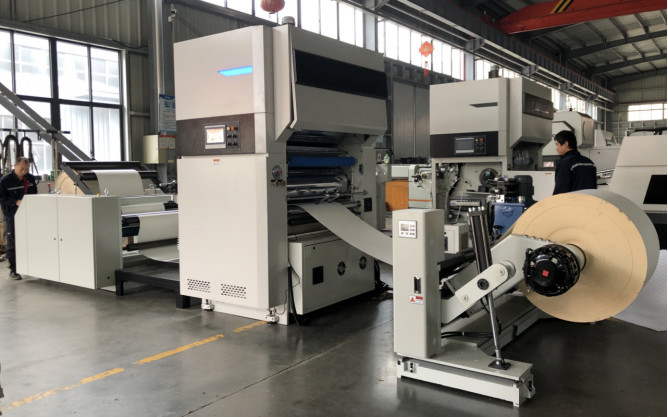

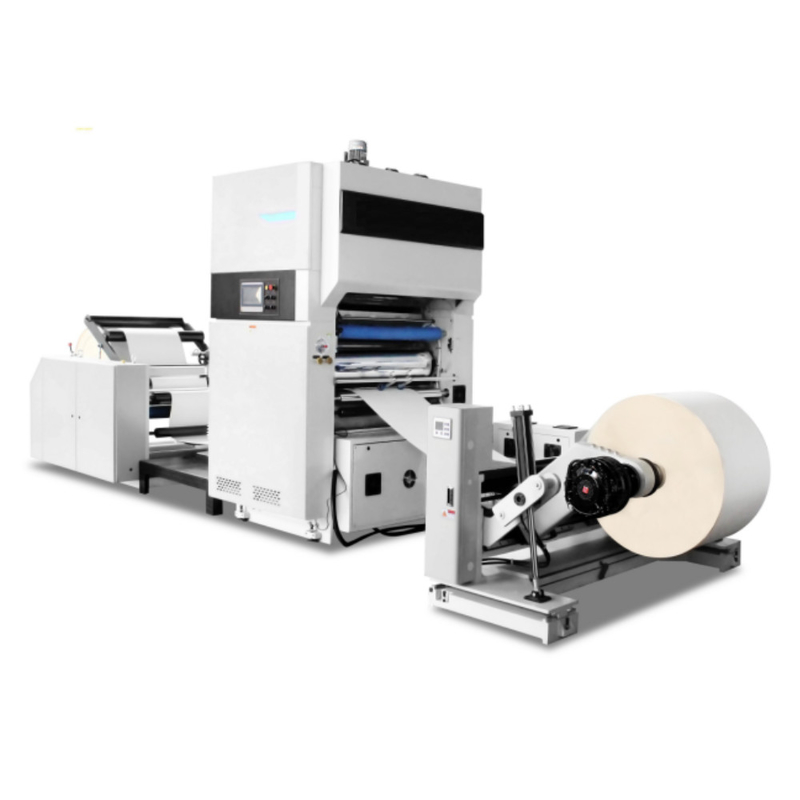

PRY-1080ER Automatic Vertical Film Laminating machine
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 1

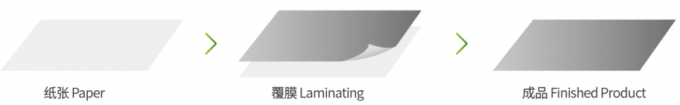

Features
PRY-ER fully automatic roll to roll high-precision and multi-duty lamination as a professional equipment used for plastic film laminating on the surface of paper printer matter.
* Water-based gluing (waterborne polyurethane adhesive) dry laminating. (water-based glue,oil-based glue,non-glue film)
* Thermal laminating (Pre-coated /thermal film)
* Film:OPP,PET,PVC,METALIC,etc.
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 2
Technical Parameters
PRY-ER Automatic Film Laminating Machine
Model
PRY-1080ER
 PRY-1380ER
Max. Paper Width
1080 mm
 1380 mm
Min. Paper Width
300 mm
Max. Winding Diameter
1500 mm
Max. Unwinding Diameter
1400 mm
Max. Load-bearing Capacity for Winding
1200 kg
 2000 kg
Max. Load-bearingCapacity of Uncoiling
1200kg
 1600kg
Paper Thickness
50 ~ 600 gsm
Speed
10 ~ 120 m/min
Glue-less Film Thickness
10 / 12 / 15
Water Coating Thickness
4 ~ 10
Specifications of Pre-coated Film
1005,1006,1206(1508 and 1208 for deep embossing paper)
Main Motor Power
5
Work Pressure
15
Thickness of the Wire
25 mm2
Weight
7500 kgs
 8500 kgs

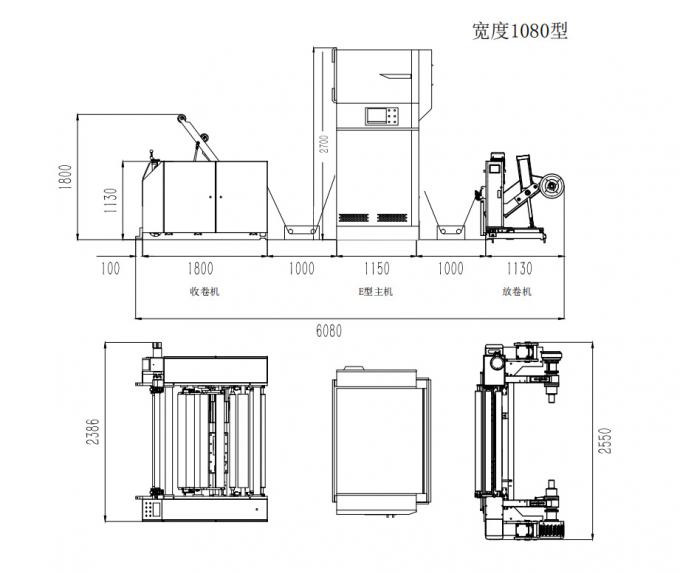

Installation Dimensions of the Whole Machine
7500 * 3000 * 3170 mm
 7500 * 3300 * 3170 mm
Mode of Transportation
40 foot
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 3
Configuration

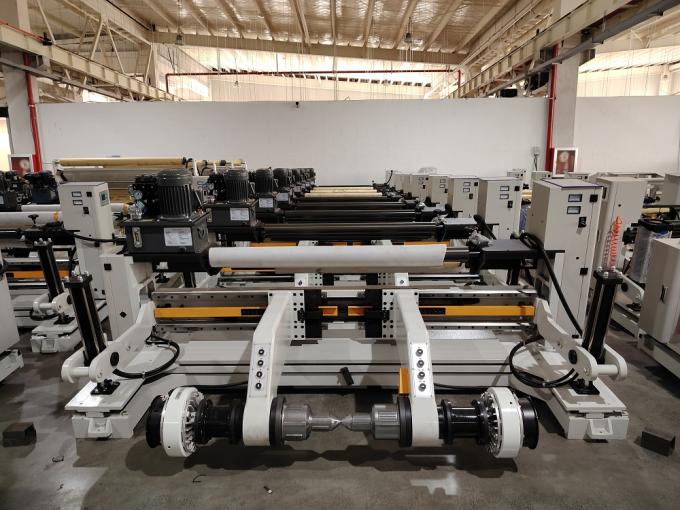

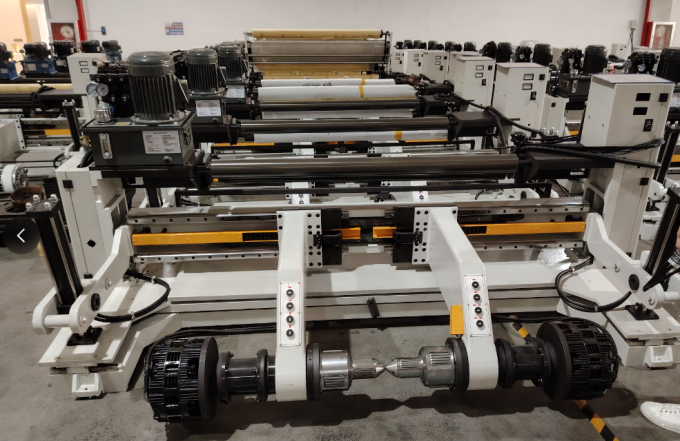

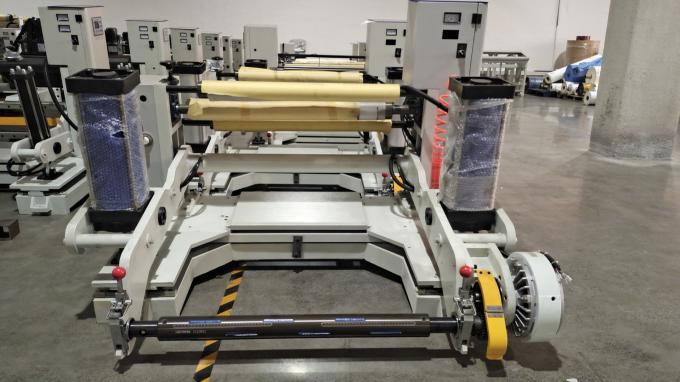

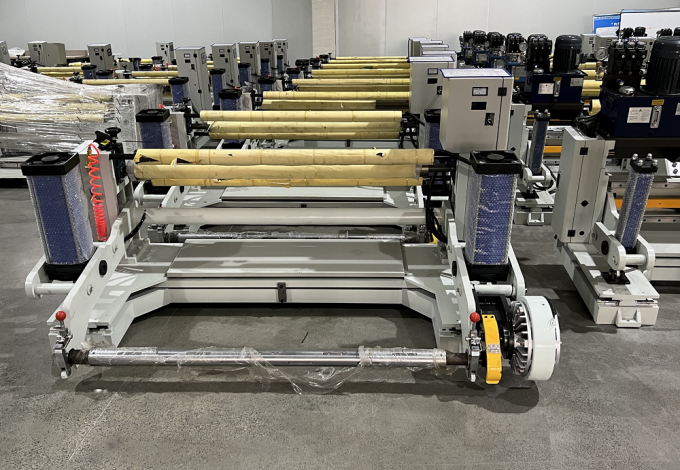

Unwinding Unit

Roll release method A type:Standard type shaftless clamping
Most printing company and post-press packaging factory use roll paper with a standard roll weight of less than 1,200 kg.
It adopts shaft-less clamping and hydraulic lifting mode,the tension is controlled manually/ automatically by air brake shaft-less clamping in 3,6,and 12 inch,can suits for 3 sizes paper roll inner core.(standard core size is 3” & 6”, the 12” option customize)
Simple and clear panel easy to operate.
Roll release method B type:Heavy duty shaftless clamping
If the paper roller weight more than 1500kgs,we will suggest option the B type
It adopts shaft-less clamping and hydraulic lifting mode,the tension is controlled manually/ automatically by air brake shaft-less clamping in 3,6,and 12 inch,can suits for 3 sizes paper roll inner core.(standard core size is 3” & 6”,the 12” option customize)
Roll release method C type
Inflatable shaft retractable type
(Standard 3-inch inflation shaft,can be equipped with 5.5-inch inflation shaft)
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 4PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 5
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 6PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 7
A:Pneumatic brake.Suggest option this type                                              B:Magnetic powder,electric brake

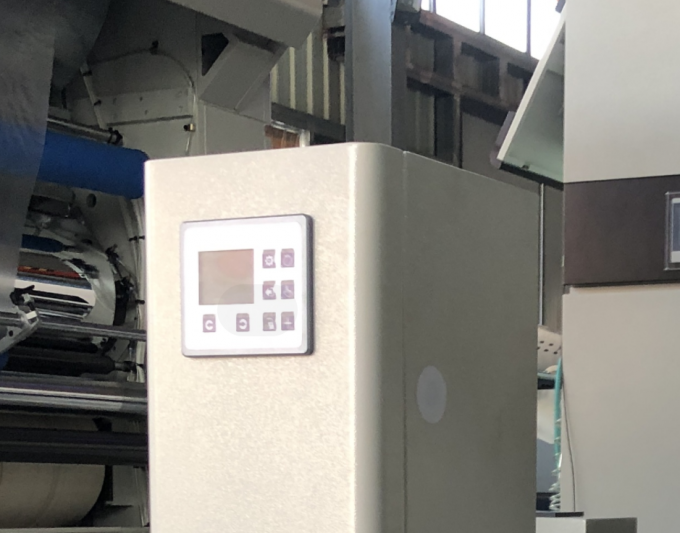

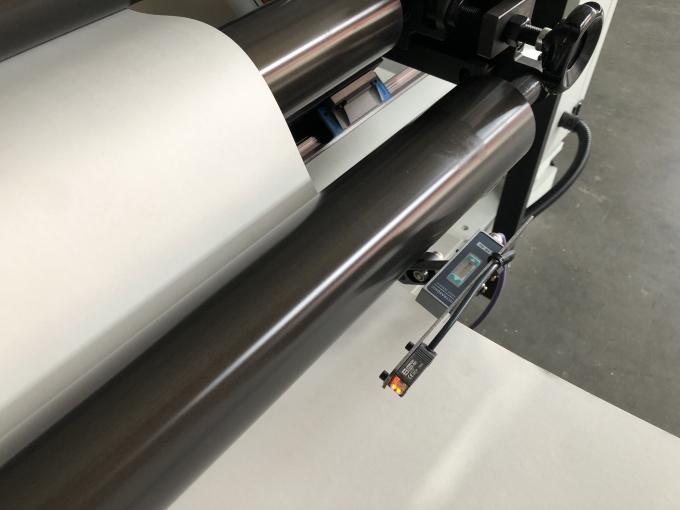

High-precision Correction System

Equipped with CCD vision sensor and rectification controller,photoelectric tracking/tracking or tracking/travel ±75mm,tension is controlled by the system autonomously.
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 8PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 9

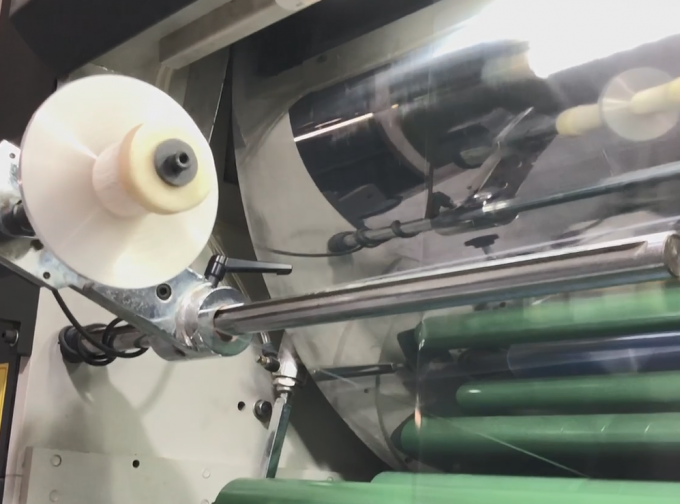

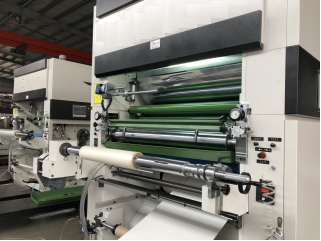

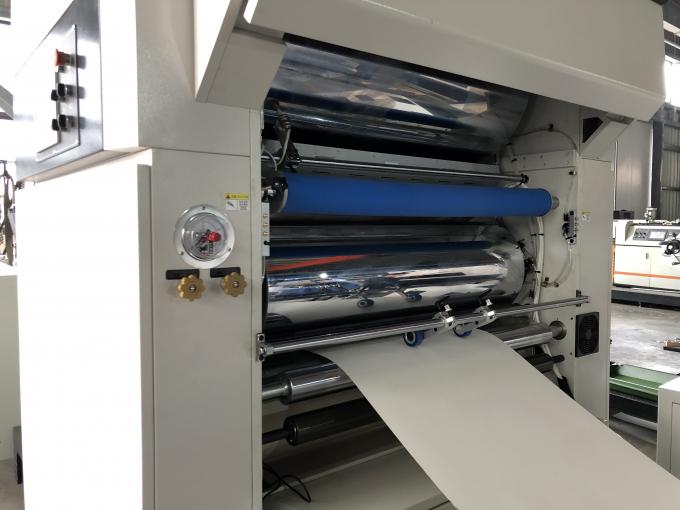

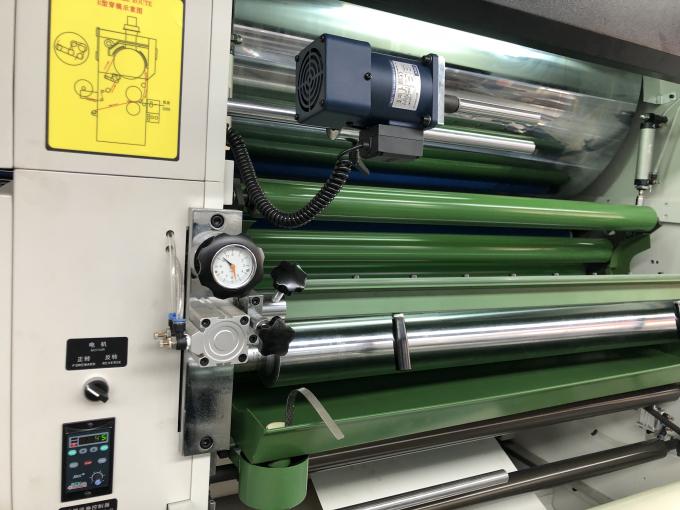

Laminator Host

Depending on the width of the equipment,the glue coating part will have different design structures.The existing pictures are for reference only.
1.Drying roller diameter increased to 800mm,using electromagnetic heating system.
2.Max. pressure of press roller is 12T-15T.
3.Gluing system Teflon process treatment,easy to clean and non-sticky.
4.Adopt electromagnetic heating system,heating up and cooling down fast,temperature stability,heating steel roller using built-in temperature measuring device,more accurate temperature measurement.
5.Glue thickness adjustment is precisely adjusted through instrument data.
6.Waste film reeling device.
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 10PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 11
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 12PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 13

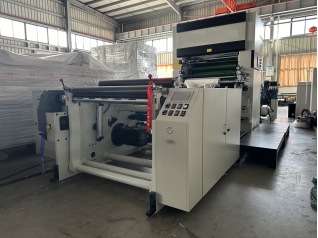

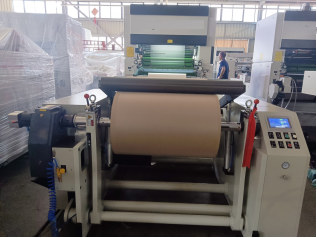

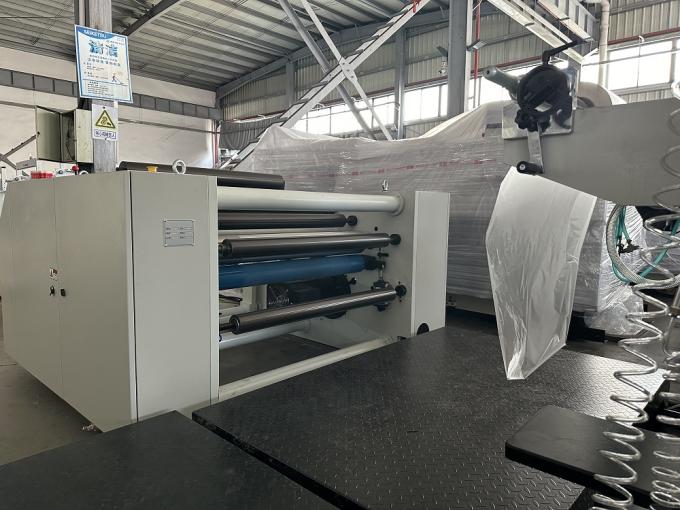

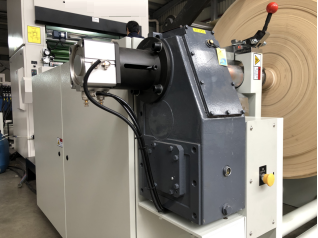

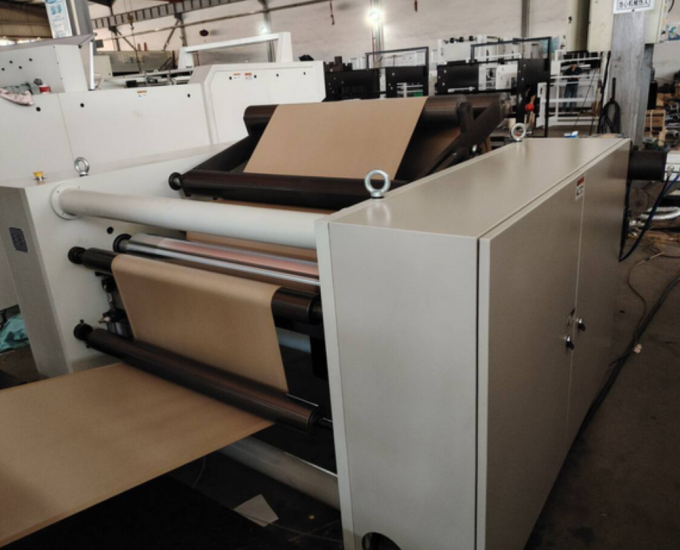

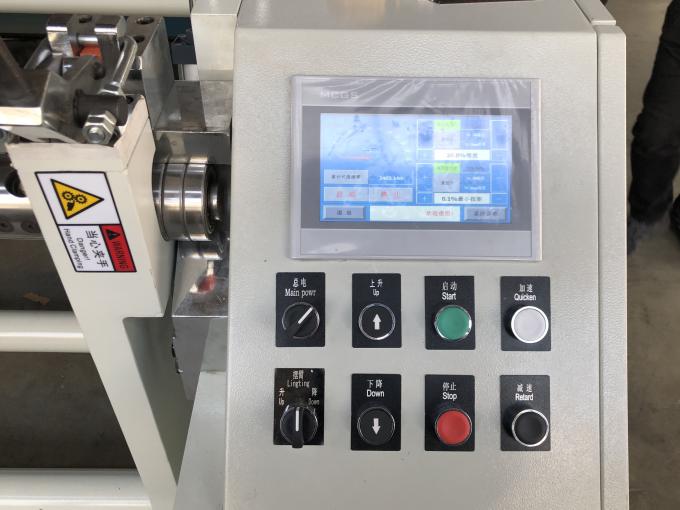

Rewinding Unit

It adopts AC vector frequency conversion control and cooperates with the unwinding system.The lifting and lowering of the paper roll is driven by double-cylinder hydraulic pressure.At the same time,it is equipped with a torque adjustment system and an air expansion shaft for winding.
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 14PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 15PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 16
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 17PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 18PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 19
Applications
Widely applicable for laminating in packaging,paper box,books,magazines,calendars,carton, handbags,gift box,wine packaging paper improving the printing matter grades,and achieve the purpose of dust-proof,water-proof,oil proof.It’s the best choice for printing and laminating enterprises of all scales.
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 20
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 21
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 22
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 23
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 24
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 25
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 26
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 27
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 28
PRY-ER Roll to Roll Fully Automatic Vertical Film Laminating Machine 29
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
