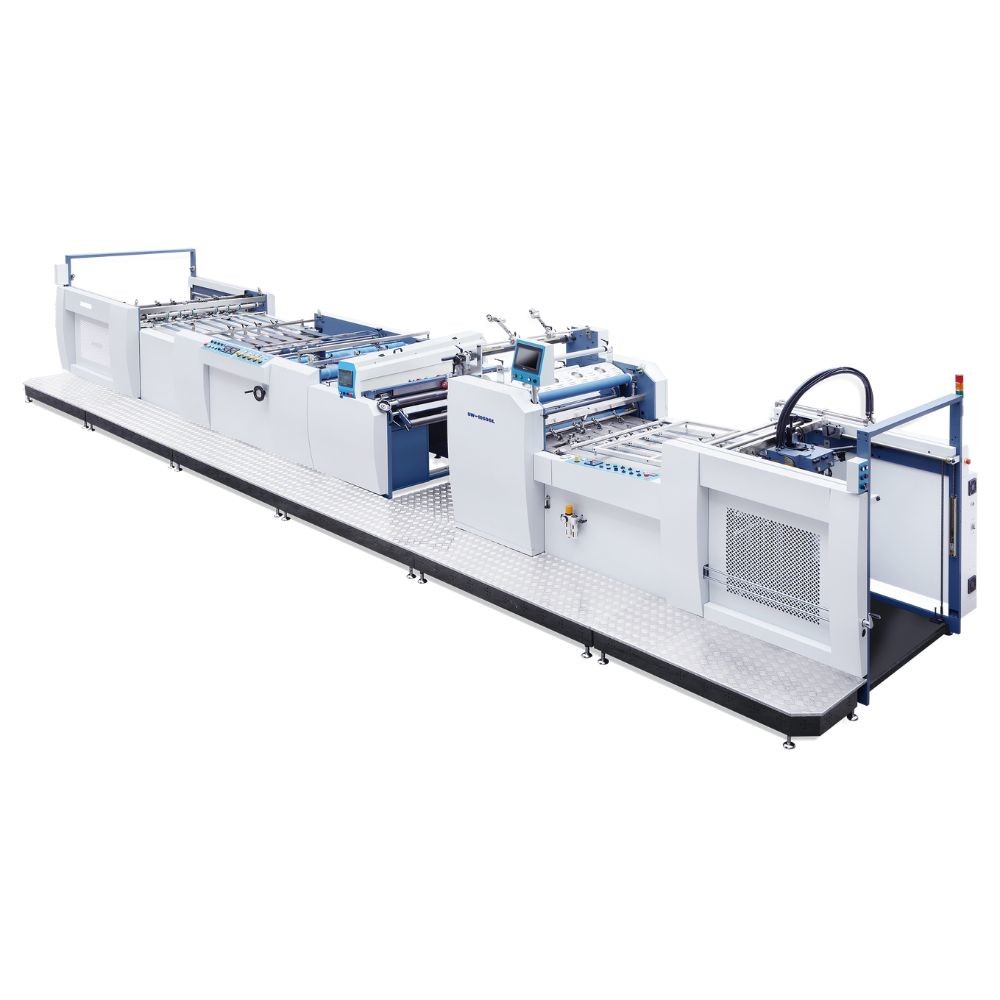

SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter

SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter
SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SW-1050GL
Minimum Order Quantity: 1 Set
Price: US 76000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Model: SW-1050GL Max Sheet Size: 1050 * 1200 Mm
Min Sheet Size: 350 * 350 Mm Laminating Speed: 0-120 / 0-75(Chain Knife) M/min
Sheet Thickness: 90-600 Gsm Gross Power: 40/20 ( Air Compressor+5.5) Kw
Total Weight: 5300 Kg Overall Dimensions: 10900 * 2400 * 1900 Mm
Sheets Pre-stacked Length: 1850 Mm Type: Laminating Machine
Automatic Grade: Automatic Driven Type: Electric
Voltage: 380V
High Light:

High Speed Thermal Film Laminating Machine

,

Chain Cutter Automatic Laminator

,

Electric Automatic Film Laminating Machine

SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 0
SW-1050GL Automatic Film Laminator
SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 1
Features
Feeder
*Sheets pre-stacker provides a continuous feed without a stop
*Servo-controlled feeder head,synchronizing with the host speed,replenishes sheets
*Sheets gap sensor for self-protection
*The overlap regulator adjusts the sheets overlapped length
*Side-lay regulator aligns sheets
Laminator
*Electromagnetic-heated,chrome laminating roller
*Hydraulic pump along with rubber roller exerts a big,even and constant laminating pressure
*Film mounted on a quick-change,micro-adjustable,electric air-shaft
*Air-shaft ensures precise film release tension and speed
*Film roll slitting and perforating mechanisms
*Laminating pressure up to 10MPa
High-Speed Mechanical Sheeter
*Adjustable pro-active,anti-curl bar takes the curl out of laminated sheets
*Steer wheels exert negative force on one side to help with sheeting
*Adjustable sheeting pressure
*Equipped with both high-speed mechanical and chain knife sheeting systems
*Chain knife sheeting system facilitates PET and PVC film sheeting
High Speed Stacker
*Corrugated delivery system flattens and delivers sheets
*Side joggers and back-stop stack sheets in order
*Non-stop automatic stacker with a sheets counter
Others
*Feed,overlap and side-lay adjustment,laminating,sheeting and stacking are finished in one pass
*Touch screen and control panel with colourful buttons
Technical Parameters
SW-1050GL Automatic Film Laminator
Model
SW-1050GL
Max Sheet Size
1050 * 1200 mm
Min Sheet Size
350 * 350 mm
Laminating Speed
0-120 / 0-75(Chain Knife) m/min
Sheet Thickness
90-600 gsm
Gross Power
40/20 ( air compressor+5.5) kw
Total Weight
5300 kg
Overall Dimensions
10900 * 2400 * 1900 mm
Sheets Pre-Stacked Length
1850 mm
Configuration
SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 2 SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 3

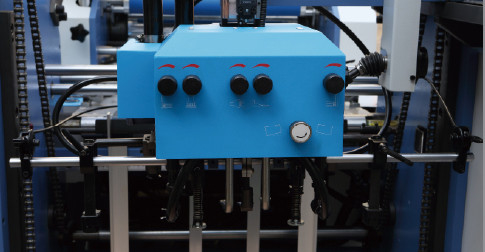

Feeder head                                                                                           Side-lay regulator
SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 4 SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 5

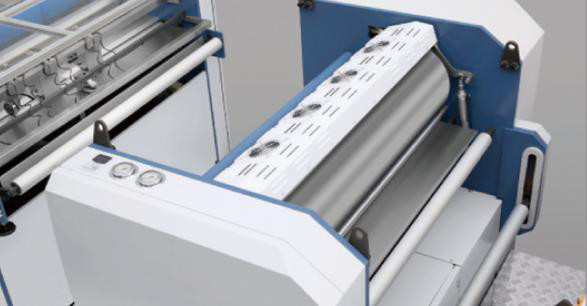

Overlap regulator                                                                                Electromagnetic-heated laminating uSW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 6 SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 7

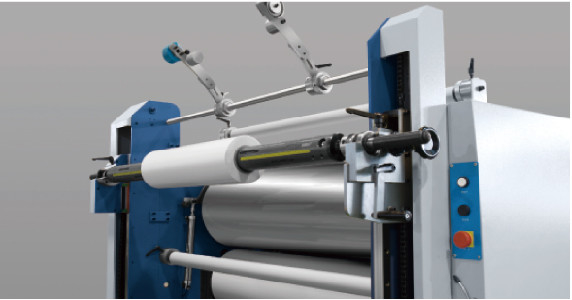

Electric air-shaft                                                                                   Chain knife sheeting system
SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 8 SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 9
High-speed mechanical sheeter                                    High-speed stacker
SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 10 SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 11
Electric-heated powder remover(Optional)                    Double lamination unit improves laminated film                                                                                                                                             fastness (Optional)
SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 12
UV film reinforcement system avoids film peeling and blisters(Optional)

SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 13
SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 14
SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 15
SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 16
SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 17
SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 18
SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 19
SW-1050GL Automatic High Speed Thermal Film Laminating Machine With Chain Cutter 20
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
