Intelligence Automatic Water Base Gluing Dry Film Laminating Machine NFM-H1080

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: NFM-H1080
Minimum Order Quantity: 1 Set
Price: US 89700 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Type: Laminating Machine Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V
Dimension: 8500*2600*3300mm Weight: 8500 KG
Key Selling Points: Automatic Max Paper Width: 1080mm
Max Paper Length: 880mm Min Paper Size: 360*320mm
Speed: 10-110m/min Overlap Precision: ≤±1.5mm
Common Glue Thickness: 4-10g/m2 Non-Stop Feeding Height: 1300mm
Power: 380V-50Hz-3P Working Pressure: 0.6Mpa
Loading: 40HQ
High Light:

Gluing Dry Film Laminating Machine

,

Intelligence Automatic Film Laminating Machine

,

Hot Knife Dry Lamination Machine

Intelligence Automatic Water Base Gluing Dry Film Laminating Machine NFM-H1080 0

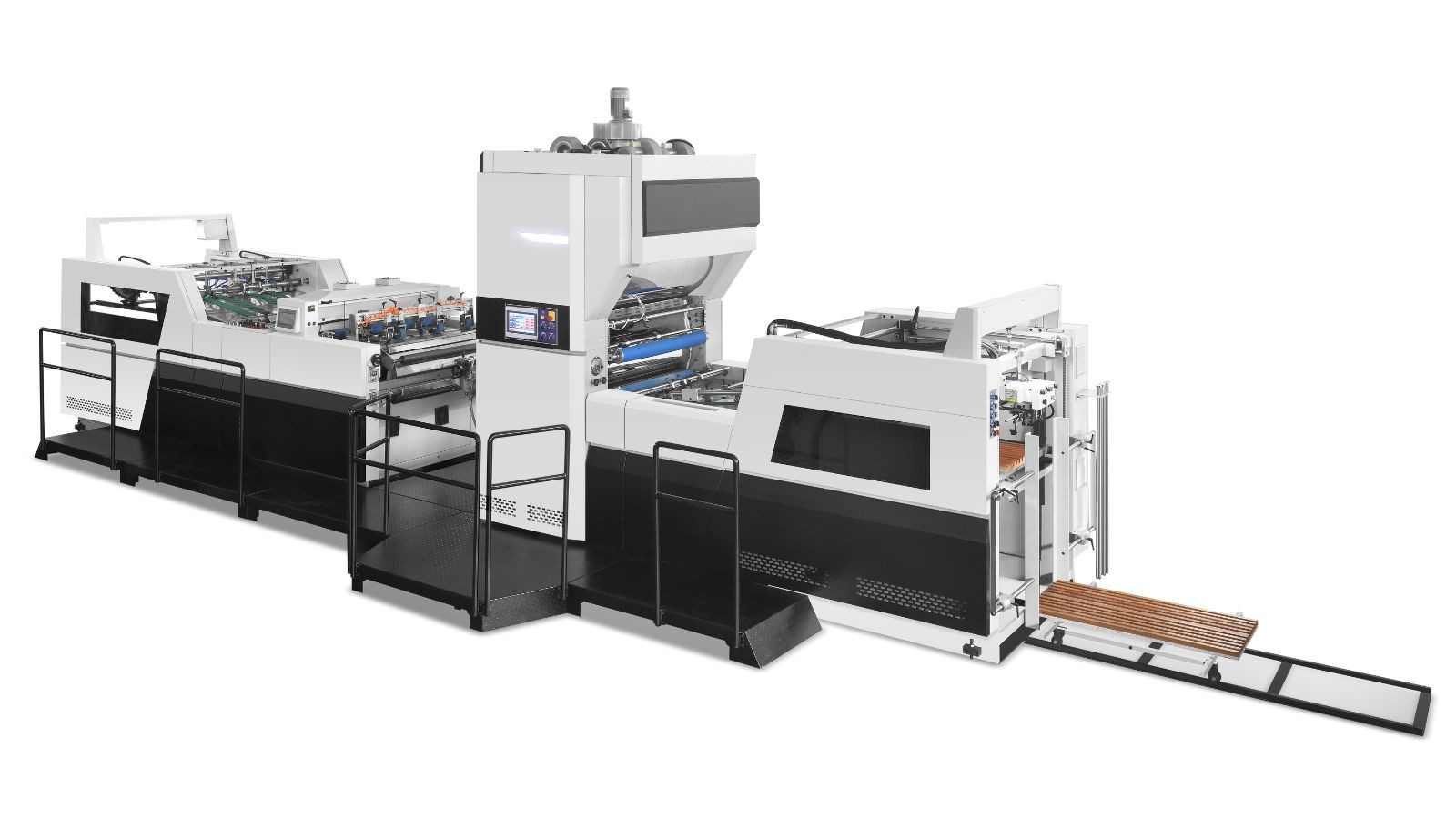

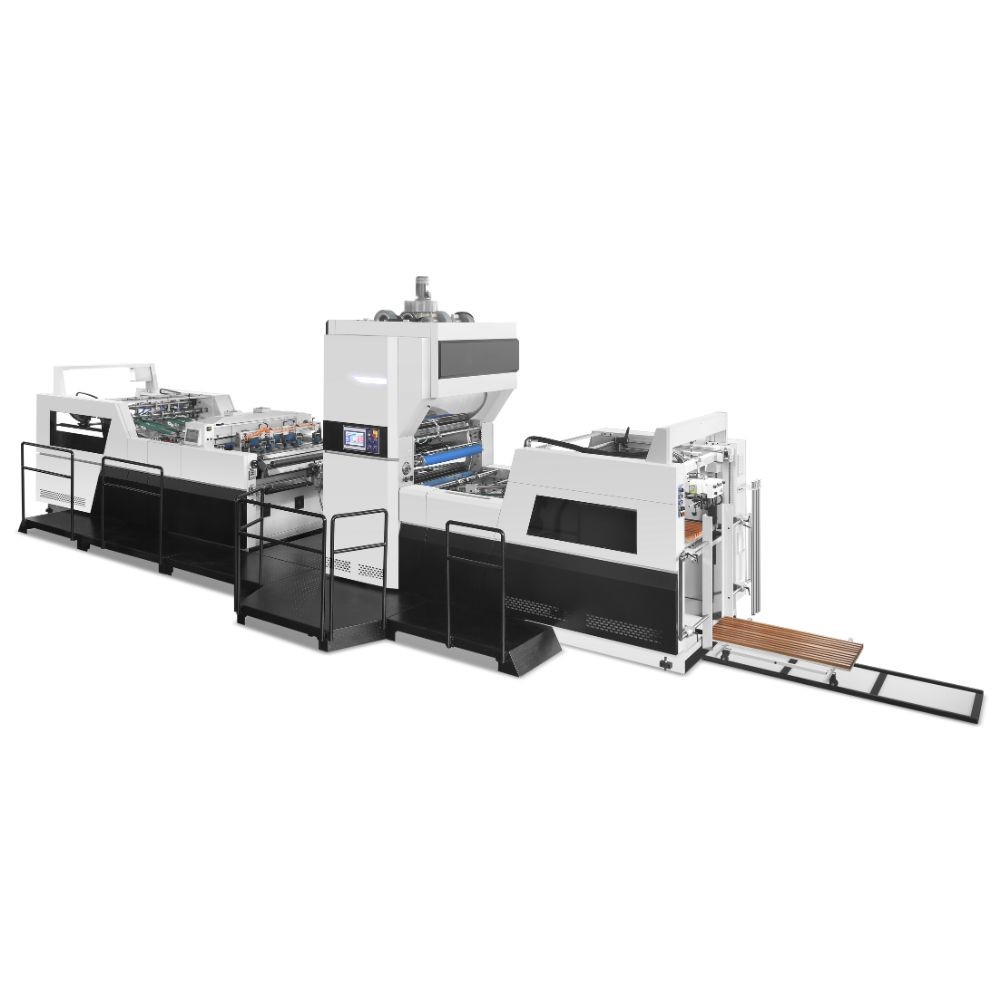

NFM-H1080 Intelligence Automatic Laminating Machine
Intelligence Automatic Water Base Gluing Dry Film Laminating Machine NFM-H1080 1
Features

NFM-H1080 fully automatic vertical high-precision and multi-duty laminator as a professional equipment used for plastic film laminating on the surface of paper printed matter.
* Water-based gluing (waterborne polyurethane adhesive) dry laminating.
(water-based glue,oil-based glue,non-glue film)

* Thermal laminating.(Pre-coated /thermal film)
* Film:OPP,BOPP,PET,PVC,METALIC,NYLON,etc.

1. Window laminating unit
2. Heating roller powder remover unit
3. UV dryer unit
4. Double heating roller unit
5. Double side laminator unit (waterbase gluing or thermal)
6. Embossing unit (single roller or multi roller)
7. Corona treatment unit
8. Water cooling device
9. Other detail functions customized accepted
Technical Parameters
NFM-H1080 Intelligence Automatic Laminating Machine
Model
NFM-H1080
Max Paper Width (X)
1080mm/1380mm/1580mm
Max Paper Length (Y)
880mm/1250mm/1450mm/1650mm
Min Paper Size
360×320mm
Speed
10-110m/min
Paper Thickness (Round Knife)
80-500gsm (Above 100gsm easy to adjust,
E type corrugated paper)
Paper Thickness (Hot Knife)
≥115gms
Overlap Precision
≤±1.5mm
Water Base Film Thickness (common)
10/12/15
Common Glue Thickness
4-10g/m2
Pre-Gluing Film Thickness (common)
15~35μ
Non-Stop Feeding Height
1300mm
Collector Paper Height (Incl. Pallet)
1300mm
Power
380V-50Hz-3P
Working Pressure
0.6Mpa
Cable Thickness
25mm2
Weight
8500kgs
Dimension (Layout)
8500*2600*3300mm
Loading
40HQ



Intelligence Automatic Water Base Gluing Dry Film Laminating Machine NFM-H1080 2
Intelligence Automatic Water Base Gluing Dry Film Laminating Machine NFM-H1080 3
Intelligence Automatic Water Base Gluing Dry Film Laminating Machine NFM-H1080 4
Intelligence Automatic Water Base Gluing Dry Film Laminating Machine NFM-H1080 5
Intelligence Automatic Water Base Gluing Dry Film Laminating Machine NFM-H1080 6
Intelligence Automatic Water Base Gluing Dry Film Laminating Machine NFM-H1080 7
Intelligence Automatic Water Base Gluing Dry Film Laminating Machine NFM-H1080 8
Intelligence Automatic Water Base Gluing Dry Film Laminating Machine NFM-H1080 9
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
