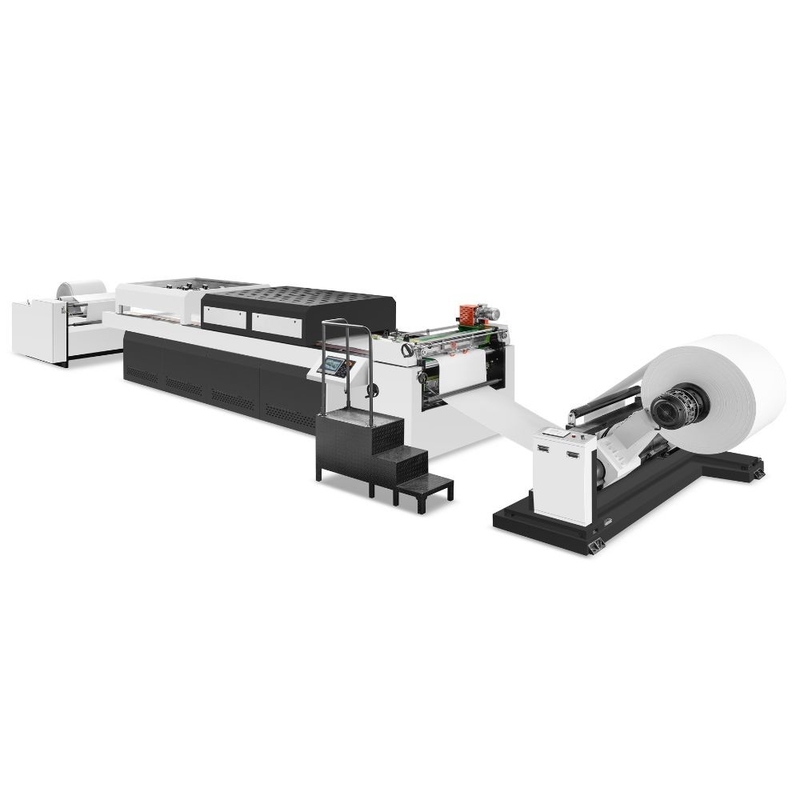

Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed

Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed
Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed
Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SG-AR1200
Minimum Order Quantity: 1 Set
Price: US 37200 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Type: Coating Machine Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V
Packaging Type: Coating Dimension: 12430*3000*2080mm
Weight: 6470 KG Model: SG-AR1200
Max Paper Width: 1150mm Max Rewinding Diameter: 1500mm
Max Unwinding Diameter: 1500mm Maximum Rewind Load Capacity: 1200kg
Maximum Unwind Load Capacity: 1200kg Paper Thickness: 80-600gsm
Working Speed: 10-100m/min Oil Type: Water Based Oil, UV Oil, Blister Oil, Plastic Oil
Main Motor Power: 1.5KW
Highlight:

Oil Blister UV Varnish Coating Machine

,

Roll To Roll UV Varnish Machine

,

High Speed Automatic UV Coating Machine

Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed 0
SG-AR1200 Roll to Roll Oil Varnishing Machine
Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed 1
Features
SG-AR series oil varnishing machine which is suitable for the varnishing and polishing process of various paper in roll,machine for water-based oil,UV oil and blister varnish oil coating,after processing the print surface has the damp-proof and water-proof effects. Machine adopts the reversing mechanism to make the oil layer smooth and fine,save varnish oil and meets the high quality requirements.
*food antibacterial oil,water base oil,UV oil,blister varnish oil,plastic oil,soft touch oil ect.
Technical Parameters
SG-AR1200 Roll to Roll Oil Varnishing Machine
Model
SG-AR1200
Max Paper Width
1150mm
Max Rewinding Diameter
1500mm
Max Unwinding Diameter
1500mm
Maximum Rewind Load Capacity
1200kg
Maximum Unwind Load Capacity
1200kg
Paper Thickness
80-600gsm
Working Speed
10-100m/min
According to printed product thickness, the color and the size of the color block, the running speed of the machine varies.
Voltage
380V 50HZ 3P
Main Motor Power
1.5KW
Standby Power
IR:35kw IR+UV:65kw
Infrared Lamp Power
1.2kw*18pcs
Ultraviolet Lamp Power
8kw*3pcs
Standard Weight
6470KGS
Standard Dimension
12430*3000*2080mm
Oil Type
Water Based Oil,UV Oil,Blister Oil,Plastic Oil



Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed 2
Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed 3
Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed 4
Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed 5
Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed 6
Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed 7
Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed 8
Automatic Roll To Roll Water Based UV Oil Blister Varnishing Coating Machine High Speed 9
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
