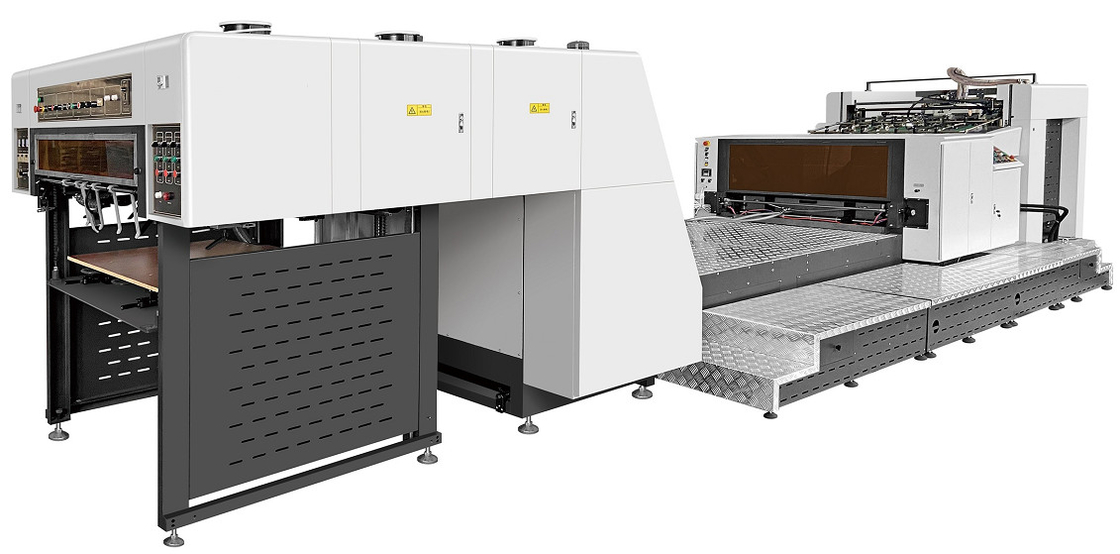

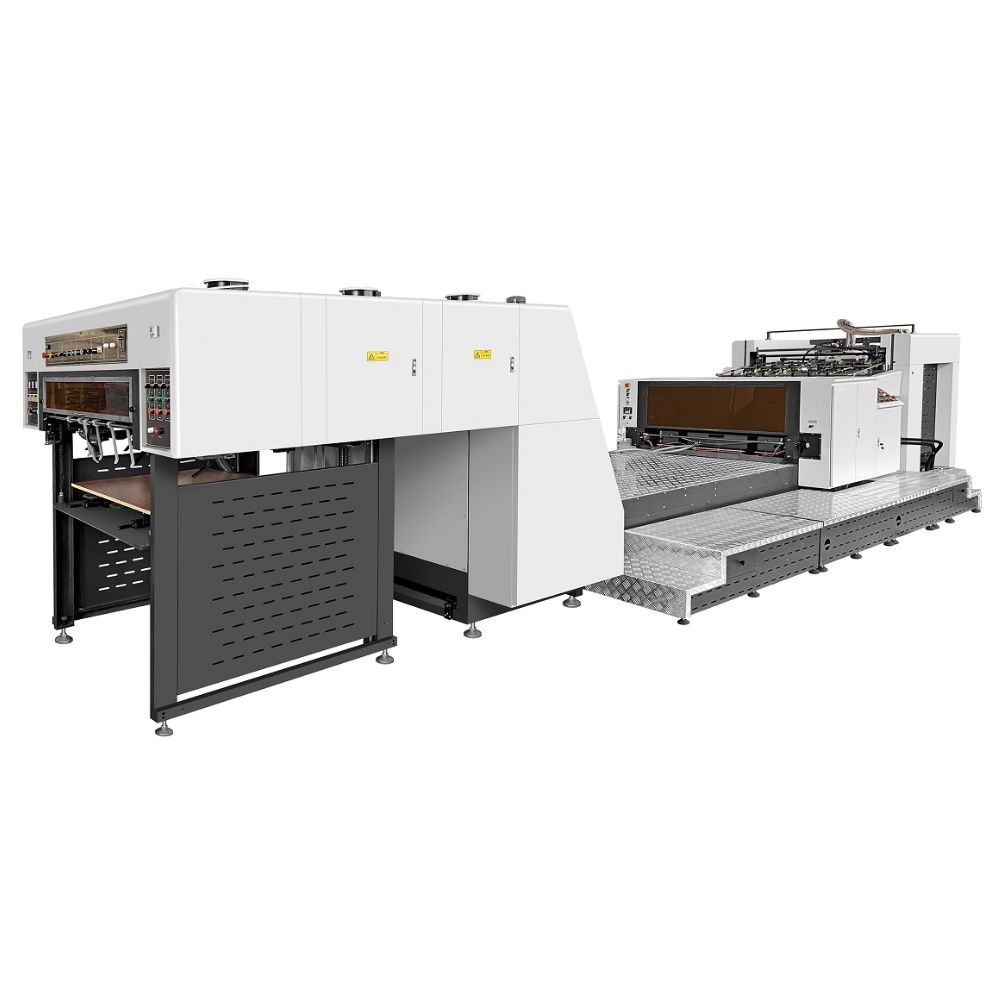

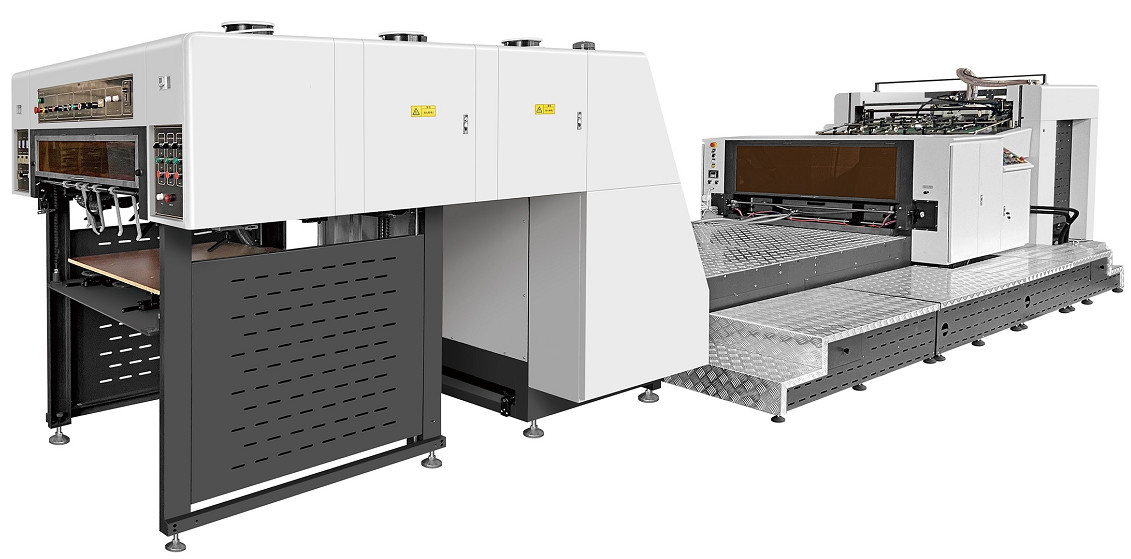

SGJ-UV1100 Automatic Spot Varnishing UV UI Water Based Coating Machine

SGJ-UV1100 Automatic Spot Varnishing UV UI Water Based Coating Machine
SGJ-UV1100 Automatic Spot Varnishing UV UI Water Based Coating Machine
SGJ-UV1100 Automatic Spot Varnishing UV UI Water Based Coating Machine SGJ-UV1100 Automatic Spot Varnishing UV UI Water Based Coating Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SGJ-UV1100
Minimum Order Quantity: 1 Set
Price: US 68000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Supply Ability: 30 Set/Sets per Month
Contact Now
Applicable Industries: Manufacturing Plant Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Weight: 8.4 T Warranty: 1 Year
Type: Coating Machine Condition: New
Application: Commodity Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V
Dimension: 7602 * 2783 * 2150 Mm Max. Sheet Size: 800 * 1100 Mm
Max. Coating Size: 760 * 1060 Mm Min. Sheet Size: 307 * 440 Mm
Max. Working Speed: 5000 Sph Total Electric Consumption: 51 Kw
No. X UV Power: 3 * 9.75 Kw Paper Weight: 80-600 Gsm
Highlight:

UV Water Based Coating Machine

,

UI Water Based Coating Machine

,

Automatic Spot Varnishing UV Coating Machine

SGJ-UV1100 Automatic Spot Varnishing UV UI Water Based Coating Machine 0
SGJ-UV1100 Automatic Spot UV Coating Machine
SGJ-UV1100 Automatic Spot Varnishing UV UI Water Based Coating Machine 1
Features
This machine is used for both flood and spot varnishing on printing works with UV coating and water-based coating (optional),with blanket or flexo plate.It is suitable for spot or full coating on words and graphics in books,advertisement sheets,color paperboard to enhance its dimensional quality.Many safeguards and human-based operating procedures ensure user safety and convenience.Imported elements for main bearings and electrical components are adopted in the machine.
Technical Parameters
SGJ-UV1100 Automatic Spot UV Coating Machine
Model
SGJ-UV1100
Max. Sheet Size
800 x 1100 mm
Max. Coating Size
760 x 1060 mm
Min. Sheet Size
307 x 440 mm
Max. Working Speed
5000 sph
Total Electric Consumption
51 kw
No. x UV Power
3 x 9.75 kw
No. x IR Power(Optional)
15 x 1.5 kw
Paper Weight
80-600 g/m2
Weight
8.4 t
Overall Dimensions
7602 × 2783 × 2150 mm
Note:The speed is based on the paper size and paper weight
Configuration
SGJ-UV1100 Automatic Spot Varnishing UV UI Water Based Coating Machine 2

1.Feeding Section

High-speed feeder free from maintenance,lubrication,controlled by simple cam,easy concentrated adjustment is adopted as well as paper deflexion system monitored by bonding of mechanical action and imported needle sensors for front and side paper stoppers to ensure sheets well-positioning,correct register.When sheets are found deflexion,pneumatic paper-pressing mechanism will be in action and feeding stops to protect plate roller and avoid waste.
● Pre-stack table for machine non-stop is optional.

2.Varnishing Section

Grippers transportation system.Impression roller and plate roller is released and pressed pneumatically.UV varnish supply system composed of reverse running rollers makes coating more smooth.UV tank is of automatic temperature control by water.
● Chamber doctor blade system with ceramic anilox is optional.

3.IR Drying Section

This is used for water-based varnish(optional).

4.UV Curing Section

This section is composed of high-volt lamps,reflectors,electrical control,cooling,air-exhausting systems.Automatic temperature control system is equipped to avoid sheets deformation.Full-capacity and half-capacity are designed for lamps,that is to say,all lamps work for normal running,if lack of sheets,all the lamps will switch into half capacity to save
power.

5.Delivery Section

Turnover safety door is designed greatly convenient for operator.Speed-regulating suction roller mechanism assistant for delivery,cooling paper-pressing fans ensure big-size sheet delivered smoothly.
● Air cooling system is optional to keep coating quality.

SGJ-UV1100 Automatic Spot Varnishing UV UI Water Based Coating Machine 3
SGJ-UV1100 Automatic Spot Varnishing UV UI Water Based Coating Machine 4
SGJ-UV1100 Automatic Spot Varnishing UV UI Water Based Coating Machine 5
SGJ-UV1100 Automatic Spot Varnishing UV UI Water Based Coating Machine 6
SGJ-UV1100 Automatic Spot Varnishing UV UI Water Based Coating Machine 7
SGJ-UV1100 Automatic Spot Varnishing UV UI Water Based Coating Machine 8
SGJ-UV1100 Automatic Spot Varnishing UV UI Water Based Coating Machine 9
SGJ-UV1100 Automatic Spot Varnishing UV UI Water Based Coating Machine 10
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
