380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll

380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll
380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll 380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll 380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll 380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: NFM-ER1080
Minimum Order Quantity: 1 Set
Price: US 50700 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Type: Laminating Machine Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V
Dimension: 7500*3000*3170mm Weight: 7500 KG
Min Paper Width: 300mm Max Rewinding Diameter: 1500mm
Max Unwinding Diameter: 1500mm Maximum Rewind Load Capacity: 1200kg
Maximum Unwind Load Capacity: 1200kg Paper Thickness: 80-600gsm
Speed: 10-110m/min Film Thickness: 10/12/15
Common Glue Thickness: 4-10gsm Roll Working Pressure: 15Mpa
High Light:

Water Based Thermal Film Laminating Machine

,

Roll To Roll Film Laminating Machine

,

380V Roll To Roll Laminating Machine

Products Description

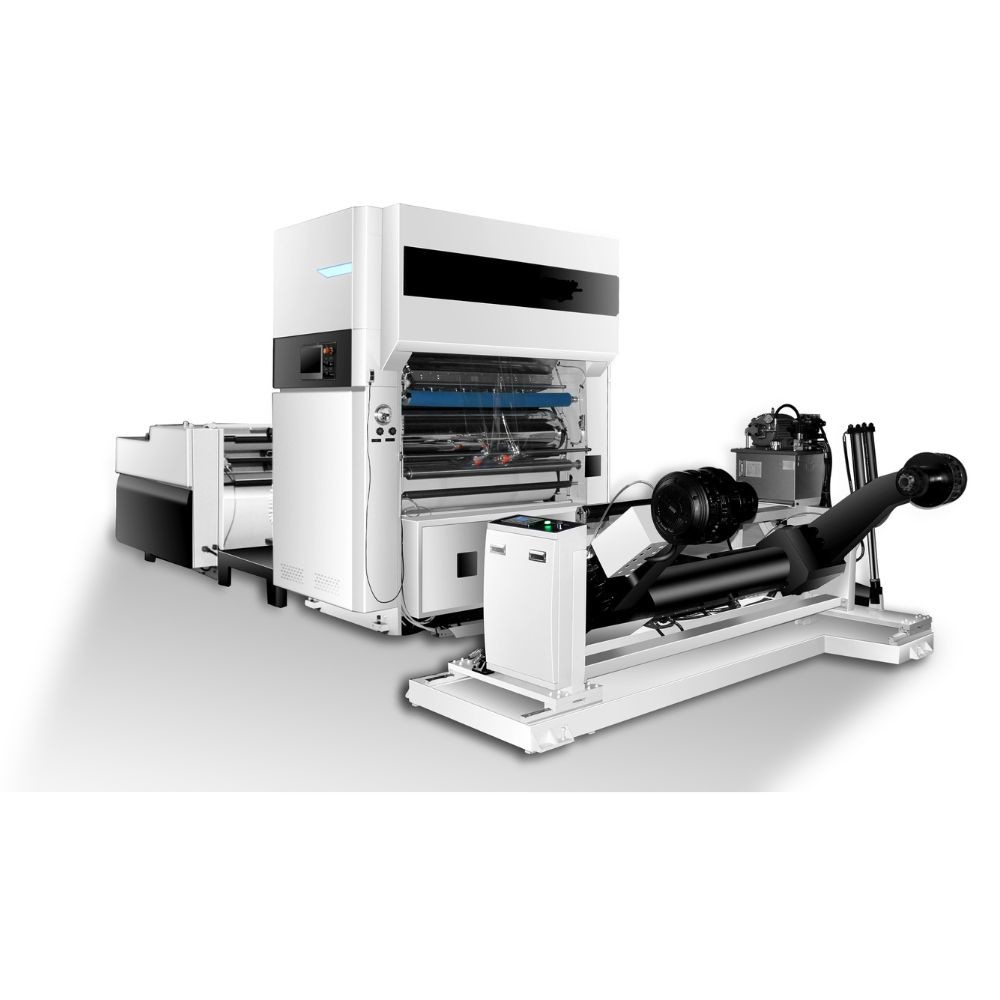

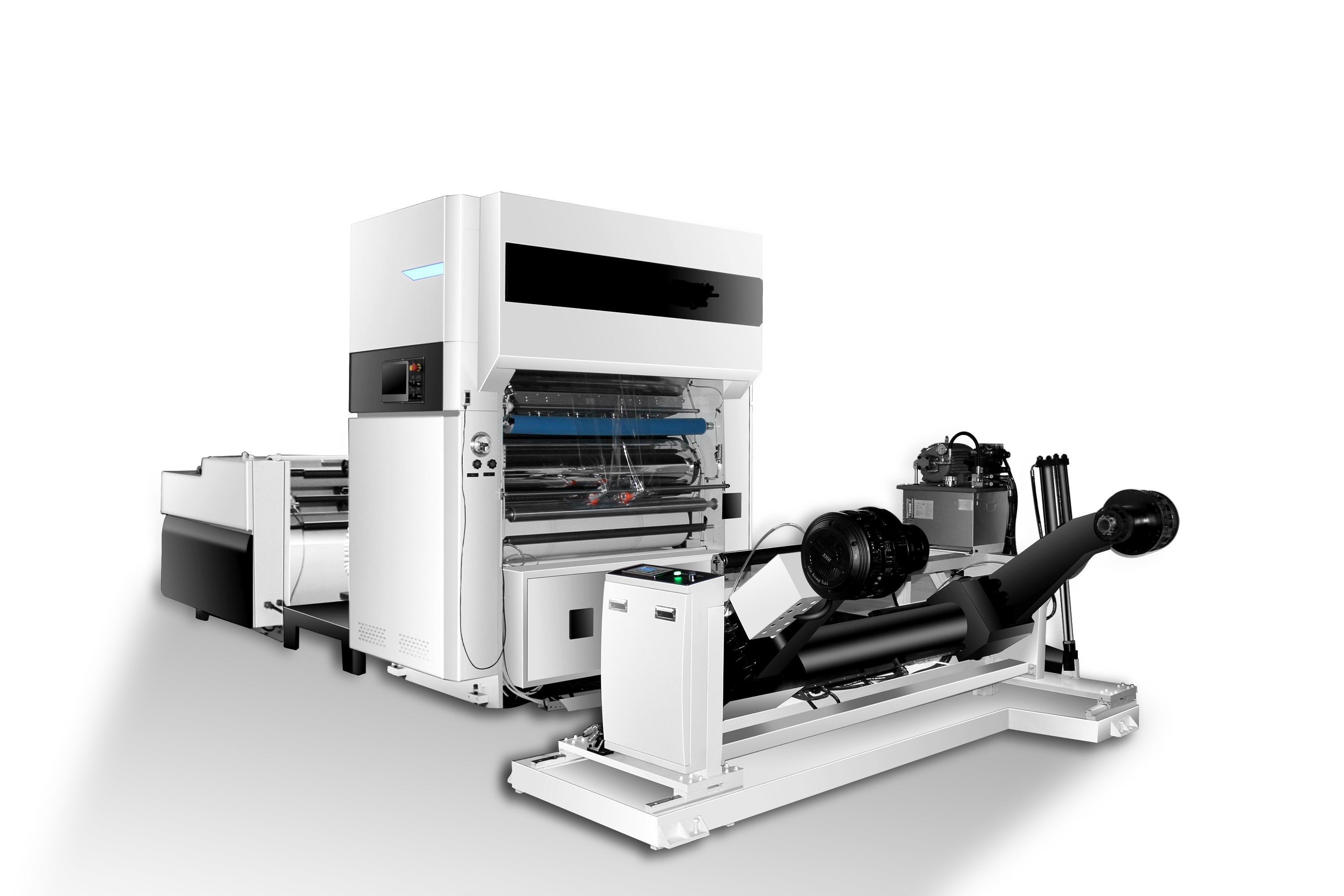

NFM-ER1080 Roll to Roll Laminating Machine
380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll 0

Features

NFM-ER fully automatic roll to roll high-precision and multi-duty lamination as a professional equipment used for plastic film laminating on the surface of paper printer matter.
* Water-based gluing(waterborne polyurethane adhesive)dry laminating.(water-based glue,oil-based glue,non-glue film)
* Thermal laminating(Pre-coated/thermal film)
* Film:OPP,BOPP,PET,PVC,METAL film,PP,etc.
Technical Parameters
NFM-ER Roll to Roll Laminating Machine
Model
NFM-ER800
NFM-ER1080
NFM-ER1380
Max Paper Width
800mm
1080mm
1380mm
Min Paper Width
300mm
300mm
300mm
Max Rewinding Diameter
1500mm
1500mm
1500mm
Max Unwinding Diameter
1500mm
1500mm
1500mm
Maximum Rewind
Load Capacity
1200kg
1200kg
1200kg
Maximum Unwind
Load Capacity
1200kg
1200kg
1200kg
Paper Thickness
80-600gsm
80-600gsm
80-600gsm
Speed
10-110m/min
10-110m/min
10-110m/min
Film Thickness
(Common Micrometer)
10/12/15
10/12/15
10/12/15
Common Glue Thickness
4-10gsm
4-10gsm
4-10gsm
Pre-Gluing Film Thickness-g/m2
1005,1006,1206
(1508 and 1208 for deep embossing paper)
1005,1006,1206
(1508 and 1208 for deep embossing paper)
1005,1006,1206
(1508 and 1208 for deep embossing paper)
Main Motor Power
5kw
5kw
5kw
Roll Working Pressure
15Mpa
15Mpa
15Mpa
Cable Thickness
25mm2
25mm2
25mm2
Weight
7000kgs
7500kgs
8500kgs
Dimension(Layout)
7500*2800*3170mm
7500*3000*3170mm
7500*3000*3170mm
Loading
20 foot
20 foot
40 foot
Customer
380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll 1
Company Profile
380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll 2
380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll 3
380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll 4
Why Choose Us
380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll 5
Product Packaging
380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll 6
380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll 7
FAQ
Q1: Are you a manufacturer or a trading company?
A: Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2. What is the machine warranty?
A: One year.After the warranty,we still provide technical support to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 10-20 days.
Q4. What is the delivery time?
A: 15-30days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes,just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7. How about the machine installation and training?
A: 1)We provide training in our factory for free
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9. How can you assure the machines’ quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty,we will give spare parts for free if machine has any problem.
Q10. Do you inspect machines or test running before packing?
A: Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11. What’s the payment term?
A: T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q13. How many years are you in printing field?
A: The Shanghai company since in 2008,the factory is more than 25 years.
Q14. How many clients do you have?
A: We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
