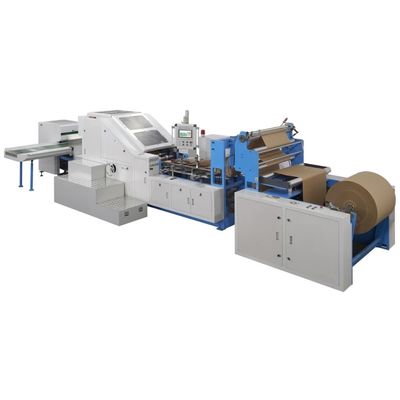

Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly

Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly
Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly
Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-350 PRY-450
Minimum Order Quantity: 1 Set
Price: US 52000-56000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Machine Type: Bag Forming Machine Bag Type: Shopping Bag
Material: Paper Computerized: Yes
Model Number: PRY-350 PRY-450 Voltage: 380V
Dimension: 10000*3800*2200mm Weight: 9000 KG
Max Speed: 220pcs/min Cutting Length: 270-530mm
Paper Bag Width: 210-430mm Bottom Width: 90-180mm
Paper Bag Thickness: 80-150g/㎡ Mechanical Speed: 30-220pcs/min
Paper Bag Speed: 30-150pcs/min Paper Roll Width: 660-1290mm
Paper Diameter: 1300mm Inner Diameter Of Paper: 76mm
High Light:

Paper Bag Making Machine 220pcs/min

,

3phase Paper Bag Forming Machine

,

Semi Automatic Snack Bag Making Machine

Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly 0
PRY-450 Paper Bag Making Machine
Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly 1
Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly 2
Features
This machine is used for roll primary color paper or printing roll paper such as kraft paper. Paper rolls such as food paper are completed by this machine at one time.Automatic center gluing,raw material into tube,cut to length,bottom indentation,bottom folding.Glue on the bottom and shape the bottom of the bag.Finished bag finishing is completed at one time. This machine is more convenient to operate,more efficient and more stable. It is an environmentally friendly paper bag machine equipment that produces various paper bags, snack food bags,bread bags,dried fruit bags,etc.
1.Using Willon touch screen man-machine interface,the operation function is clear at a glance,easy to control
2.Adopt the Japanese original Mitsubishi motion controller,through the integration with the optical fiber, operation stability
3.Japanese Mitsubishi servo motor with German Schick color standard eye correction, accurate tracking printing bag size
4.The raw material loading and unloading adopts hydraulic dynamic lifting structure,and the unwinding adopts automatic constant tension control
5.The raw material correction adopts servo motor to reduce the adjustment time of paper roll alignment
Flow Chart
Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly 3
Technical Parameters
PRY-350/450 Paper Bag Making Machine
Model
PRY-350
 PRY-450
Cutting Length
270-530mm
 270-530mm
Paper Bag Width
120-330mm
 210-430mm
Bottom Width
60-180mm
 90-180mm
Paper Bag Thickness
60-150g/㎡
 80-150g/㎡
Mechanical Speed
30-220pcs/min
 30-220pcs/min
Paper Bag Speed
30-180pcs/min
 30-150pcs/min
Paper Roll Width
380-1050mm
 660-1290mm
Paper Diameter
1300mm
 1300mm
Inner Diameter of Paper
76mm
 76mm
Total Power
380V 3phase 4line 15kw
 380V 3phase 4line 15kw
The Whole Machine Pressure
0.5MPa-0.8MPa
 0.5MPa-0.8MPa
Total Weight
8500kg
 9000kg
Overall Size
10000*3700*2200mm
 10000*3800*2200mm
Machine Configuration

Name
QTY
Control System
CPU Program Controller
1
Human-Computer Touch Screen Interface
1
Photoelectric Eye for Printed-Bag Tracking
2
Low Voltage Electrical Apparatus
4
Photoelectric Sensor
5
Pneumatic Component
8
Auto Lubricating
1
Main Power Filter
1
Motor Frequency Converter
2
Servo Motor
2
Servo Power
2
Host Server
1
Traction Servo
1
Bagging Three-Phase Asynchronous Motor
1
Deviation Correction
and Tension Control System
EPC Controller
1
Servo Motor for EPC
1
Ultrasonic Sensor
1
Magnetic Powder Brake
1
Automatic Tension System of Magnetic Powder
1
Automatic Hydraulic Feeding Motor
1
Feeding Hydraulic Cylinder
2
Transmission
Synchronous Belt
2
Synchronous Wheel
4
Bearing
213
Guide Roller
9
Gear
23
Glue Position
Bottom Glue (Bottom-Sealing White Latex)
2
Motor for Bottom Glue Evening
1
Pneumatic Auto Glue Filling Valve
1
Side Glue
1
Glue Glue Position Detection
1
Spraying Gun for Center Sealing (Dense Adjust Glue Gun)
1
High-Pressure Glue Barrel for White Latex
1
Sample Picture
Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly 4
Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly 5
Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly 6
Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly 7
Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly 8
Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly 9
Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly 10
Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly 11
Semi Automatic Snack Food Bread Dried Fruit Paper Bag Making Machine Environmentally Friendly 12
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
