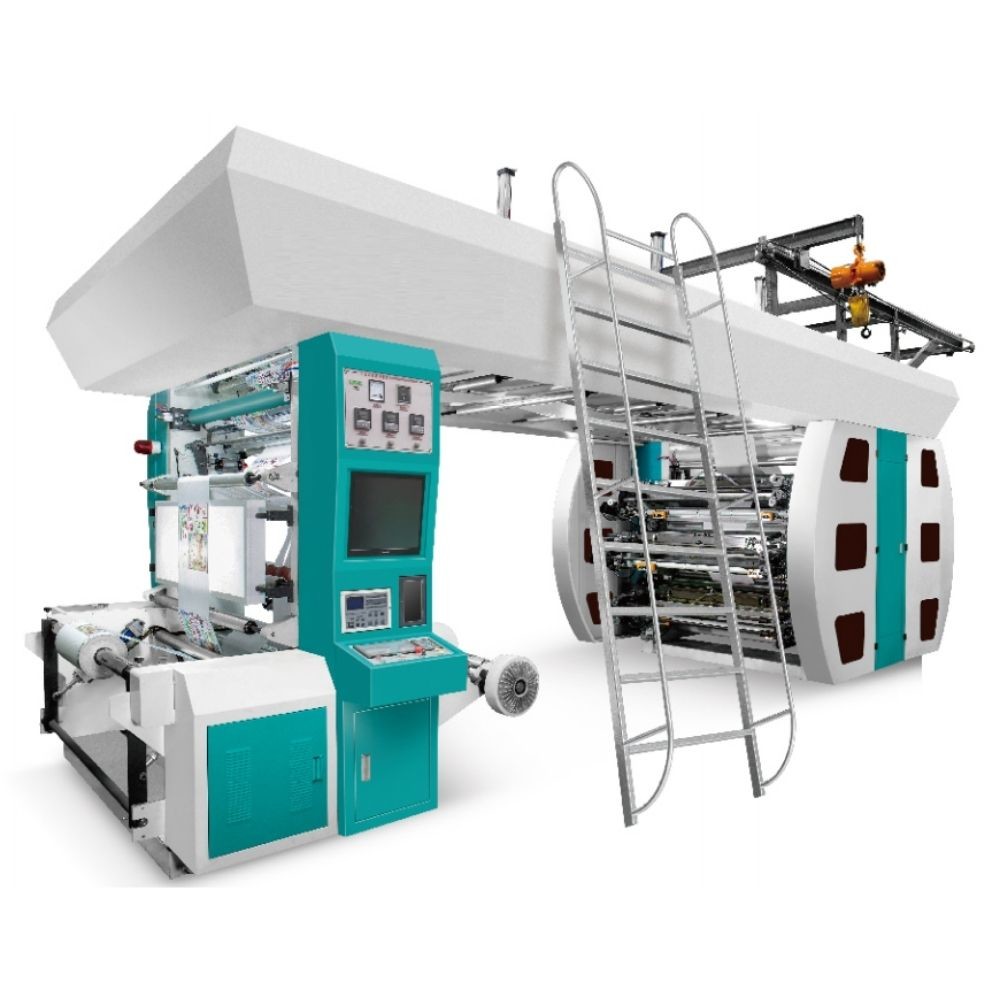

YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min

YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: YTC-61200
Minimum Order Quantity: 1 Set
Price: US 135,000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Year
Contact Now
Type: Flexographic Printer Plate Type: Flatbed Printer
Automatic Grade: Automatic Color & Page: 6 Colors
Voltage: 220V Weight: 5000 KG
Print Dimension: 1160mm Print Speed: 150m/min
Key Selling Points: UV Drying Structure: Stack
Material Feeding Width: 1200mm Max Printing Width: 1160mm
Colors: 6 Colors Thickness Of Plate: 1.7mm 2.28mm, 2.84mm, Customized Is Available
Maximum Machine Speed: 180m/min Max Printing Speed: 120-150m/min According To Material
Register Precision: ±0.15mm
High Light:

YTC-61200 Flexo Printing Machine

,

CI Type Flexo Printing Machine

,

180m/min Automatic Flexographic Printer

Products Description
YTC-61200 Flexo Printing Machine
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 0

Features

* Central impression type printing machine with better color registration.Due to the big drum,the printed material is supported by the big drum,and greatly improving color registration,especially with extensible materials.
* All colors printing station drived by the central drum,Less transmission errors because of less gear transmission,increase the registration precision.
* Adopting high-quality motor,high-quality inverter,save the electricity,reduce the run fluctuation.
* When the machine is stopped working,printing rolls still keep moving;when rise the printing roller,ink motor running automatically;when fallen the printing roller,ink motor stop running automatically.
* The machine is equipped with blower and heater;and the heater employed central temperature control system,automatic temperature controller,and separated heat source.
* The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
* Roller adopts special steel processing,and through special treatment,greatly reduce the beating range.
* Printing roller uses static balance and dynamic balance processing,hard anode oxidation treatment,small resistance,beating small,achieves finally perfect printing effect.
* Accurate printing effect achieved by special gear transmission device.
* The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.

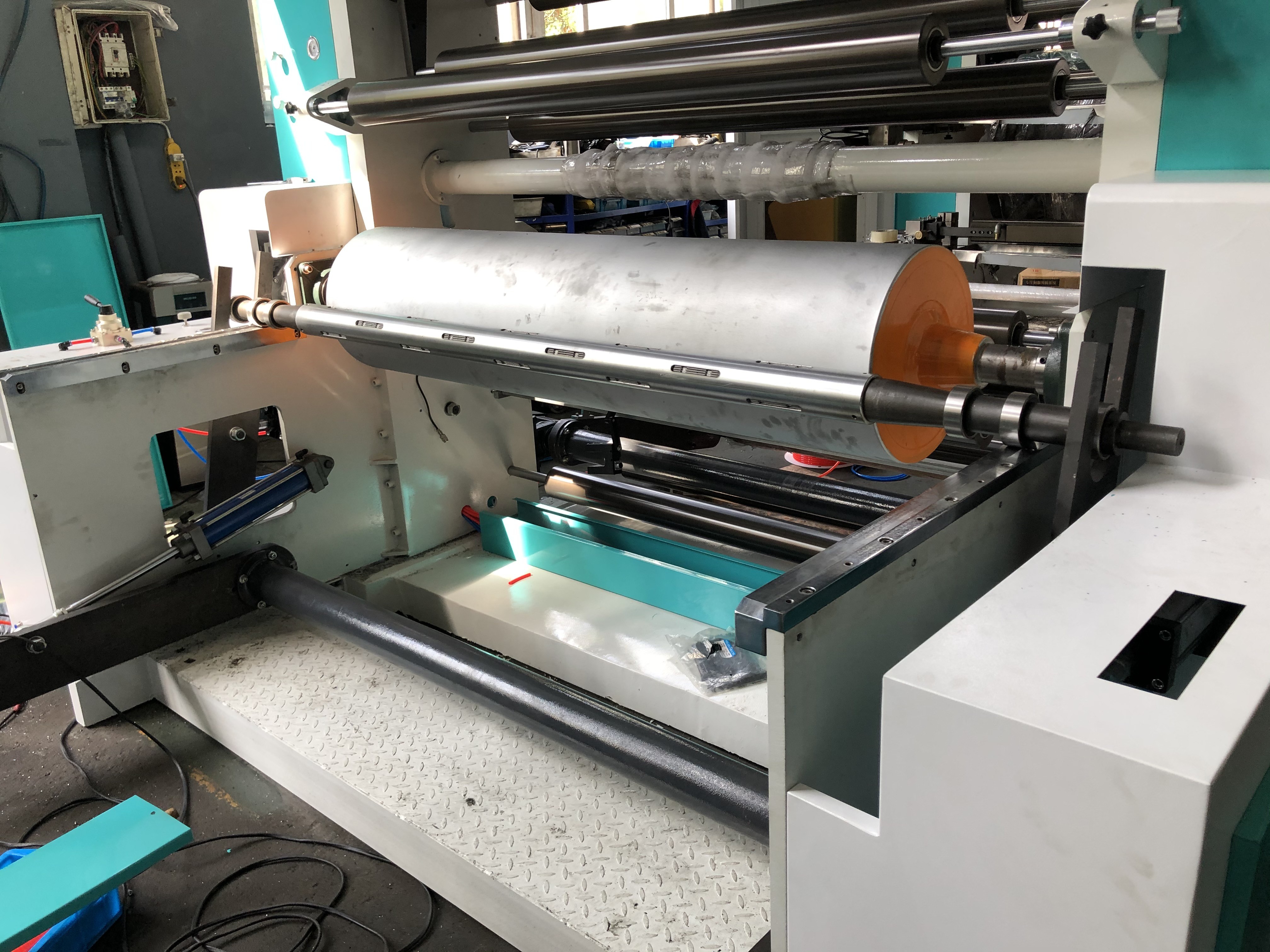

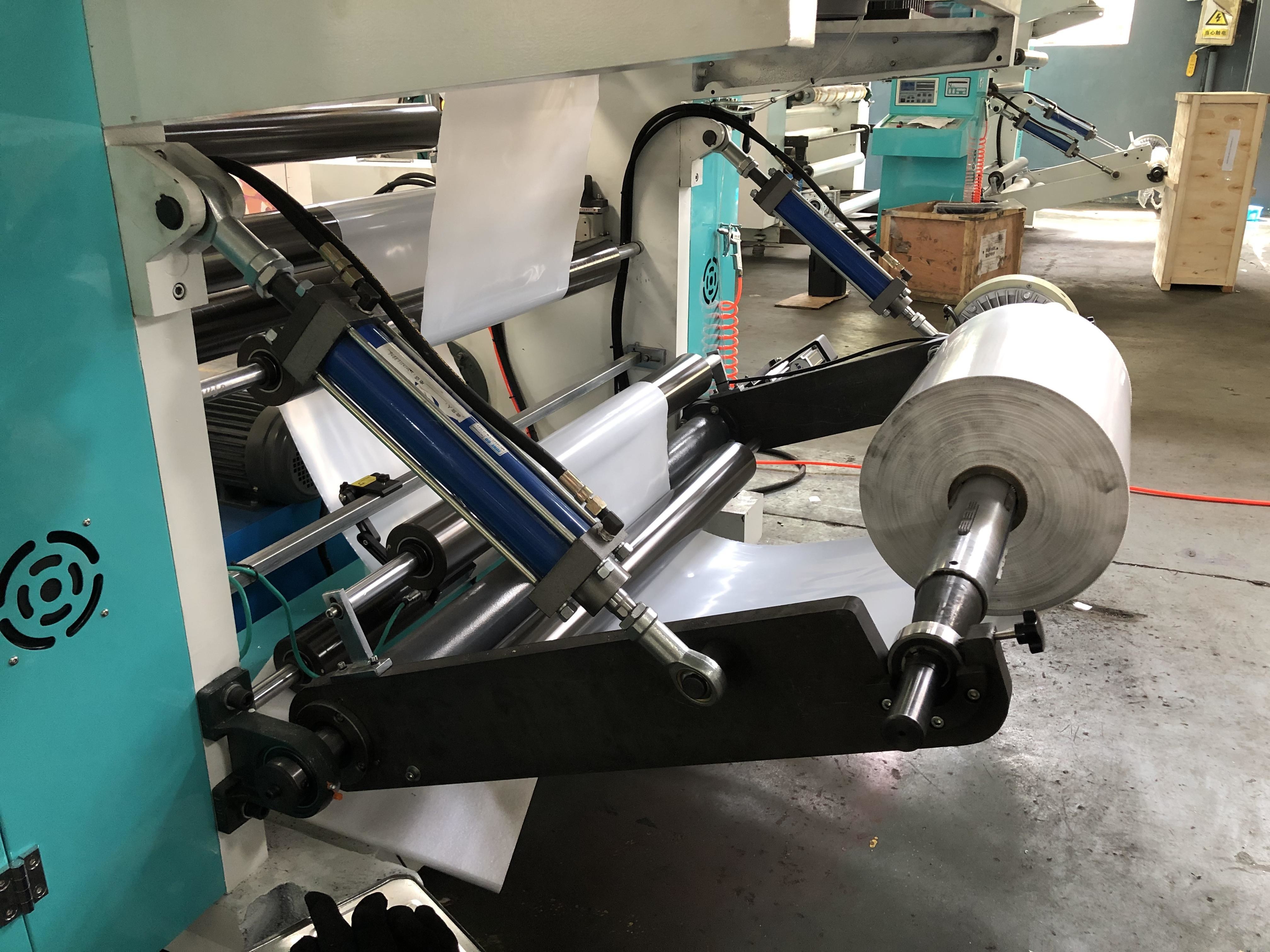

Feeding material part:
1.Single unwind system,pneumatic loader for unwind system
2.Automatic stop machine when break the material;
When machine stop,keep tension and avoid the material loose or line deflection.
3.Air shaft
4.EPC(edge position control):With manually/automatically/central return function,can adjust the rewind move left and right.
5.Automatic tension control system with magnetic brake(10KG).
6.Roller core diameter:76mm.
7.Discharge maximum diameter:1000mm.

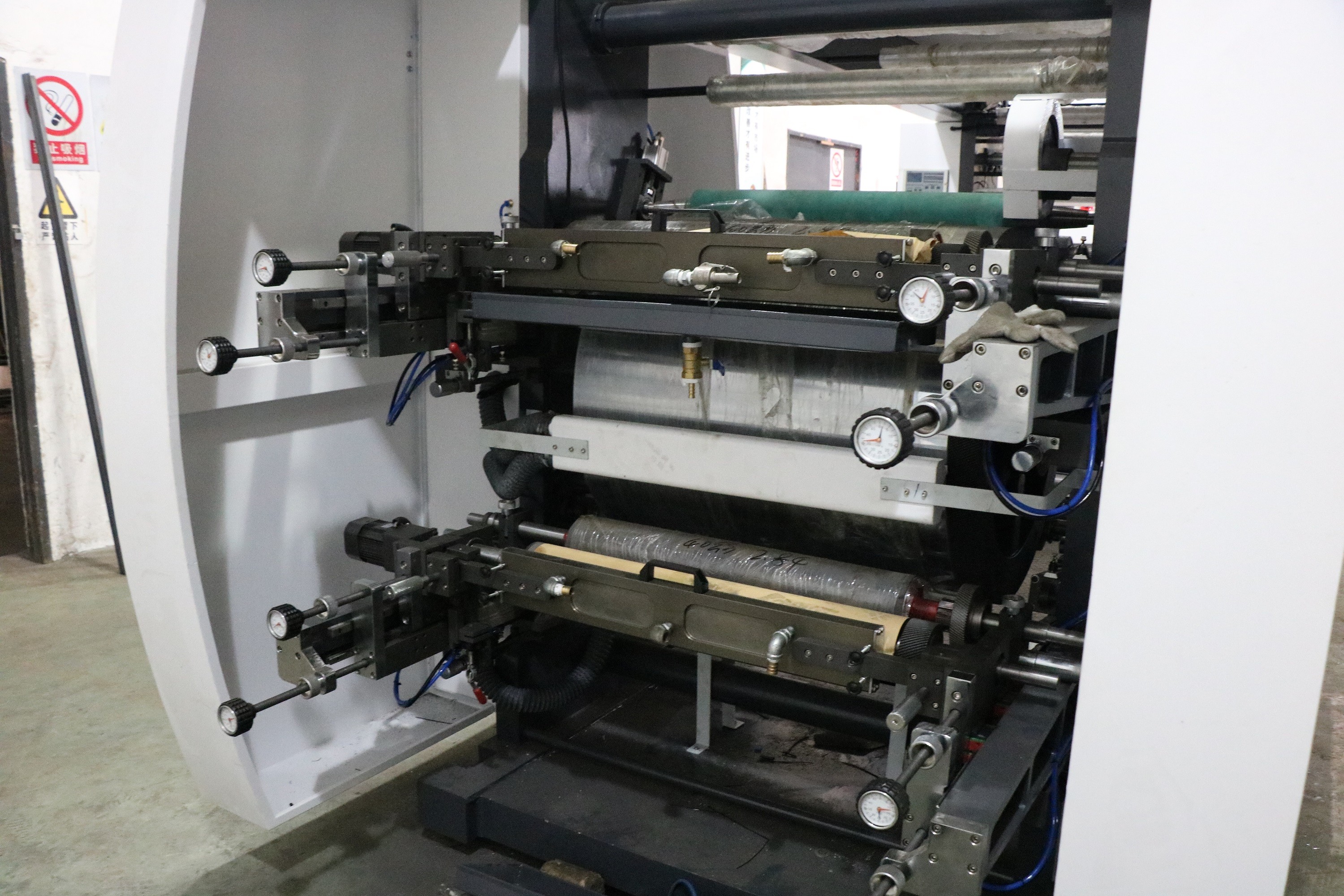

Printing sections:
1.printing consists of:central drum,plate roller,ceramic anilox roller,chamber doctor blade.
2.plate roller circumference:280-1000mm.
3.print material:resin plate or rubber plate.
4.Transmission:central drum with big gear drive the printing station.
5.adjustment method:Motorized longitudinal registration and Motorized Traversal Registration.(Automatic printing after adjust by motor,when start machine,no need register color again,the printing pressure and register all keep the same.).
6.Printing roller lifting system:Pneumatic cylinder control roll backward and forward,when the machine stop the printing cylinder will backward,when the machine running will forward by pneumatic cylinder automatic.
Electrical parts:
1.Main Motor:7.5kw.
2.heating and dry power 40 kw.
3.Pull motor 1.5kw.
4.Rewind motor:3.7KW.
5.Ink motor and the color register motor 1.5 KW.
6.The machine total consumption about 80 kw.
7.Speed using frequency converter control.
Rewinding Part:
1.Single rewind system,pneumatic loader for unwind system.
2.Automatic tension control system with magnetic brake(10KG).
3.Air shaft.
4.Roller core diameter:76mm.
5.Discharge maximum diameter:1000mm
Drying system:
1.Use hot air drying, intelligent constant temp control.
2.All the hot air between the printing units is supplied by one heating units.
3.Drying units are installed after the printing units,and air volume can be adjusted by independent damper/panel.
4.The printing unit power it is about 10KW.
5.The drying system after the printing it is about 30kw.
6.Top dry system consistent 3 oven each oven 10kw,adjust by independent.
Central drum:
1.The central drum adopt hollow with two layers structure,made from superior alloy.
2.steel and precise dynamic balance treatment and surface electroplated treatment to make the frame surface without etching.
3.The central impressing drum adopts high precise imported double row roller.
4.bearing for supporting,imported together with the central drum.
5.The central impressing drum has constant temperature system of 32℃.With water cooling system(optional).
6.The central drum is driven by a big gear.
7.A high precision encoder is installed at the axial head of the central drum which speed of plate cylinder and anilox roller is synchronous with the central drum.
Chamber doctor blade and ink pump:
1.Equipped with doctor chamber for fast change.
2.It is made from Aluminum alloy and closed type to reduce solvent volatilization.
3.and keep the ink in good viscosity and clean.
4.The blade and chamber sealing block are easy to change and clean.
5.There is forward and reverse directions doctor inside the chamber.The reverse
6.doctor is for sealing the chamber and the forward doctor is for scratching the ink.
7.The doctor blade is with even strength,easy to adjust.
8.ink supply adopt double diaphragm pump.Easy to suck the ink.
Frame and web running:
1.The frame is made of alloy cast iron with high strength and lower stress.It is casted by resin sand process and treated by vibration aging.
2.Integral type guide roller structure.
3.Assembled modularization in design.
4.Frame thickness 100mm.
5.Guide roller Φ100mm(Surface anodic oxidation treatment).
Technical Parameters
YTC-61200 Flexo Printing Machine
Model
YTC-61200
Material feeding width
1200mm
Max Printing Width
1160mm
Colors
6 colors
Thickness of plate
1.7mm 2.28mm, 2.84mm,
Customized is available
Printing length
Standard is 400mm,
Customized is available from 280-1000mm
Maximum machine speed
180m/min
Max Printing speed
120-150m/min according to material
Register precision
±0.15mm
Structure type
Central impression(central drum)
Gear drive
Configuration
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 1
Plate roller(6 pcs)
*standard 400mm for machine,making
*plate range 280-1000mm.
*Can be customized.
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 2
Auto tension control & magnetic power (2 set )
*Control un&rewind parts balance material both side.
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 3
Air shaft (2 pcs)
*tight to material,flat material,better printing
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 4
Ultrasonic web guide (1 set)
*Swift tracking print photo
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 5
Ink pump(6 pcs)
*Suck the ink automatically.
*Adopt the automatic circle system.
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 6
Ceramic Anilox Roller(6 pcs)
*Transfer ink evenly,improve the printing effect.
*300-1000 lines/inch
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 7
Auto lubricating system
*Timing oil the big gear
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 8
Heat dryer(each color with 1 set heater, one long heater channel on the top)
*3 pcs motor for the top (dry heater +fan ) Total 30KW
*1 pcs motor for printing set 10kw
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 9
Auto hydraulic loading&unloading for unwinding
*It is easy to transport and loading material.
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 10
PLC Control
*Control panel
*Video inspection
*Check the print effect
*Together insert to machin
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 11
Chamber doctor Blade
*Not spill the ink (quick change the blade).
*Equip with ink pump, even the ink.
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 12
Motor adjustment for plate cylinder
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 13
Crane upon printing unit
*It’s easy to lift and down printing plate cylinder.
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 14
Big roller friction rewinding
*Rewinding the material more tight and keep in line. Special for paper.
Application
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 15
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 16
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 17
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 18
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 19
Customer
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 20
Company Profile
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 21
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 22
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 23
Why Choose Us
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 24
Product packaging
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 25
YTC-61200 CI Type Automatic Flexo Printing Machine Six Colors 180m/Min 26
FAQ
Q1: Are you a manufacturer or a trading company?
A: Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2. What is the machine warranty?
A: One year.After the warranty,we still provide technical support to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 10-20 days.
Q4. What is the delivery time?
A: 15-30days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes,just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7. How about the machine installation and training?
A: 1)We provide training in our factory for free
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9. How can you assure the machines’ quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10. Do you inspect machines or test running before packing?
A: Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11. What’s the payment term?
A: T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q13. How many years are you in printing field?
A: The Shanghai company since in 2008,the factory is more than 25 years.
Q14. How many clients do you have?
A: We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
