SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw

SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SJUV-760
Minimum Order Quantity: 1 Set
Price: US 58000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10 Set/Sets per Month
Contact Now
Type: Coating Machine Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V
Dimension: 16500x2050x2000mm Weight: 65000 KG
Warranty: 1 Year Model: SJUV-760
Max. Sheet Size: 760*595mm Min. Sheet Size: 290*270mm
Sheet Weight: 80~400g/m2 Speed: 6000pcs/h
Power: 45Kw UV Lamp: 3pcsx8Kw
IR Lamp: 18pcsx1Kw Paper Feed Heigh: 1050mm
Paper Stack Height: 920mm
Highlight:

Automatic Feeding Spot UV Coating Machine

,

Spot UV Coating Machine 45Kw

,

380V Spot UV Machine

SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 0
SJUV-760 Spot UV Coating Machine
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 1
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 2
Features
The whole machine has a one-key acceleration function.After the main machine accelerates ,the oven,paper delivery,feeder,and metering roller will all change according to the speed of the main machine.Use metering roller anilox roller to oil and then transfer to blanket.
Technical Parameters
SJUV-760 Spot UV Coating Machine
Model
SJUV-760
Max. Sheet Size
760*595mm
Min. Sheet Size
290*270mm
Sheet Weight
80~400g/m2
Speed
6000pcs/h
Power
45Kw
UV Lamp
3pcsx8Kw
IR Lamp
18pcsx1Kw
Paper feed heigh
1050mm
Paper stack height
920mm
Weight
65000kg
Dimension
16500x2050x2000mm
Configuration
Auto Feeding
1.Adopt high-speed offset press feeder (12000 sheets/hour) to ensure fast and stable operation
2.Paper photoelectric control, automatic lifting
3.Double protection feeder lifting safety
4.Using the latest Pre-stacker design for Continuous paper feeding,greatly save paper time and reduce the labor intensity of operators.
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 3
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 4 SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 5

Coating Section(basic oil coating head)

1.The anilox roller is used for oil supply, and the weight of oil is uniform. 80-120 mesh. You can choose different types of oil to achieve 3-10 grams of coating oil per square meter.
2.The closed scraper is used to circulate the oil inside the oil circuit without outflow of oil, which can effectively reduce oil loss and volatilization.
3.The main machine uses offset press to feed paper in its teeth, and paper of different thicknesses can work smoothly.
4.Photoelectric automatically control pressing to prevent oil on the back when there is no paper.

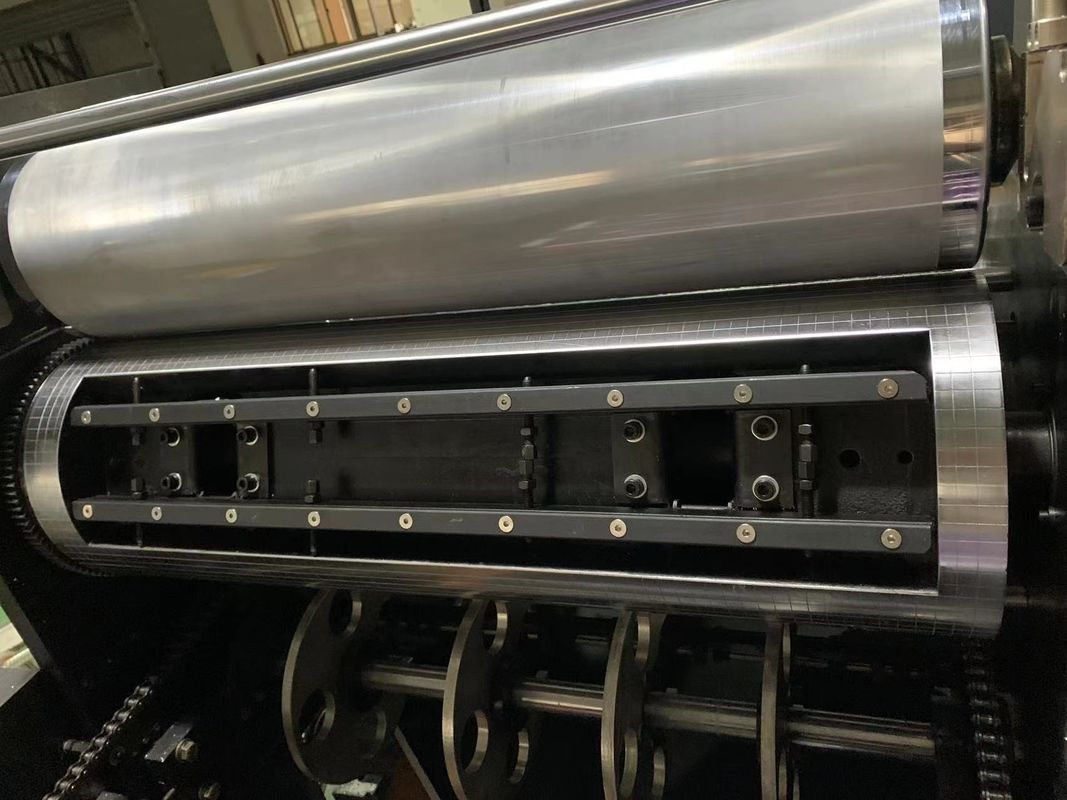

5.The plate roller is engraved with a network cable for easy alignment during plate pasting.
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 6 SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 7

IR Drying and UV Curing System

1.The length of the oven is 4300mm,which can effectively ensure the leveling and curing degree strength.
2.Equipped with UV and IR systems,which are controlled separately and cannot be used at the same time.
3.18 IR lamps and 3 UV lamps,IR lamps generally have a life of 2 years,UV lamps have a life of 800~1000H, and transformers have a life of more than one year.
4.The UV part adopts 8KW adjustable electronic light source,which has greatly improved safety performance than the traditional voltage source light source.The light source can adjust the brightness automatically as the change of machine's running speed,which can be changed from 30% to 100%.Thus the average energy consumption is saved by more than 30%.
5.Emergency stop or overheat protection device,when the emergency stop or the temperature inside exceeds 150 degrees,the protective cover will automatically rise to dissipate heat to prevent fire
6.Equipped with a ventilation system,under the UV curing box, there is a strong suction device composed of an exhaust fan and a wind box,which can extract ozone,dissipate heat and make the paper not easy to curl in the furnace, but can pass smoothly.
7.Equipped with automatic correction system,(double correction,double over-limit protection).The paper conveying adopts the imported Teflon conveyor belt,which can prevent ultraviolet rays,is strong and durable,does not support the paper,the electric eye detects the Teflon conveyor belt,and the automatic homing correction device.
8.The whole process of suction to ensure that the coating products will not float and do not pile up paper.The oven is equipped with iron wire protection to prevent the paper from floating on the paper and cause a fire.
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 8

Cooling System

After the paper dries out,it is quickly air-cooled to make the paper dry faster without anti-sticking.
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 9

Automatic Delivery System

1.Paper photoelectric control,automatic lifting
2.Double protection feeder lifting safety
3.Equipped with pneumatic paper flap function,you can set the number and time of the paper beat to ensure neatness
4.Disorderly paper automatic lowering function
Applications
The spot uv coating machine SJUV-760 is a new coating equipment with excellent performance,which integrates the advanced technologies at home and abroad.It can both local and overall coating,and has the advantages of high working speed,high gloss,thin and uniform coating layer.It is widely used in packaging decoration,book cover and other printing materials.
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 10
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 11
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 12
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 13
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 14
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 15
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 16
SJUV-760 Automatic Feeding Spot UV Coating Machine Electric Driven 380V 45Kw 17

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free;

2)We can send technicians (engineers) to your factory for installation and training.

You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:Shanghai company is 12 years old, the factory is more than 20years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
