Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min

Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min
Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRYFD-330T
Minimum Order Quantity: 1 Set
Price: US 218000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 1 Set/Sets per Month
Contact Now
Model: PRYFD--330T Cutting Length: 270-530mm
Bag Width: 120-330mm Bottom Width: 80-180mm
Paper Thickness: 60-150g/㎡ Paper Roll Width: 380-1050mm
Roll Paper Diameter: 1200mm Paper Core: 76mm
Patch Length: 152mm Patch Width: 50mm
Handle Distance: 75mm Rope Diameter: 3-5mm
Patch Paper Roll Width: 100mm Patch Paper Roll Diameter: 1200mm
Patch Paper Thickness: 100-135g/㎡ Production Speed For Bags Without Handles: 30-180bags/min
Production Speed For Bags With Handles: 30-150bags/min Cutting Knife: Sawtooth Cutting
Power Supply: 41.5KW Machine Weight: 15000kg
Machine Size: 14000x6000x2400mm
High Light:

Square Bottom Paper Bag Machine 180bags/Min

,

Paper Bag Forming Machine 380V

,

Gift Automatic Paper Bag Equipment 530mm

Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min 0

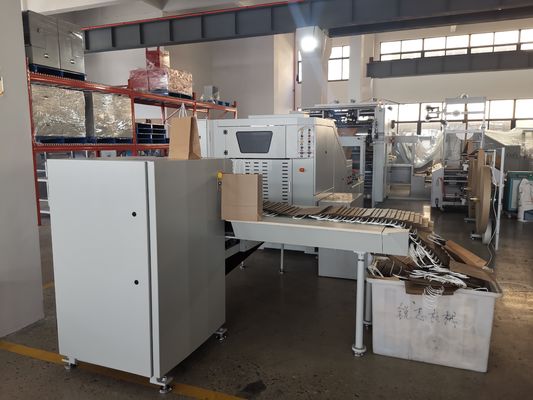

                            PRYFD-330T Square Bottom Paper Bag Machine
Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min 1
Features
Fully automatic square bottom paper bag machine is designed for the production of paper bags with twisted handles.It is suitable for mass production of shopping bags in industries such as food and clothing.The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit,pre-cutting of paper on position of rope,patch position gluing,handle pasting,and paper bag making.The paper bag making process consists of side gluing,tube forming,cutting, creasing,bottom gluing,bottom forming and bag delivery.This machine adopts German imported high-speed motion controller (CPU),which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve.It is the automatic square bottom paper bag equipment with handles inline preferred by the majority of printing and packaging manufacturers.
1.Use France SCHNEIDER touch screen human-computer interface,making the machine easy to operate and control.
2.Adopt Germany original LENZE PC control,integrated with optical fiber.Thus ensure stable and high speed running.
3.Adopt Germany original LENZE servo motor and German original SICK photoelectric eye correction, tracking printing bag accurately.
4.Raw material loading adopts hydraulic auto-lifting structure.Unwind unit adopts auto tension control.
5.Raw material unwinding EPC adopts Italy SELECTRA,reducing material alignment time.
Technical Parameters
Model
PRYFD--330T
Cutting length
270-530mm
Bag width
120-330mm
Bottom width
80-180mm
Paper Thickness
60-150g/㎡
Paper roll width
380-1050mm
Roll paper diameter
ф1200mm
Paper core
ф76mm
Patch length
152mm
patch width
50mm
Handle distance
75mm
Rope diameter
Ф3-5mm
Patch paper roll width
100mm
patch paper roll diameter
ф1200mm
patch paper thickness
100-135g/㎡
production speed for bags without handles
30-180bags/min
production speed for bags with handles
30-150bags/min
Cutting knife
Sawtooth cutting
Power Supply
380V 3Phase 41.5KW
Machine weight
15000kg
Machine size
14000x6000x2400mm
Main Electrical Components List
Control System
Name
QTY
Original
Brand
CPU Program Controller
1
Germany
LENZE
PLC Power module
1
Germany
LENZE
PLC Input module
4
Germany
LENZE
PLC High Speed capture Module
2
Germany
LENZE
PLC output module
3
Germany
LENZE
PLC analog output module
1
Germany
LENZE
PLC Authorization card
1
Germany
LENZE
Main power filter
1
Germany
LENZE
Human-computer touch screen interface
1
France
SCHNEIDER
Servo Motor
8
Germany
LENZE
Servo Motor Reducer
8
Germany
STOBER
Servo driver
4
Germany
LENZE
Bag forming frequency converter
1
Switzerland
ABB
Bag forming motor
1
Germany
Lenze
Photoelectric eye for printed-bag tracking
1
Germany
SICK
Low voltage electrical apparatus
1
Germany
EATON
Photoelectric sensor
1
Switzerland
BAUMER
Pneumatic component
1
Taiwan

Auto lubricating

China

Air conditioner for electric control box
1
China

Deviation correction and tension control system
Name
QTY
Original
Brand
EPC controller
1
Italy
SELECTRA
Servo motor for EPC
1
Italy
SELECTRA
Ultrasonic sensor
1
Italy
SELECTRA
Magnetic powder brake
1
taiwan
WEIZHENG
Automatic Tension System of Magnetic Powder
1
China

Automatic Hydraulic Feeding Motor
1
China

Feeding hydraulic cylinder
1
China

Transmission
Name
Qty
Original
MTED
Synchronous belt
China
BELDI
Synchronous wheel
China
MTED
Bearing
Germany
FALA
Guide roller
China
BAIXIAO
Gear
China
MTED
Glue position
Name
Qty
Original
MTED
Bottom glue (bottom-sealing white latex)
1
China
MTED
Motor for bottom glue evening
2
China

Pneumatic auto glue filling valve
2
China

Glue Glue Position Detection
1
Switzerland
BAUMER
Spraying gun for center sealing
(dense adjust Glue gun )
1
China
MTED
High-pressure glue barrel for white latex
2
China
MTED
Handle Pasting Unit
Name
Qty
Original
MTED
EPC controller
2
Italy
SELECTRA
Servo motor for EPC
2
Italy
SELECTRA
Ultrasonic sensor
2
Italy
SELECTRA
Hot Melt Glue Device
1
China

Hot Melt Glue Gun
2
China

Hot Melt Glue Gun
2
China

Applications
Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min 2
Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min 3
Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min 4
Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min 5
Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min 6
Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min 7
Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min 8
Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min 9
Fully Automatic Paper Bag Forming Machine For Square Bottom Gift 180bags/Min 10

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
