460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw

460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw
460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw
460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw 460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw 460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: 460RS
Minimum Order Quantity: 1 Set
Price: US 295000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 1 Set/Sets per Month
Contact Now

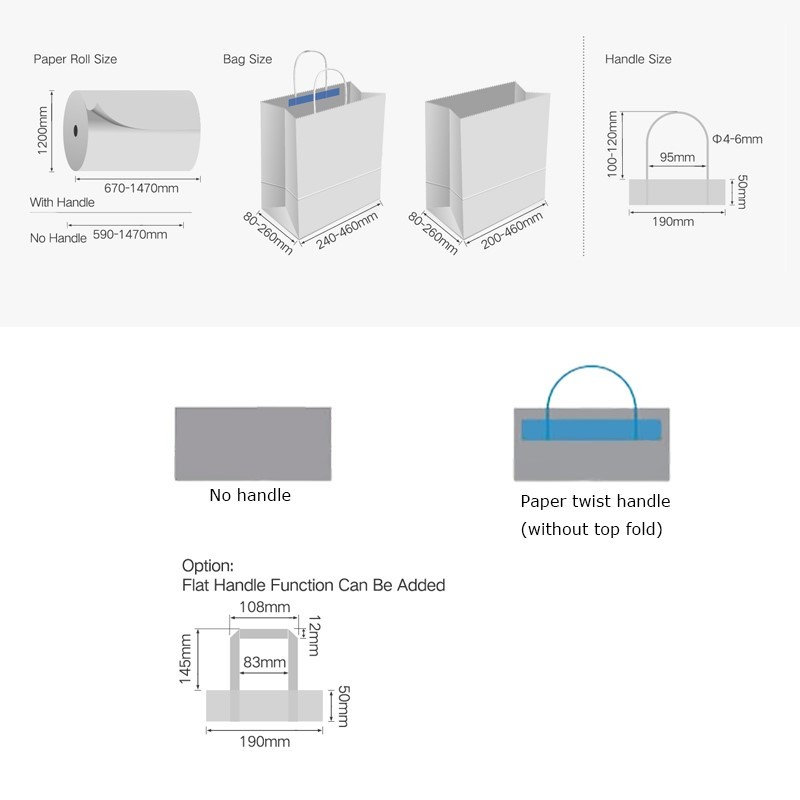

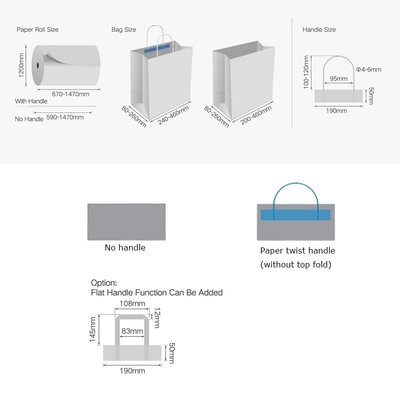

Paper Roll Width: 670-1470mm Max.Paper Roll Diameter: Φ1200mm
Core Diameter: Φ76mm (3″) Paper Thickness: 90--170g/m²
Bag Body Width: 240-460mm Paper Tube Length: 290-710mm
Bag Bottom Size: 80-260mm Handle Rope Height: 100-120mm
Handle Rope Diameter: Φ4-6mm Handle Patch Length: 190mm
Paper Rope Center Distance: 95mm Handle Patch Width: 50mm
Handle Patch Roll Diameter: Φ1200mm Handle Patch Roll Width: 100mm
Paper Patch Thickness: 100-180g/m² Max Production Speed: 120bags/min
Total Power: 42KW Overall Diamension: 14500*6000*3100
Total Weight: 19000KGS
Highlight:

Roll Paper Bag Making Machine 42kw

,

Fully Automatic 460rs Paper Bag Equipment

,

Automatic Feeding Bag Making Machine 120bags/Min

Products Description
                                                           460RS Paper Bag Making Machine460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw 0

Features

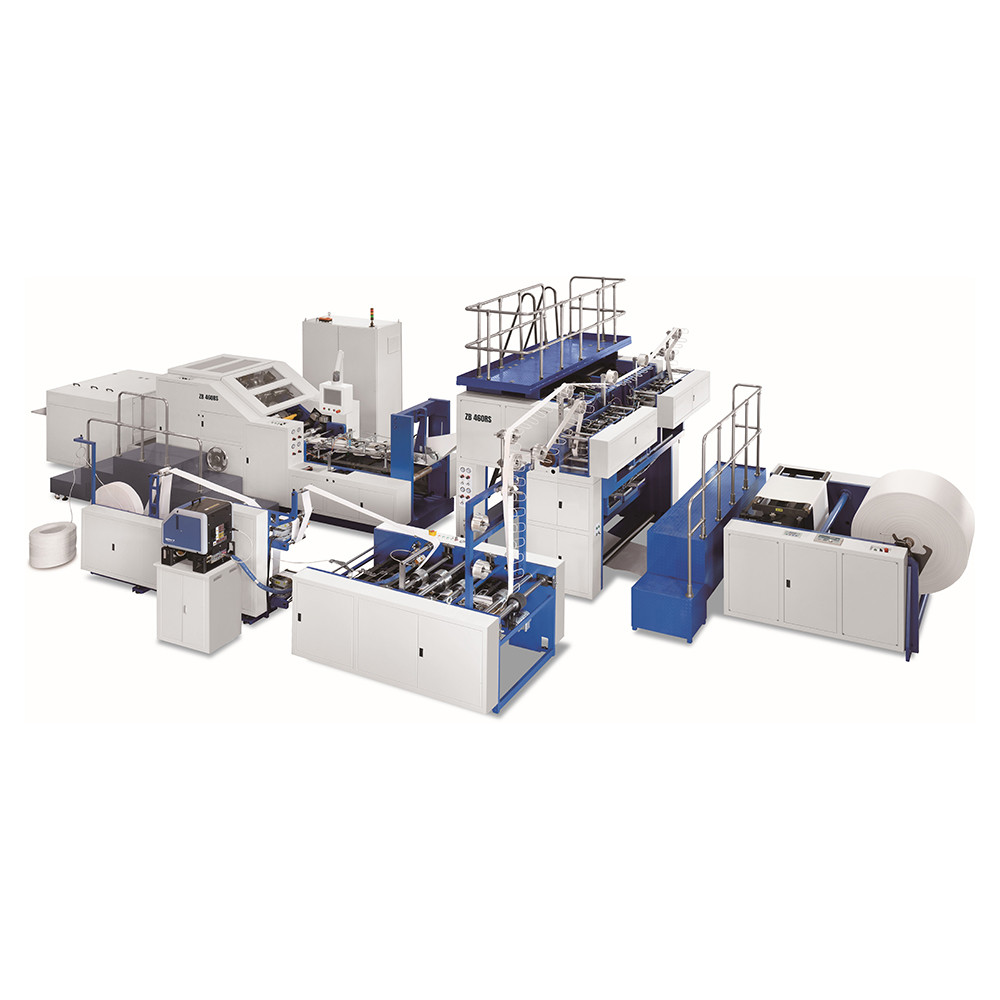

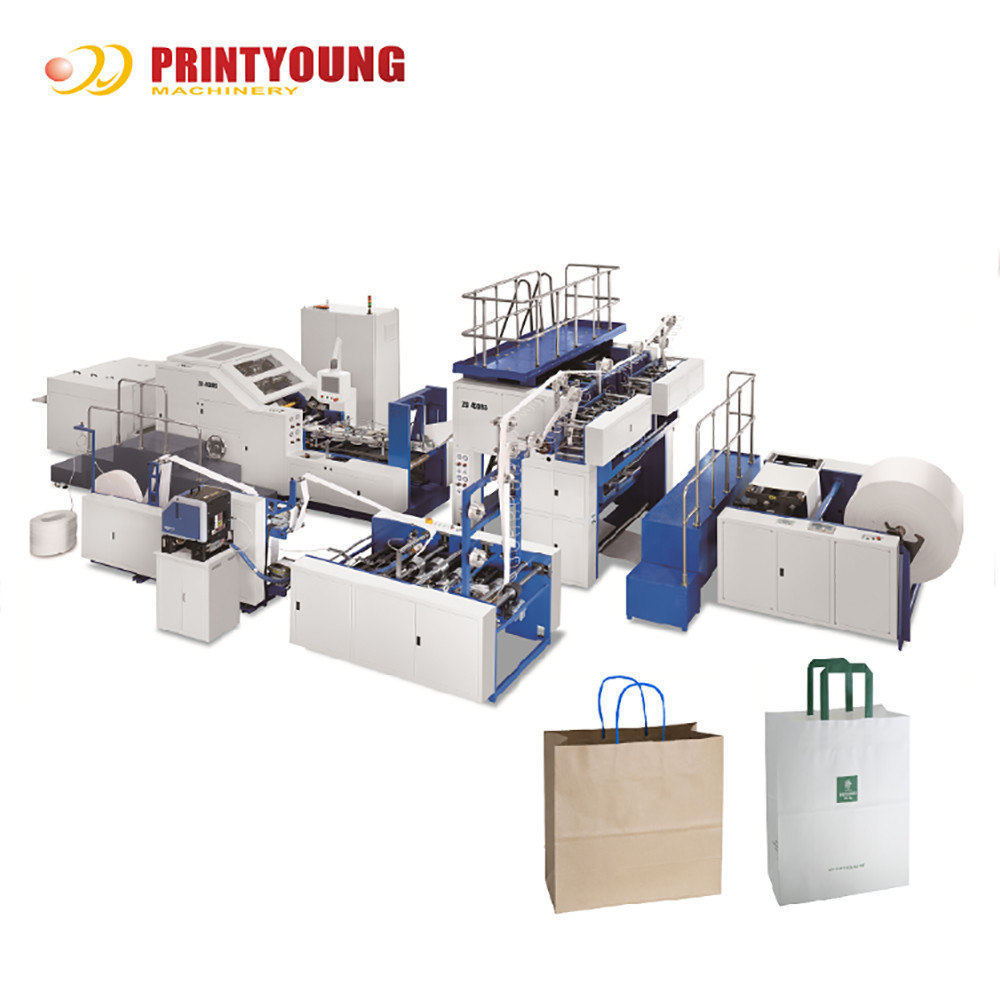

460RS Fully automatic roll feeding paper bag making machine, use roll paper as raw material, combined with handle reinforced paper and paper twist rope, to realize fully automatic production of paper bags with twist rope handle, this machine adopts PLC and motion controller, servo drive control system, intelligent operation interface, realize high speed production and high efficiency. It is an ideal equipment for producing shopping bags for food and clothing packaging.
The production process of this machine is roll feeding, paper handle pasting, tube forming, tube cutting, bottom creasing, bottom gluing, bottom pasting, output.
Technical Parameters
460RS Paper Bag Making Machine
Paper Roll Width
670-1470mm
Max.Paper Roll Diameter
Φ1200mm
Core Diameter
Φ76mm (3″)
Paper Thickness
90--170g/m²
Bag Body Width
240-460mm
Paper Tube Length
290-710mm
Bag Bottom Size
80-260mm
Handle Rope Height
100-120mm
Handle Rope Diameter
Φ4-6mm
Handle Patch Length
190mm
Paper Rope Center Distance
95mm
Handle Patch Width
50mm
Handle Patch Roll Diameter
Φ1200mm
Handle Patch Roll Width
100mm
Paper Patch Thickness
100-180g/m²
Max Production Speed
120bags/min
Total Power
42KW
Overall Diamension
14500*6000*3100
Total Weight
19000KGS
460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw 1
460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw 2
1.Roll loading -> 2.Cutting -> 3.Handle gluing -> 4.Handle pasting -> 5.Side gluing/Tube forming
460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw 3
11.Bag collection<- 10.Bottom gluing<- 9.Bottom folding<- 8.Creasing<- 7.Tube cut off<- 6.Gusset forming
Note: the blue area in the sketch above refers to the glue
Customer
460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw 4
Company Profile
460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw 5
460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw 6
460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw 7
Why Choose Us
460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw 8
Product packaging
460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw 9
460rs Thickness Automatic Roll Sheet Feeding Paper Bag Making Machine 120bags/Min 42kw 10
FAQ
Q1: Are you a manufacturer or a trading company?
A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.
Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 10-20 days.
Q4. What is the delivery time?
A: 15-30days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..
Q7. How about the machine installation and training ?
A: 1)We provide training in our factory for free
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
Q9. How can you assure the machines’ quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will
give spare parts for free if machine has any problem.
Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material.
Q11. What’s the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.
Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q13. How many years are you in printing field?
A: Shanghai company is 12 years old, the factory is more than 20years.
Q14. How many clients do you have?
A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
