PRY-780 10 Inch Computer Programmed Paper Cutting Machine For Printing Press

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-780
Minimum Order Quantity: 1 Set
Price: US 10000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Type: Paper Cutting Machine Automatic Grade: Automatic
Voltage: 380V Dimension: 2*2.1*1.5m
Weight: 2300Kg Warranty: 1 Year
Key Selling Points: High Accuracy Cutting Width: 780mm
Cutting Length: 780mm Cutting Height: 120mm
Front Table Length: 610mm Front Table Height: 930mm
Cutting Speed: 42times/min
High Light:

Computer Programmed Die Paper Cutter

,

Printing Press Paper Die Cut Machine

,

Die Cut Paper Machine 380V

PRY-780 10 Inch Computer Programmed Paper Cutting Machine For Printing Press 0

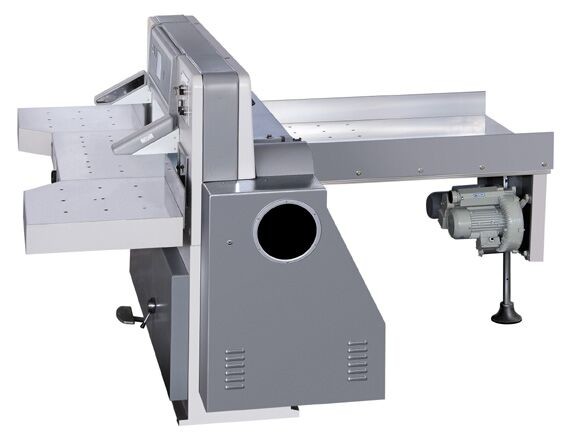

                                                              Pry-780 Paper Cutting Machine
PRY-780 10 Inch Computer Programmed Paper Cutting Machine For Printing Press 1

Introduction

1. High quality casting part made by resin bonded sand way.
2. Chrome-plated slot-less working table installed with double imported linear guide and air cushion.
3. Mechanical assistance device for knife replacement
4. Overload protection safety device
5. Infrared photoelectric protection device
6. Fluorescent lamp and cutting line indicator
7. Ejective device
8. Use imported components in Hydraulic system like Atos and Hassan
9. Use imported electronic units like SIEMENS, TOSHIBA, ORMON, LG
10.PLC control 11.Use imported Mechanic components like NSK Bearing
12.Imported Motor and motor made in china is optional
Features
* 1. High quality casting part made by resin bonded sand way.
* 2. Four optional computer system.( high capacity of program, precise position resolution, strong malfunction diagnose and misoperation preserve function)
* 3. Chrome-plated slot-less working table installed with double imported linear guide and air cushion.
* 4. Mechanical assistance device for knife replacement
* 5. Overload protection safety device
* 6. Infrared photoelectric protection device
* 7. fluorescent lamp and cutting line indicator
* 8. Ejective device
* 9. Use imported components in Hydraulic system like Atos and Hassan
* 10. Use imported electronic units like SIEMENS, TOSHIBA, ORMON, LG
* 11. PLC control
* 12. Use imported Mechanic components like NSK Bearing
* 13. Imported Motor and motor made in china is optional
* 14. Single Hydraulic and Double Hydraulic is optional
Technical Parameters
Pry-780 paper cutting machine
Model
780
920
1150
1370
The Code Of Way Of Transmission
M
M
M
M
Cutting Width (mm)
780
940
1150
1370
Cutting Length (mm)
780
940
1150
1370
Cutting Height (mm)
120
120
160
160
Front Table Length (mm)
610
610
700
700
Front Table Height (mm)
930
930
930
930
Power Consumption Of Main Motor (kW)
3
3
5.5
5.5
Max. Clamping Pressure (dan)
3000
3500
5000
5000
Cutting Speed (times/min)
42
42
42
42
Net Weight (kg)
2000
2300
3800
4500
Gross Weight (kg)
2200
2500
4000
4700
Overall Dimension L × W × H (m)
2×2.1×1.5m
2.3×2.1×1.5m
2.5×2.7×1.6m
2.8×3.2×1.7m
Packing Size L × W × H (m)
2.3×1.42×1.9m
2.3×1.42×1.9m
2.65×1.62×1.9m
2.85×1.62×2m
Configuration
PRY-780 10 Inch Computer Programmed Paper Cutting Machine For Printing Press 2 PRY-780 10 Inch Computer Programmed Paper Cutting Machine For Printing Press 3
PRY-780 10 Inch Computer Programmed Paper Cutting Machine For Printing Press 4 PRY-780 10 Inch Computer Programmed Paper Cutting Machine For Printing Press 5

PRY-780 10 Inch Computer Programmed Paper Cutting Machine For Printing Press 6
PRY-780 10 Inch Computer Programmed Paper Cutting Machine For Printing Press 7
PRY-780 10 Inch Computer Programmed Paper Cutting Machine For Printing Press 8
PRY-780 10 Inch Computer Programmed Paper Cutting Machine For Printing Press 9
PRY-780 10 Inch Computer Programmed Paper Cutting Machine For Printing Press 10
PRY-780 10 Inch Computer Programmed Paper Cutting Machine For Printing Press 11
PRY-780 10 Inch Computer Programmed Paper Cutting Machine For Printing Press 12

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 50% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
