| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PRINTYOUNG |
| Certification: | CE |
| Model Number: | PRY-425 |
| Minimum Order Quantity: | 1 Set/Sets |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25sets/month |
| Max. Paper Size: | 483*640mm | Min. Paper Size: | 210*250mm |
|---|---|---|---|
| Max. Printing Area: | 460*635mm | Plate Size: | 504*645mm |
| Blanket Size: | 585*650mm | Machine Dimension: | 6850*2615*1800mm |
| Highlight: | 0.15mm Plate Offset Printing Machine,10000IPH Offset Printing Machine,950mm Feeding Offset Printing Machine |
||

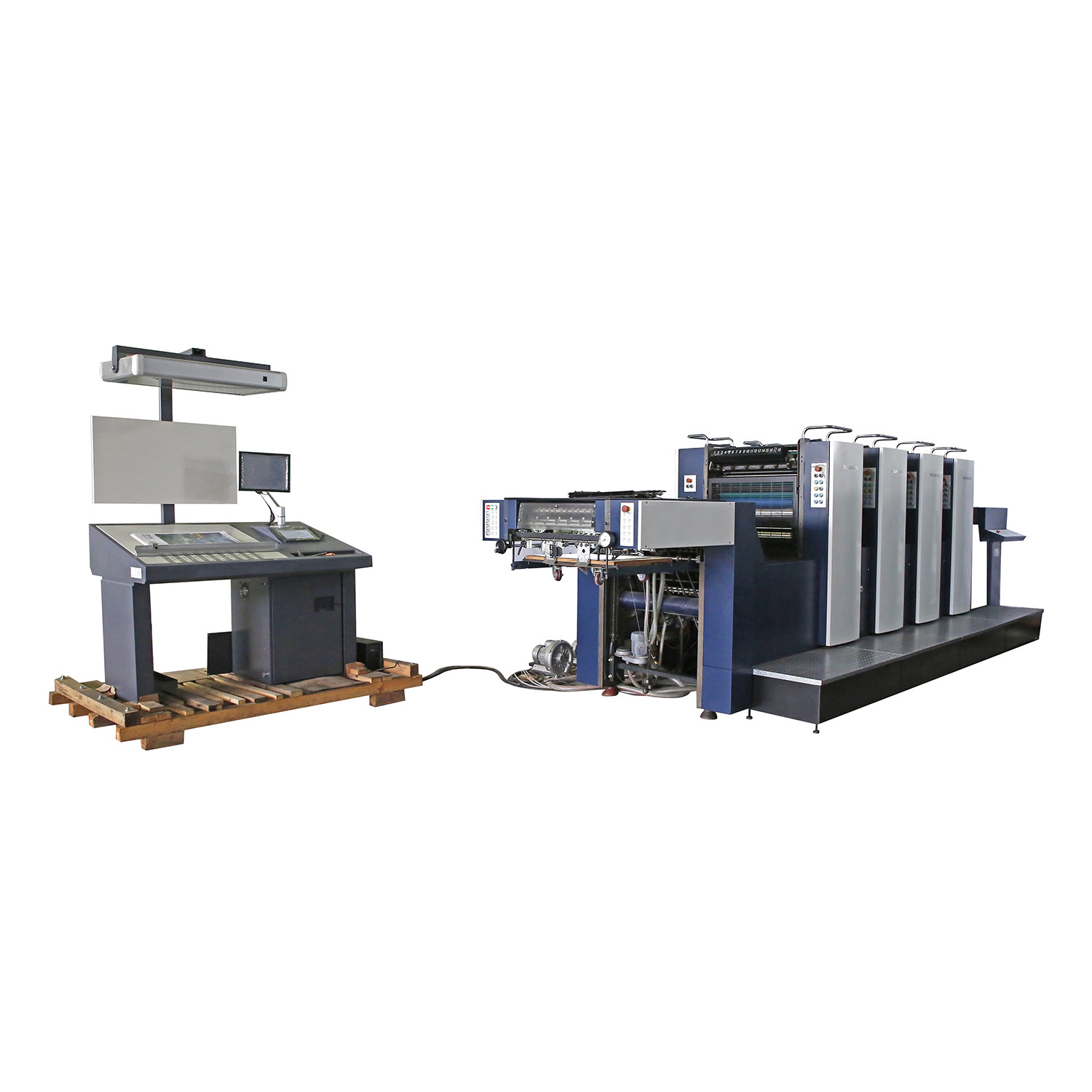

PRY-425 Four colors offset printing machine
Features
Technical Parameters
| Model No. | PRY-425 |
| Printing speed | 3000-10000IPH |
| Max. paper size | 483×640mm |
| Min. paper size | 210×250mm |
| Max. printing area | 460×635mm |
| Plate size | 504×645mm |
| Blanket size | 585×650mm |
| Blanket+packing thickness | 1.9mm |
| Pre-stacker | 1850mm |
| Feeding capability | 950mm |
| Delivery capability | 830mm |
| Main power | 11KW |
| Machine dimension | 6850×2615×1800 |
| Machine weight | 12000KG |
Configuration
|
Continuous alcohol dampening |
New ink system |
Down swing feeder |
Electric Water/Ink roller |
|
automatic plate change |
Pull level ink fountain |
Remote ink control |
Remote water control |
|
Pneumatic ink supply |
Pneumatic water supply |
Pneumatic braking |
0.15mm thin plate |
|
Medium lengthened delivery |
Inspection table(10.4") |
Sheet deculer |
Vacuum braking rollers |
|
Powder spray |
Blow fans |
Environment-friendly fountain |
CCD plate punch(optional) |
|
UV printing(optional) |
Lever-style parted ink fountain |
MDS ink remote control system(optional) |
CIP3 separation pre-setting system(optional) |
Product Sample
