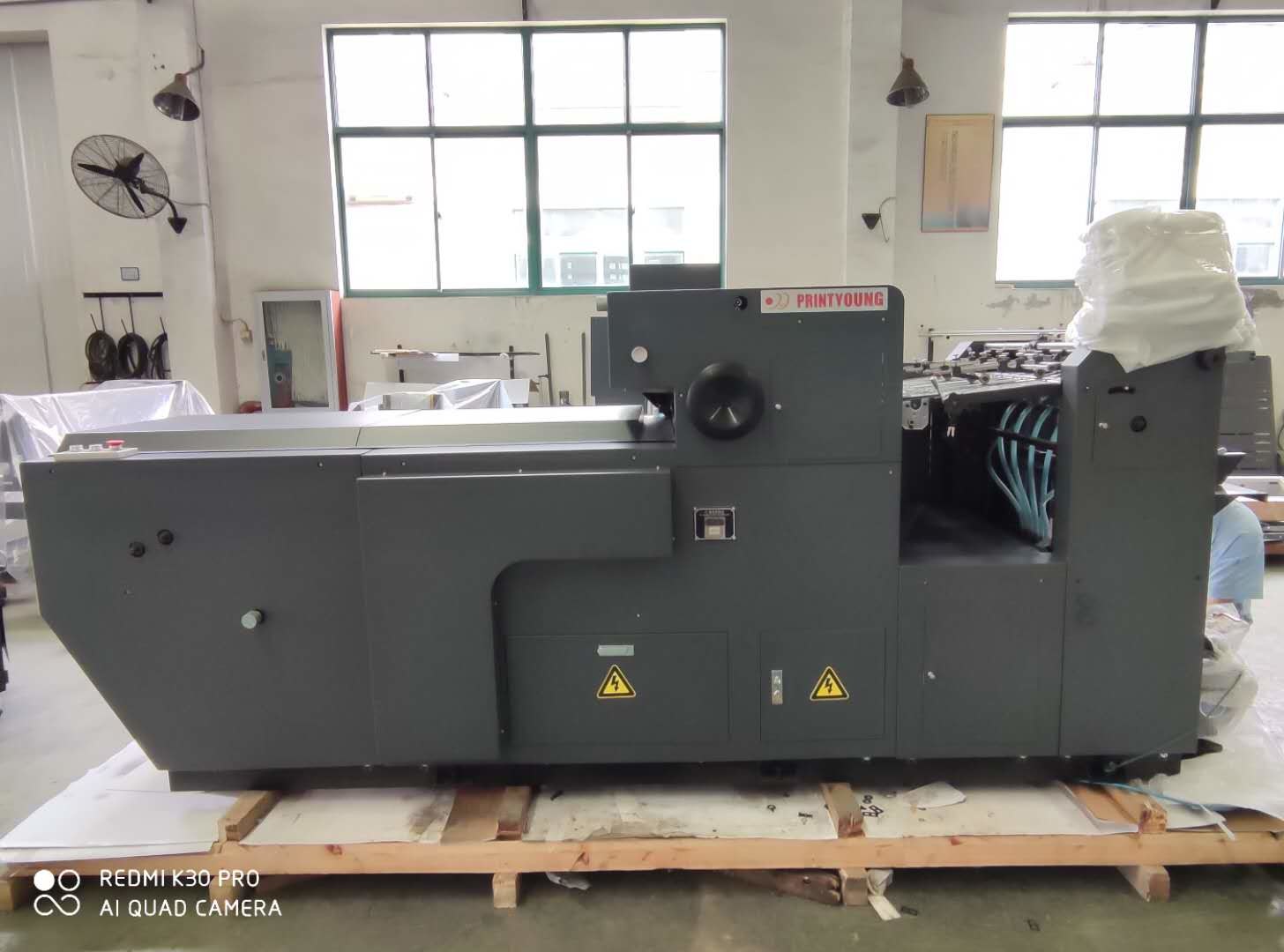

Automatic High Speed Spot Uv Varnish Machine SGJ-UI620W

Basic Information
Place of Origin: CHINA
Certification: CE
Model Number: SGJ-UI620W
Minimum Order Quantity: 1 Set/Sets
Packaging Details: Wooden Case
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300set per year
Max. Coating Size: 440×605mm Max. Paper Size: 450×620mm
Min. Paper Size: 210×260mm Paper Weight Range: 80~350g/m2
Max. Speed: 4500p/hour No. X UV Lamp: 2×5.6kw
No. X IR Lamp: 2×1.8kw Dimension: 3000×1100×1400mm
Total Power: 16kw Total Weight: 1350kg
High Light:

Spot Uv Varnish Machine


High Speed Uv Varnish Machine


Automatic Uv Varnish Machine

SGJ-UI620W Automatic Spot UV Coating machine



This machine is used for both flood and spot coating with both UV or water-based varnish on light or thick paper with accurate and even spot coating register. It is suitable for spot or full coating on words and graphics in books, advertisement sheets, color paperboard to enhance its dimensional quality and surface protection.

Integrated control with PLC can provide easy operation & trouble shot during production. Fully automatic working process from feeding to delivery. CE Safety requirement is considered and widely used in the machine design. Well designed inner circulation frame can prevent leakage of UV ray & exhausted air, which will satisfy the environmental requirement. Famous international brand of components like bearing, electrical parts are used in the critical functioning part of the machine.

With its advantage of small & smart industrial design, easy moving function on wheel, accurate spot coating & perfect coating result, it is suitable for small sized printing product. And it is also much recommended to be used as a post printing equipment within a digital printing solution.


Technical parameters:

Max. coating size


Max. paper size


Min. paper size


Paper weight range


Max. speed


No. x UV lamp


No. x IR lamp




Total power


Total weight



Packaging and Shipping:

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Product details:


1. Feeder

Multi-point high speed feeding with easy operation & adjustment.

2. Grippers transportation system

Reverse rotating roller control can lead to better varnish balancing.

Pneumatic varnish pump provides stable varnish supplement.

3. IR drying

Function for coating with water-based varnish.

4. UV curing

High efficiency curing system with cooing system inside.

5. Stacker

Flipable safety cover can also provide easy operation for user.

Jogger with fan cooling can ensure the order delivery.

Product packaging:


Automatic High Speed Spot Uv Varnish Machine SGJ-UI620W 0

Automatic High Speed Spot Uv Varnish Machine SGJ-UI620W 1
